Integrated SFP, Wi-Fi 6, and Enterprise Protection for Branch Offices
The FortiWiFi 80F-2R (FWF-80F-2R-A-BDL-809-36) is a high-performance branch firewall designed to deliver flexible connectivity, integrated wireless, and centralized security management. Powered by the Fortinet SP4 ASIC, this compact appliance combines wired, fiber-ready, and Wi-Fi 6 networking to support modern distributed environments.
This model features 2x GE RJ45/SFP shared media ports, allowing seamless deployment with either copper or fiber uplinks for WAN or LAN connectivity. Integrated dual-band Wi-Fi 6 (802.11ax), combined with a dedicated scanning radio, enables reliable wireless access while supporting secure SD-WAN and branch network operations.
Key Benefits
- 3-Year Enterprise Protection: FortiGuard security services provided in alignment with the Enterprise Protection bundle entitlement.
- Flexible SFP Connectivity: Two GE RJ45/SFP shared media pairs support copper or fiber connections for adaptable branch deployments.
- Integrated Wi-Fi 6: Dual-band 802.11ax wireless with an additional scanning radio delivers reliable and high-speed wireless connectivity.
- Powered by SP4 ASIC: Hardware acceleration supports consistent firewall and SD-WAN performance for branch environments.
- SD-Branch Ready: Includes two GE RJ45 FortiLink ports (default) to extend network access and centralized management.
- Hardware-Based Security: Integrated Trusted Platform Module (TPM) enhances device integrity and cryptographic key protection.
Ideal Use Cases
- Branch Offices: Consolidates firewall, SD-WAN, wired, and wireless connectivity into a single edge device.
- Retail Locations: Supports flexible WAN options and secure Wi-Fi connectivity for distributed sites.
- Small to Medium Businesses: Enterprise-grade firewall hardware with integrated Wi-Fi 6 in a compact form factor.
Technical Specifications Summary
- Firewall Throughput (UDP): 10/10/7 Gbps (1518/512/64 byte)
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- Wireless: Dual Wi-Fi radio (2.4 GHz and 5 GHz) with 802.11a/b/g/n/ac/ax support plus a dedicated scanning radio

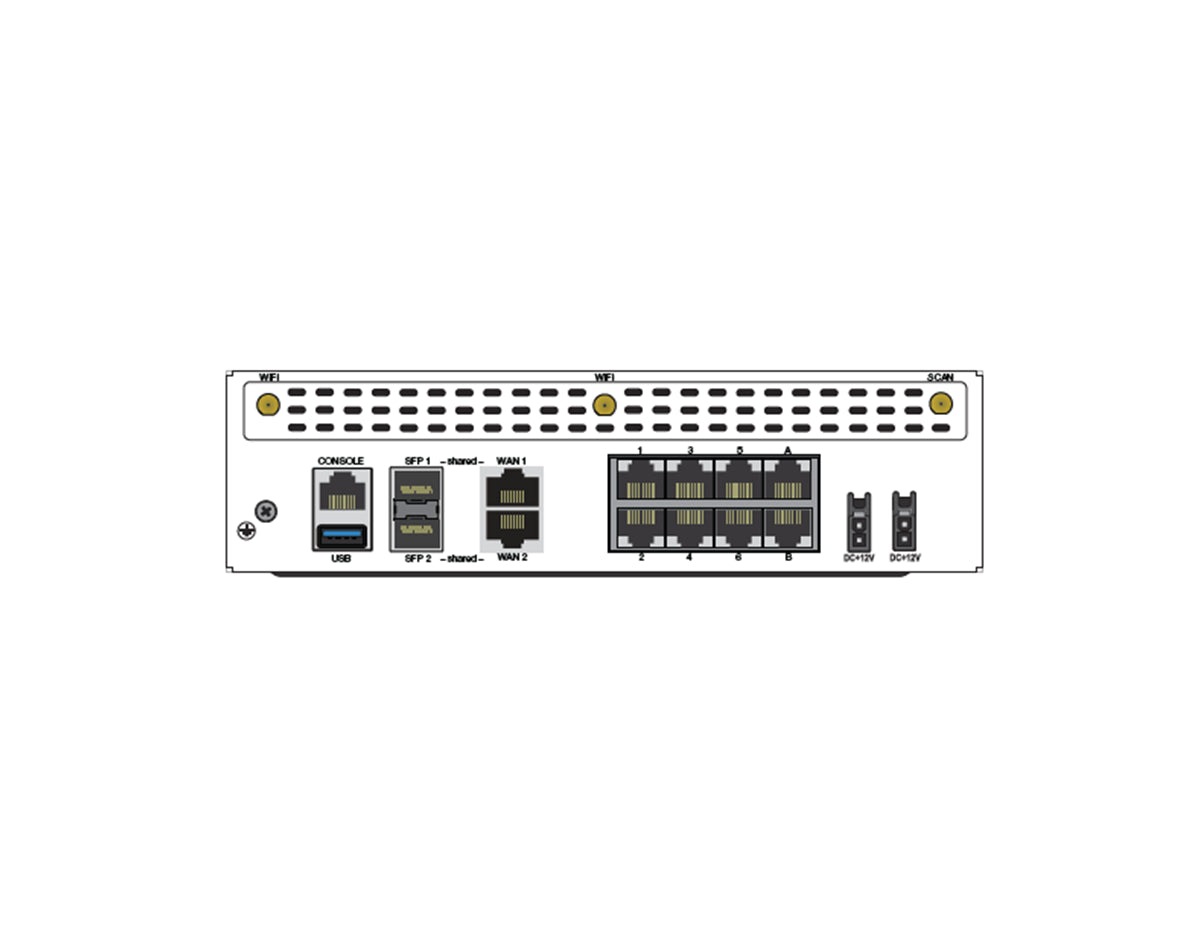

- Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
- Physical: 60 x 216 x 178 mm, 1.5 kg
Upgrade Your Network Security
Deploy flexible wired and wireless connectivity at the network edge with the FortiWiFi 80F-2R and 3-Year Enterprise Protection bundle.
