Integrated SFP, Wi-Fi 6, and Secure SD-WAN for Branch Offices
The FortiWiFi 80F-2R (FWF-80F-2R-A) is a high-performance desktop firewall designed for modern branch environments that require flexible connectivity and integrated wireless. Powered by the Fortinet SP4 ASIC, it delivers consistent firewall performance while combining wired, fiber-ready, and Wi-Fi 6 networking in a compact form factor.
With 2x GE RJ45/SFP shared media pairs, the FortiWiFi 80F-2R supports both copper and fiber uplinks, enabling adaptable WAN and LAN deployment options. Integrated dual-band Wi-Fi 6 with a dedicated scanning radio provides reliable wireless access while supporting secure network operations across distributed sites.
Key Benefits
- Flexible SFP Connectivity: Two GE RJ45/SFP shared media pairs support copper or fiber connections for adaptable network design.
- Integrated Wi-Fi 6: Dual-band 802.11ax wireless with an additional scanning radio delivers high-speed and resilient wireless access.
- Powered by SP4 ASIC: Hardware acceleration enables consistent firewall and SD-WAN performance for branch deployments.
- SD-Branch Ready: Includes two GE RJ45 FortiLink ports (default) to extend network connectivity to access-layer devices.
- Compact Deployment Options: Desktop, wall-mount, or rack-tray installation flexibility for space-constrained environments.
- Hardware-Based Security: Integrated Trusted Platform Module (TPM) enhances device integrity and cryptographic protection.
Ideal Use Cases
- Branch Offices: Consolidates wired, fiber, and wireless connectivity into a single edge device.
- Retail Locations: Supports flexible WAN options and reliable Wi-Fi connectivity for distributed sites.
- Small to Medium Businesses: Enterprise-grade firewall hardware with integrated Wi-Fi 6 in a compact form factor.
Technical Specifications Summary
- Firewall Throughput (UDP): 10/10/7 Gbps (1518/512/64 byte)
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- Wireless: Dual Wi-Fi radio (2.4 GHz and 5 GHz) with 802.11a/b/g/n/ac/ax support plus a dedicated scanning radio

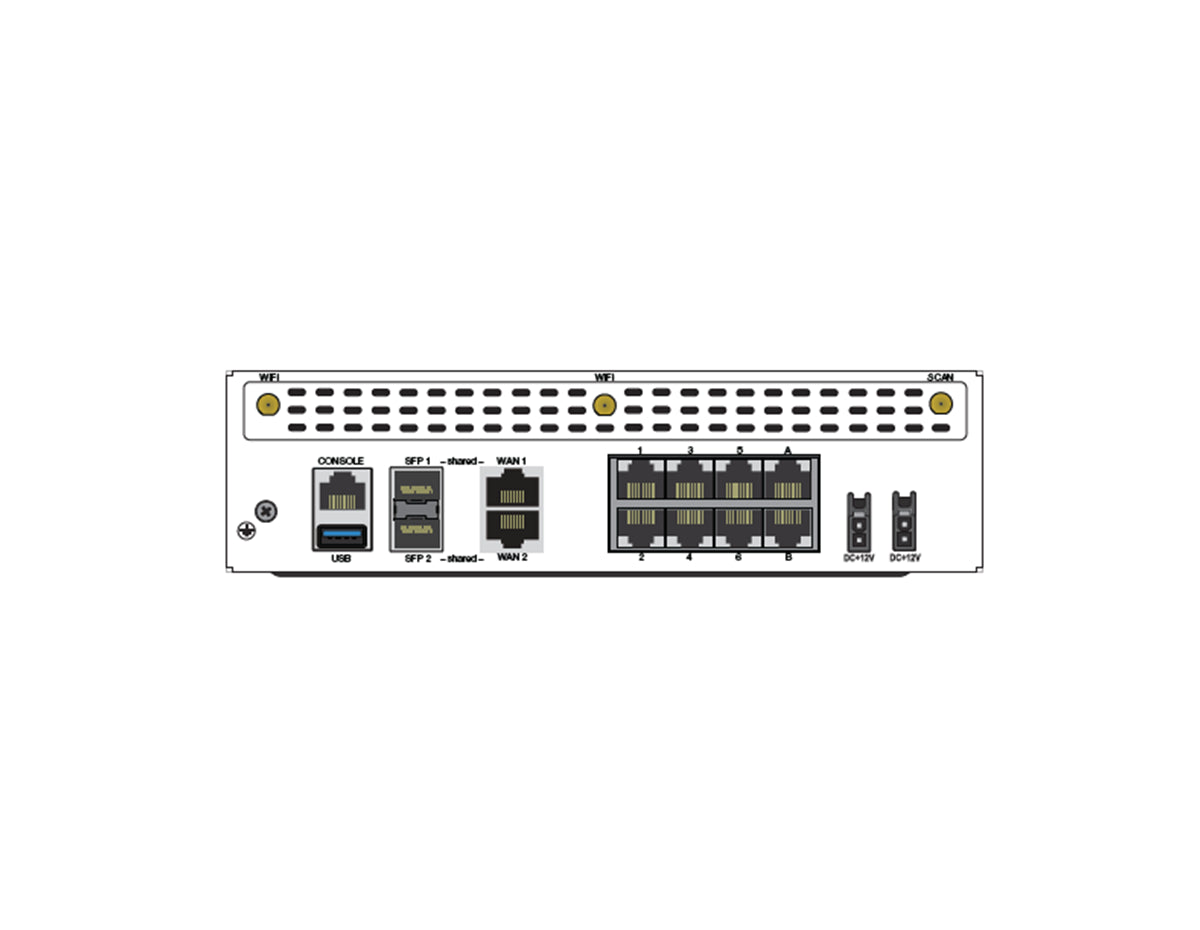

- Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
- Physical: 60 x 216 x 178 mm, 1.5 kg
Upgrade Your Network Infrastructure
Deploy flexible wired and wireless connectivity at the network edge with the FortiWiFi 80F-2R.
