Integrated SFP, Wi-Fi 6, and Unified Threat Protection for Branch Offices

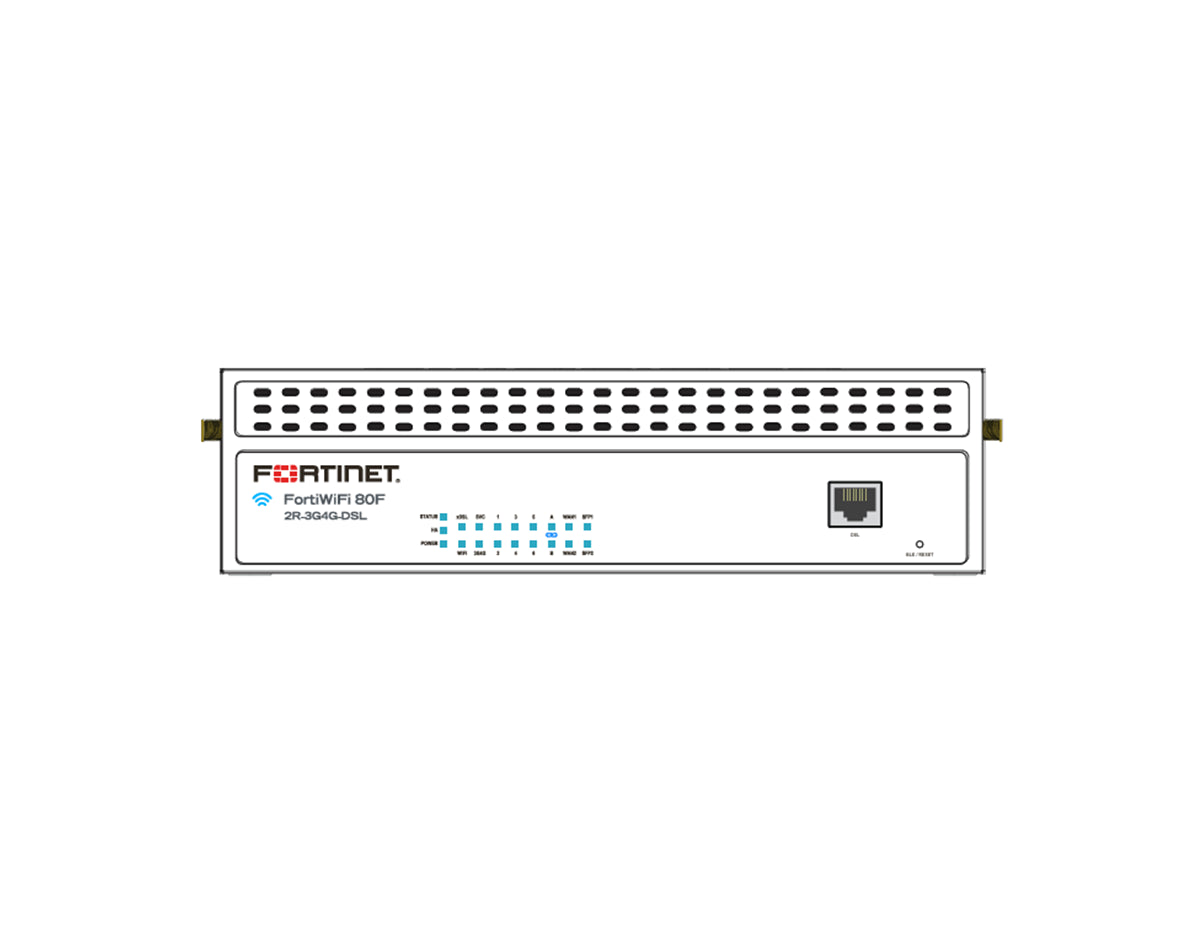

The FortiWiFi 80F-2R-3G4G-DSL is Fortinet's most highly converged desktop appliance, designed for resilient Secure SD-WAN at branch offices. This 3-Year Unified Threat Protection (UTP) bundle fortifies security with essential services like IPS, Anti-Malware Protection, and web security controls. Powered by the SP4 ASIC, it integrates four distinct WAN connectivity options: two flexible GE SFP/RJ45 ports, an embedded DSL modem, and a redundant 3G/4G/LTE cellular modem with dual SIM slots.
This appliance eliminates the need for external modems, cellular routers, and wireless access points, drastically simplifying the infrastructure stack. It ensures maximum uptime and business continuity through automatic failover across fiber, broadband, and cellular networks, all while providing high-speed Wi-Fi 6 access and comprehensive security protection.
Key Benefits
- 3-Year Unified Threat Protection: Includes a Unified Threat Protection (UTP) bundle for broad threat defense.
- Quad-WAN Resiliency: Integrates SFP/RJ45 ports, a dedicated DSL port, and an embedded 3G/4G/LTE cellular modem with two SIM slots, guaranteeing connectivity redundancy.
- Integrated Wi-Fi 6: Features built-in dual-band 802.11ax wireless with a dedicated scanning radio, providing secure, high-speed access for users and IoT devices.
- Powered by SP4 ASIC: Delivers up to 10 Gbps firewall throughput and accelerates IPsec VPN performance up to 6.5 Gbps for efficient direct internet access.
- Simplified SD-Branch: Reduces complexity and footprint by consolidating a firewall, router, switch, cellular modem, DSL modem, and access point into one device.
- Trusted Platform Module (TPM): Features dedicated hardware to protect cryptographic keys, enhancing physical security.
Ideal Use Cases
- Remote/Branch Offices: Perfect for mission-critical branches requiring DSL primary access with automatic 4G/LTE failover and integrated Wi-Fi 6.
- Temporary Sites: Ideal for pop-up stores or construction sites where reliable broadband access is unavailable, relying on cellular connectivity.
- Small to Medium Businesses (SMB): Provides enterprise-grade protection and high-speed Wi-Fi 6 in a cost-effective desktop form factor.
Technical Specifications Summary
- IPv4 Firewall Throughput (1518/512/64 byte UDP): 10/10/7 Gbps
- IPS Throughput (Enterprise Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Mix): 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps
- Firewall Latency (64 byte UDP): 3.23 μs
- Concurrent Sessions (TCP): 1.5 Million
- New Sessions/Second (TCP): 45,000

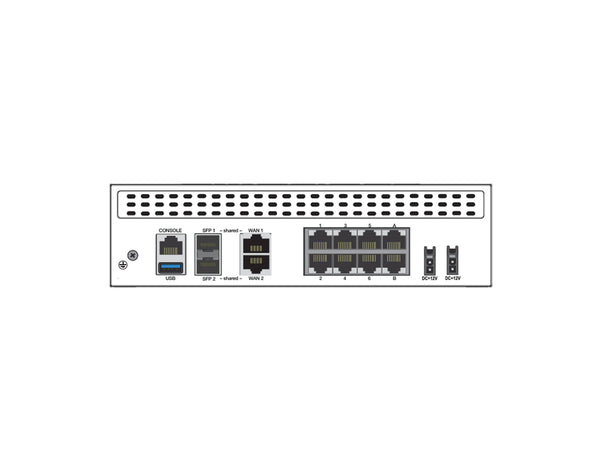

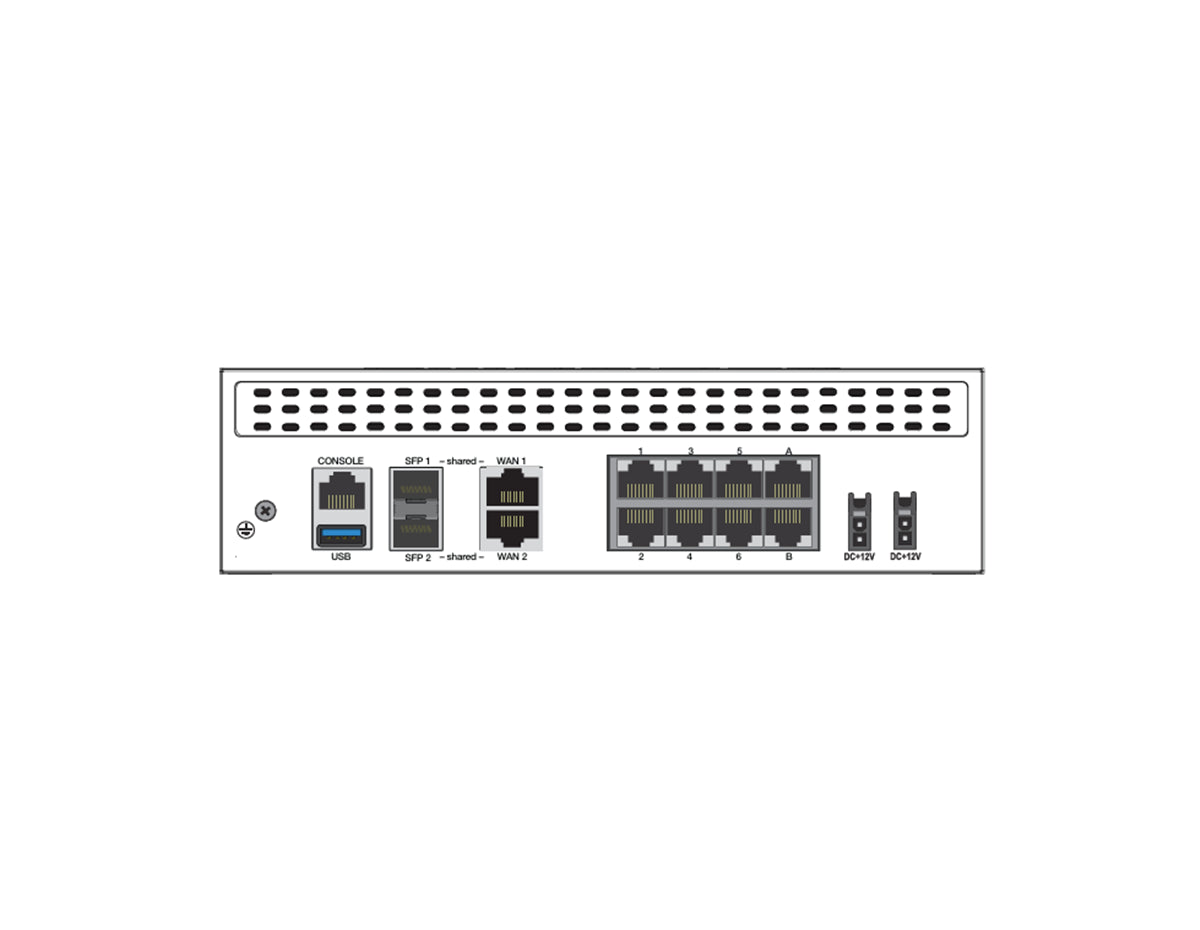

- Interfaces: 2x GE RJ45/SFP Shared Media Pairs, 6x GE RJ45 Internal Ports, 2x GE RJ45 FortiLink Ports (Default), 1x DSL RJ11, 3G4G/LTE (2x Nano SIM)
- Power & Acoustics: 12V DC, 5A input; 28.07 W / 34.31 W (avg/max) power consumption; 24.14 dBA noise level
Upgrade Your Network Security
Ensure maximum uptime and convergence with the FortiWiFi 80F-2R-3G4G-DSL and 3-Year Unified Threat Protection bundle.
