Ultimate Branch Continuity with Integrated Multi-WAN and Wi-Fi
The FortiWiFi 80F-2R-3G4G-DSL is Fortinet's most highly converged desktop appliance, designed for resilient Secure SD-WAN at branch offices. This 1-Year Enterprise Protection bundle maximizes security with comprehensive FortiGuard AI-Powered Security Services. Powered by the SP4 ASIC, it integrates multiple WAN connectivity options: two flexible GE RJ45/SFP shared media ports, an embedded DSL modem, and a redundant 3G/4G/LTE cellular modem with dual SIM slots.
This appliance eliminates the need for external modems, cellular routers, and wireless access points, drastically simplifying the infrastructure stack. It ensures maximum uptime and business continuity through automatic failover across fiber, broadband, and cellular networks, all while providing integrated wireless access and comprehensive security protection.
Key Benefits
- 1-Year Enterprise Protection: Includes a 1-year Enterprise Protection bundle for FortiGuard AI-Powered Security Services.
- Quad-WAN Resiliency: Integrates 2x GE RJ45/SFP shared media ports, a dedicated DSL (RJ11) port, and an embedded 3G/4G/LTE cellular modem with two SIM slots for strong connectivity redundancy.
- Integrated Wireless: Built-in wireless interface supporting 802.11a/b/g/n/ac/ax for branch connectivity.
- Powered by SP4 ASIC: Delivers up to 10 Gbps firewall throughput and accelerates IPsec VPN performance up to 6.5 Gbps for efficient direct internet access.
- Simplified SD-Branch: Reduces complexity and footprint by consolidating a firewall, SD-WAN, DSL modem, 3G/4G/LTE modem, and wireless into one device.
- Trusted Platform Module (TPM): Features dedicated hardware to protect cryptographic keys and harden physical security.
Ideal Use Cases
- Remote/Branch Offices: Ideal for branches requiring DSL connectivity with automatic 3G/4G/LTE failover and integrated wireless.
- Temporary Sites: Suitable for pop-up stores or temporary sites where fixed broadband may be unavailable, relying on cellular connectivity.
- Distributed Enterprises: Strong fit for organizations standardizing on Secure SD-WAN with consistent security and centralized operations.
Technical Specifications Summary
- IPv4 Firewall Throughput: 10/10/7 Gbps (1518/512/64 byte UDP)
- IPS Throughput (Enterprise Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Mix): 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps

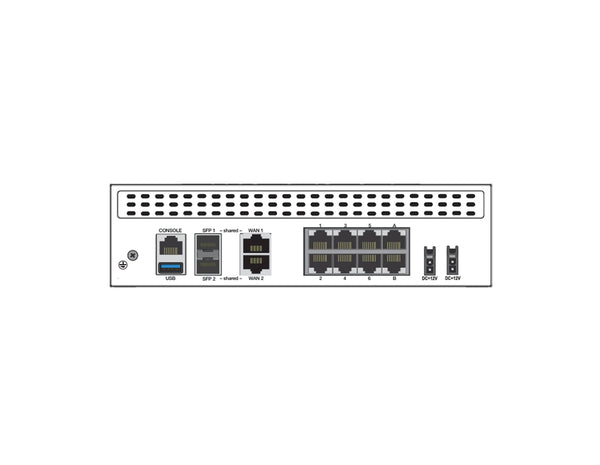

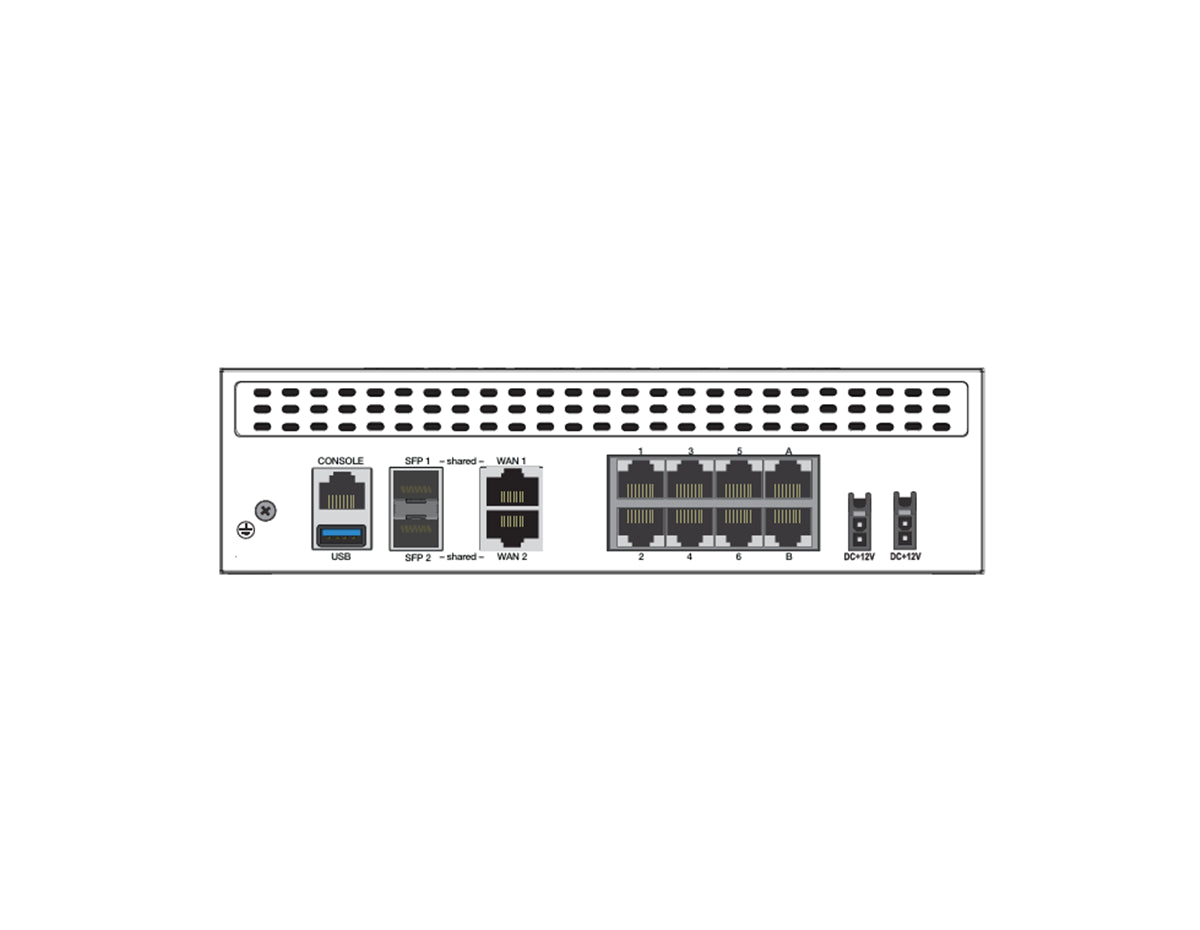

- Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default), 1x DSL RJ11, 3G/4G/LTE modem, 2x Nano SIM slots, 1x USB 3.0, 1x RJ45 console
- Maximum Wi-Fi Speeds: 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
- Dimensions (H x W x L): 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
- Power / Acoustics: 12V DC, 5A input; 28.07 W avg / 34.31 W max; 24.14 dBA noise level
Upgrade Your Network Security
Ensure maximum uptime and convergence with the FortiWiFi 80F-2R-3G4G-DSL and 1-Year Enterprise Protection bundle.
