Unified Security and Wi-Fi 6 Performance

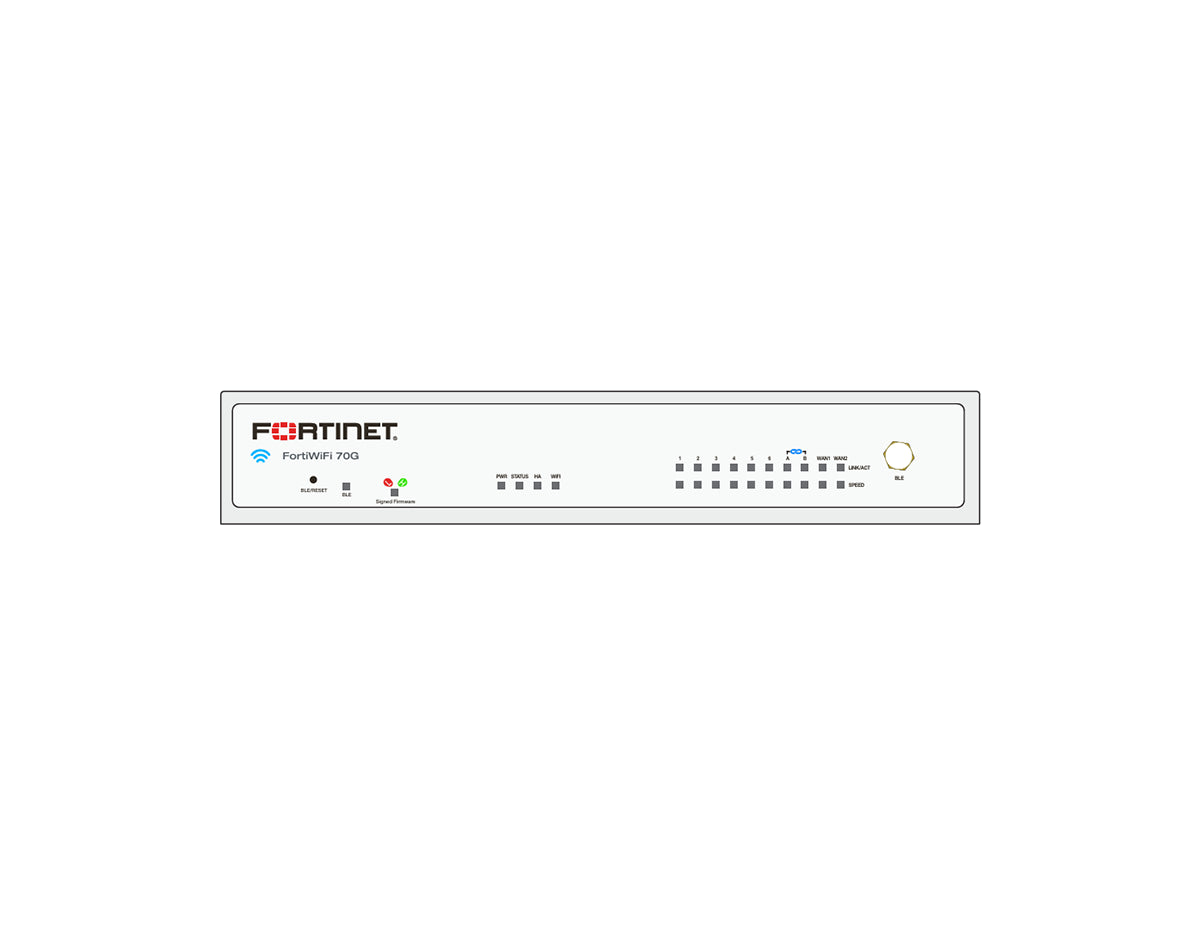

The FortiWiFi 70G (FWF-70G-A) is a next-generation desktop firewall designed to secure modern distributed networks. Powered by Fortinet's patented SP5 ASIC, it converges high-performance networking, 10 Gbps firewall throughput, and integrated Wi-Fi 6 (802.11ax) capabilities into a single, compact appliance. This integration simplifies deployment and management for distributed locations.
Ideal for branch offices and small-to-medium businesses, the FWF-70G provides dual-band Wi-Fi 6 access for high-speed wireless connectivity while simultaneously inspecting encrypted traffic with strong performance. It delivers robust protection against advanced threats through AI-powered security services, including malware prevention, DNS filtering, and intrusion prevention.
Key Benefits
- Powered by SP5 ASIC: Delivers significant performance improvements over traditional CPUs, enabling 10 Gbps firewall throughput and 7.1 Gbps IPsec VPN throughput.
- Integrated Wi-Fi 6: Features a built-in dual-band Wi-Fi 6 access point for superior wireless coverage and throughput without extra hardware.
- Unified Management: Consolidates networking, security, and Wi-Fi management into a single FortiOS console for streamlined operations.
- Secure SD-WAN: Integrated SD-WAN capabilities ensure optimal application performance and secure direct internet access.
- Hardware-Based Security: Includes a Trusted Platform Module (TPM) to harden physical security and authenticate cryptographic keys.
- Low Latency: Achieves ultra-low firewall latency of 2.46 μs, critical for delay-sensitive applications.
Ideal Use Cases
- Branch Offices: All-in-one security and Wi-Fi 6 solution for connecting remote sites securely.
- Retail Locations: Secure, high-speed wireless for POS systems and guest access in a compact form factor.
- Small Businesses: Enterprise-grade protection and unified networking for environments with limited IT resources.
Technical Specifications Summary
- Firewall Throughput: 10 Gbps (1518/512/64 byte UDP)
- IPS Throughput (Enterprise Mix): 2.5 Gbps
- NGFW Throughput (Enterprise Mix): 1.5 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.3 Gbps
- IPsec VPN Throughput: 7.1 Gbps (512 byte)
- SSL Inspection Throughput (IPS, avg. HTTPS): 1.4 Gbps
- Concurrent Sessions (TCP): 1.4 Million
- New Sessions/Second (TCP): 100,000

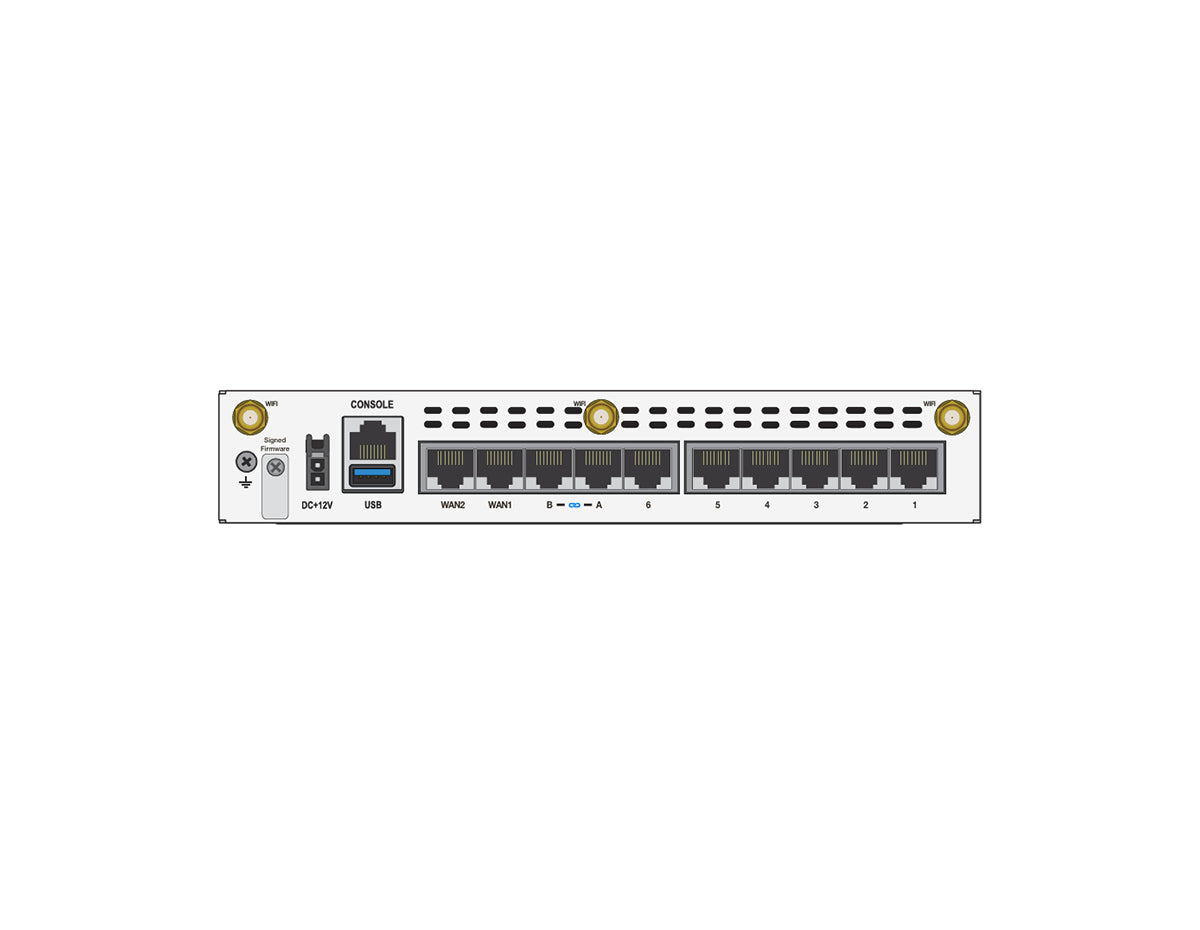

- Wireless: Dual Radio 2.4/5 GHz, 802.11 a/b/g/n/ac/ax (Wi-Fi 6 / 802.11ax), 3x SMA antenna ports
- Power (Avg / Max): 16.9 W / 17.6 W
- Dimensions: 40.5 x 216 x 160 mm
Upgrade Your Network Security
Secure your edge with the power of SP5 ASIC and Wi-Fi 6 in the FortiWiFi 70G.
