Converged DSL Security with Unified Threat Protection
The FortiWiFi 50G-DSL (FWF-50G-DSL-A-BDL-950-60) offers a streamlined solution for distributed enterprises by integrating Next-Generation Firewall (NGFW) capabilities, Secure SD-WAN, and a VDSL2/ADSL2+ modem into a single appliance. This 5-Year Unified Threat Protection (UTP) bundle fortifies your network with essential security services, including IPS, Anti-Malware Protection (AMP), URL/DNS Filtering, and Anti-Spam.
Powered by the Fortinet SP5 ASIC, the FWF-50G-DSL eliminates performance bottlenecks with up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets). Its fanless design ensures silent operation suitable for office environments, while the integrated Wi-Fi 6 (802.11ax) radio provides secure, high-speed wireless connectivity for employees and guests without additional access points.
Key Benefits
- 5-Year Unified Threat Protection: Includes core security services like IPS, Anti-Malware Protection (AMP), URL/DNS Filtering, and Anti-Spam to protect against web-based threats.

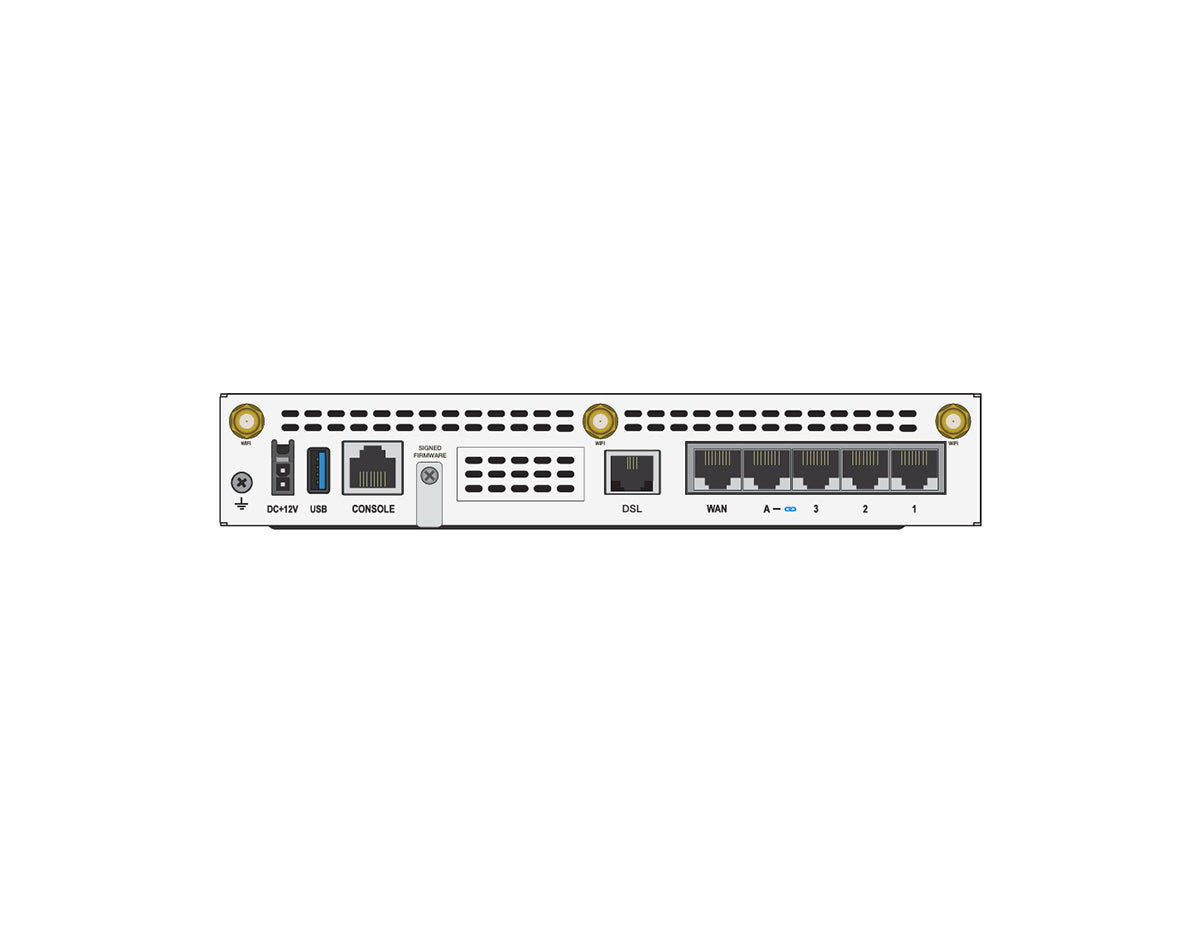

- Integrated DSL Modem: Built-in RJ11 port supports VDSL2 and ADSL2+, eliminating the need for external bridge modems.
- Powered by SP5 ASIC: Delivers up to 1.25 Gbps NGFW throughput and accelerated VPN performance.
- Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for fast and reliable wireless coverage.
- Fanless Operation: Silent 0 dBA noise level makes it ideal for retail counters, small offices, and office environments.
- Unified Management: Consolidates DSL WAN, Wi-Fi, and security management into a single console, reducing operational complexity.
Ideal Use Cases
- Branch Offices with DSL: All-in-one security and connectivity solution for locations relying on broadband DSL lines.
- Retail Locations: Secure, silent, and compact solution protecting POS systems and customer data.
- Small Businesses: Enterprise-grade security and reliable DSL/Wi-Fi connectivity in a cost-effective package.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- Firewall Latency (64 byte UDP): 2.42 μs
- Concurrent Sessions (TCP): 720,000
- New Sessions/Second (TCP): 85,000
- Wi-Fi Performance: 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz (2x2 MU-MIMO)
- Power (Avg/Max): 17.74 W / 19.0 W (Heat Dissipation: 64.79 BTU/h)
Upgrade Your Network Security
Streamline connectivity and maximize security with the FortiWiFi 50G-DSL and 5-Year Unified Threat Protection bundle.
