Converged DSL Security with Enterprise Protection
The FortiWiFi 50G-DSL (FWF-50G-DSL-A-BDL-809-12) offers a streamlined solution for distributed enterprises by integrating Next-Generation Firewall (NGFW) capabilities, Secure SD-WAN, and a VDSL2/ADSL2+ modem into a single appliance. This 1-Year Enterprise Protection bundle fortifies your network with comprehensive security services, including IPS, Anti-Malware Protection, URL/DNS filtering, and additional FortiGuard security services as supported.
Powered by the Fortinet SP5 ASIC, the FWF-50G-DSL eliminates performance bottlenecks with 5 Gbps firewall throughput. Its fanless design ensures silent operation suitable for office environments, while the integrated Wi-Fi 6 (802.11ax) radio provides secure, high-speed wireless connectivity for employees and guests without additional access points.
Key Benefits
- 1-Year Enterprise Protection: Comprehensive security suite including IPS, Anti-Malware Protection, and URL/DNS filtering, plus additional security services as supported.
- Integrated DSL Modem: Built-in RJ11 port supports VDSL2 and ADSL2+, eliminating the need for external bridge modems.
- Powered by SP5 ASIC: Delivers industry-leading 1.25 Gbps NGFW throughput and accelerated VPN performance.
- Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MIMO for fast and reliable wireless coverage.
- Fanless Operation: Silent 0 dBA noise level makes it ideal for retail counters, small offices, and home setups.
- Unified Management: Consolidates DSL WAN, Wi-Fi, and security management into a single console, reducing operational complexity.
Ideal Use Cases
- Branch Offices with DSL: All-in-one security and connectivity solution for locations relying on broadband DSL lines.
- Retail Locations: Secure, silent, and compact solution protecting POS systems and customer data with enterprise-grade defense.
- Highly Regulated Environments: Enterprise Protection bundle supports compliance-focused deployments with advanced security services such as DLP and OT security capabilities where supported.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
- IPS / NGFW / Threat Protection Throughput: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
- Firewall Latency (64 byte UDP): 2.42 μs
- Concurrent Sessions / New Sessions per Second (TCP): 720,000 / 85,000
- Wireless: Dual radio (2.4 GHz / 5 GHz) Wi-Fi 6, 2x2 MU-MIMO; max 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz

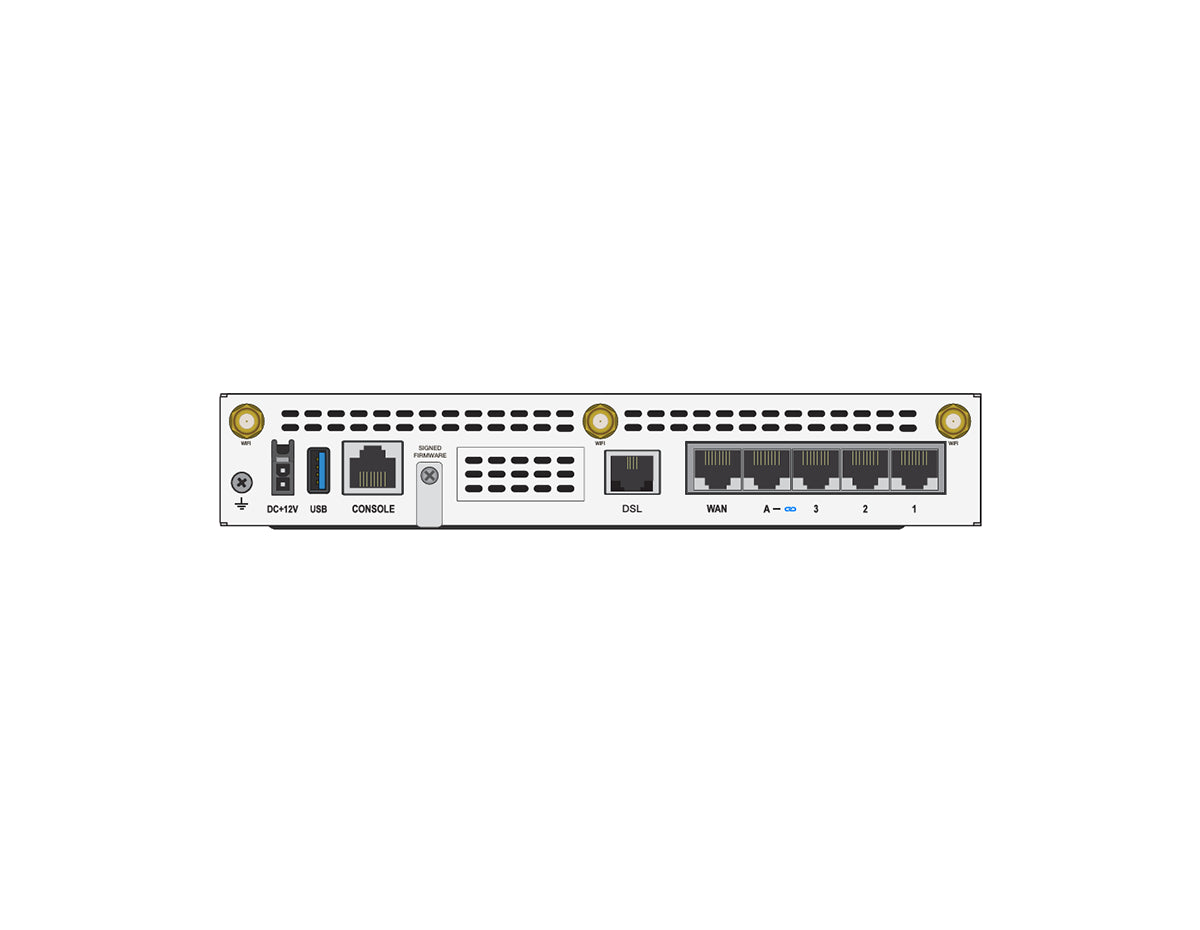

- Interfaces: 1x DSL RJ11, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 3x WiFi Antenna Ports (SMA), 1x USB, 1x RJ45 Console
- Power & Acoustics: 12VDC, 3A; 17.74 W avg / 19.0 W max; fanless 0 dBA
- Physical & Certifications: 42 x 216 x 178 mm; 1.0 kg; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Streamline connectivity and maximize security with the FortiWiFi 50G-DSL and 1-Year Enterprise Protection bundle.
