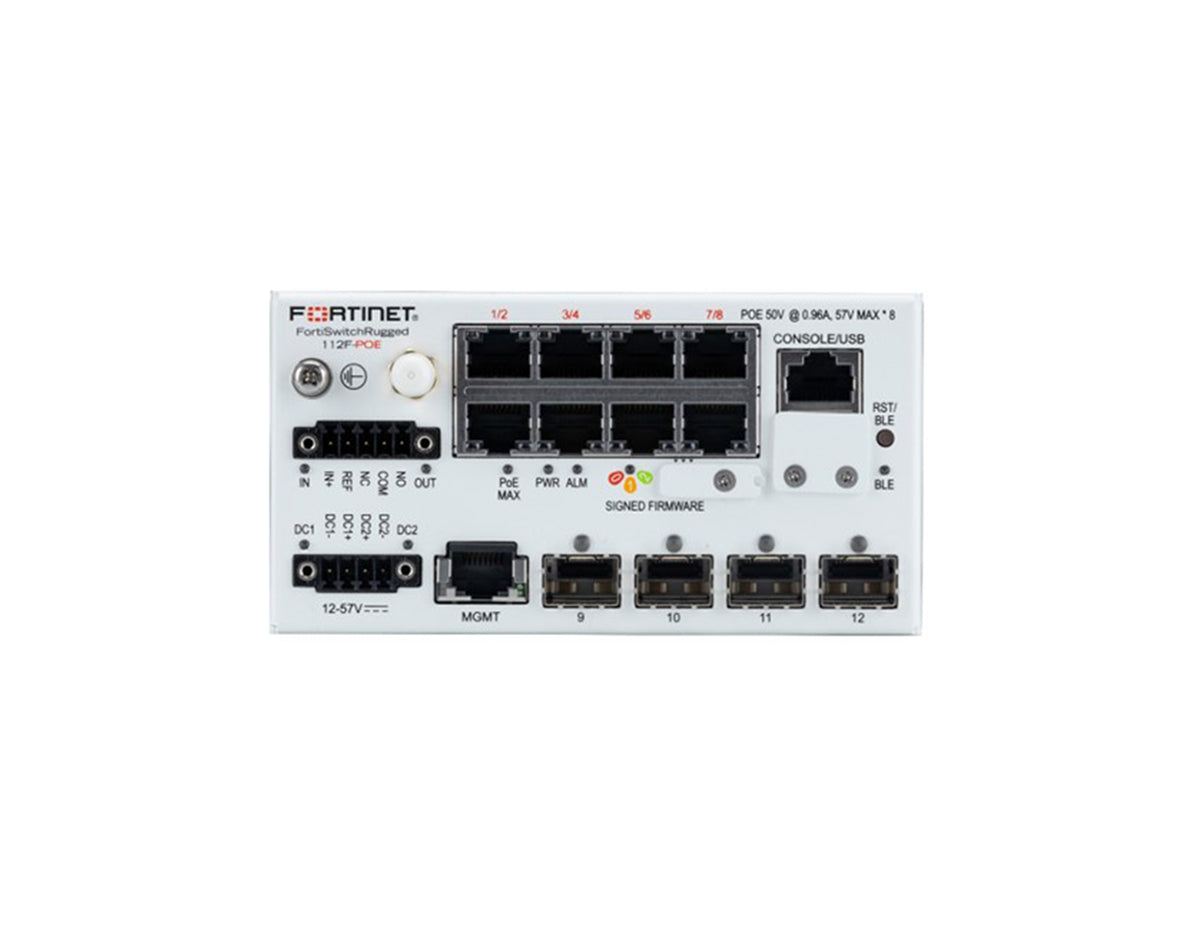

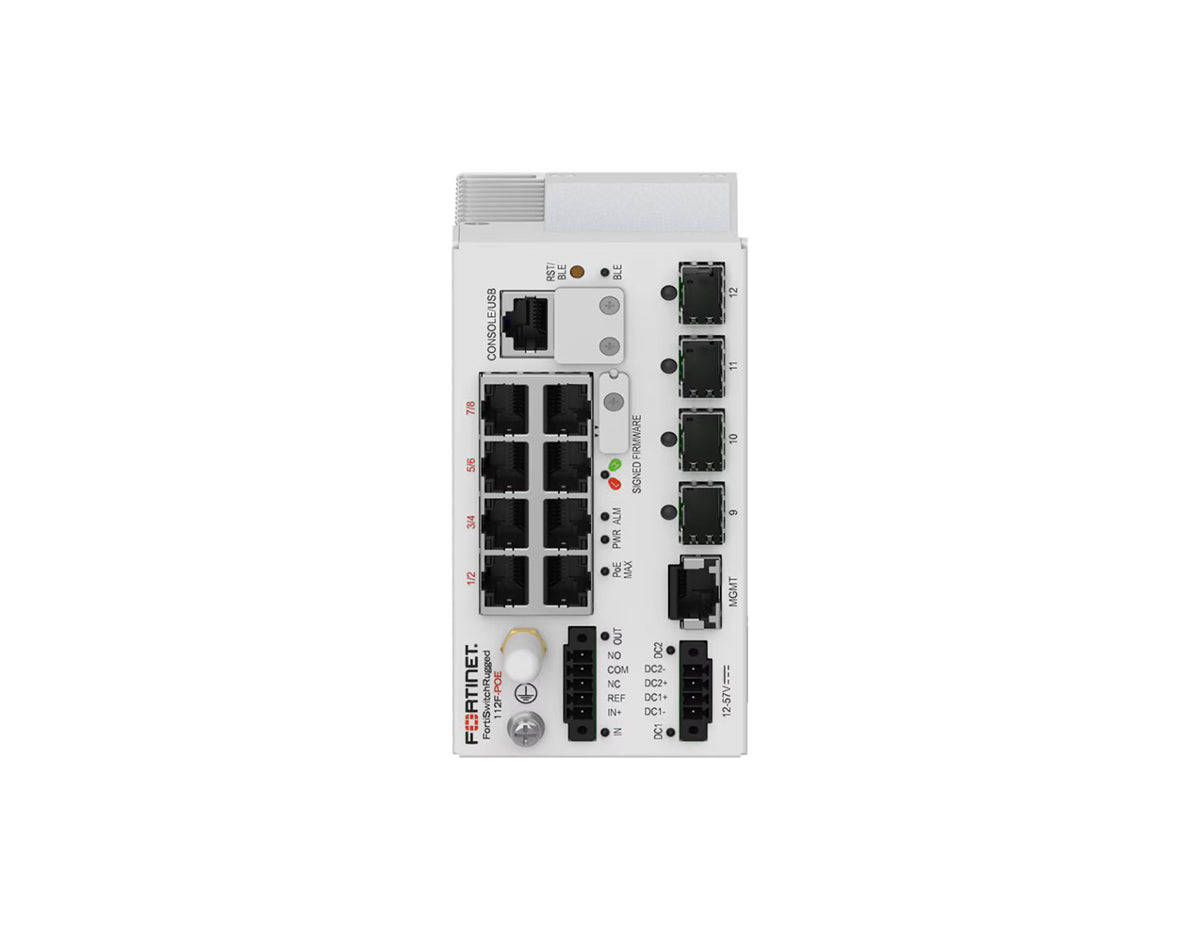

Rugged Switching Power for Harsh Industrial Networks
The Fortinet FortiSwitch Rugged 112F-POE is engineered for demanding industrial and outdoor-adjacent deployments where reliability, power delivery, and centralized control are critical. Designed as a FortiGate switch controller compatible device, it integrates seamlessly into Fortinet Security Fabric environments while delivering enterprise-grade Layer 2 switching in a hardened form factor.
With high-power PoE++ support and a fanless IP40-rated chassis, the 112F-POE is ideal for operational technology, industrial automation, and remote edge networks that require consistent performance under extreme temperatures and challenging conditions.
Key Benefits & Features
- High-Power PoE++ Capability: Eight Gigabit Ethernet ports support IEEE 802.3bt Type 4 PoE, delivering up to 90W per port with a total PoE budget of 240W for powering cameras, sensors, and access points.
- Industrial-Grade Rugged Design: Fanless, IP40-rated enclosure built to operate in extreme temperatures from -40°C to 75°C, ensuring reliability in harsh environments.
- FortiLink Centralized Management: Operates as a logical extension of FortiGate firewalls, enabling unified policy control, simplified deployment, and Security Fabric integration.
- Flexible Fiber Uplinks: Four SFP ports provide resilient fiber connectivity for aggregation or long-distance links in industrial networks.
- High Availability Architecture: Supports redundant power inputs and advanced Layer 2 features to maintain network continuity in mission-critical deployments.
Ideal Use Cases
- Industrial automation and OT networks
- Transportation, railway, and roadside infrastructure
- IP surveillance and high-power camera deployments
- Manufacturing floors and remote facilities
- Rugged branch or edge network extensions
Technical Specifications
- Switch Type: Layer 2 managed Ethernet switch
- Downlink Ports: 8x 10/100/1000 RJ45 PoE++
- PoE Standard: IEEE 802.3af/at/bt (up to 90W per port)
- Total PoE Budget: 240W
- Uplink Ports: 4x 1G/100M SFP
- Switching Capacity: 24 Gbps
- Packet Forwarding Rate: 35.7 Mpps
- Cooling: Fanless, passive cooling
- Ingress Protection: IP40
- Mounting: DIN-rail mountable
Deploy Rugged PoE with Confidence
Power and connect critical devices in extreme environments with the FortiSwitch Rugged 112F-POE. Order today.
