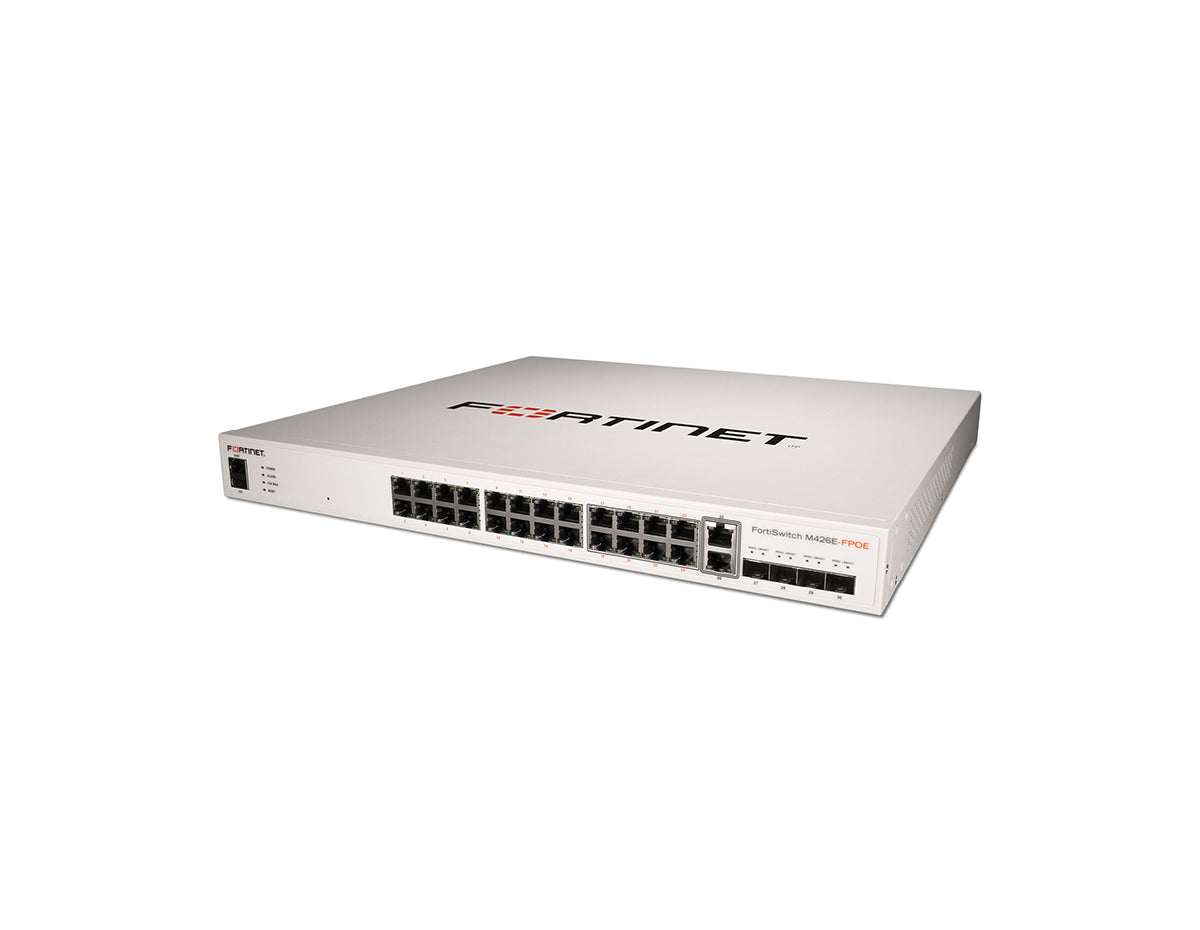

FORTINET FS-M426E-FPOE SWITCH
| Model: | FS-M426E-FPOE |
| Detail: | Layer 2/3 FortiGate switch controller compatible PoE+ switch with 16 x GE RJ45 ports, 8 x MultiGIG 2.5 GE UPOE (60W) capable RJ45 ports, 2 X MulitGiG 5GE RJ45 ports, 4X SFP+, with automatic Max 421W POE output limit |
| List Price: | |
| Price: | $2,951.82 |
| You Save: | $1,326.18 (31% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Specifications
| Switching Capacity (Duplex) | 172 Gbps |
| Packets Per Second (Duplex) | 255 Mpps |
| MAC Address Storage | 16 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 2 MB |
| DRAM | 1 GB DDR4 |
| FLASH | 256 MB |
| ACL | 1k |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | 1000/500 |
| Multicast Route Entries | - |
| Host Entries | 5k |
| Dimensions in. | 1.73 x 16.14 x 17.3 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | Redundant AC |
| Power Consumption (Average / Maximum) | 441 W / 442 W |
| Heat Dissipation | 132.734 BTU/h |
| Operating Temperature | 32°122°F (0°50°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Properties
| Properties | FS-M426E-FPOE |
| Description | Layer 2/3 FortiGate switch controller compatible PoE+/802.3bt Type 3 switch with 16x GE RJ45, 8x 2.5 RJ45, 2x 5 GE RJ45 and 4x 10 GE SFP+, 24 port PoE+ with maximum 420 W limit. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 16x GE RJ45, 8x 2.5 GE RJ45 ports, 2x 5 GE RJ45, and 4x 10 GE SFP+ ports Note: SFP+ ports are compatible with 1 GE SFP |
| Dedicated Management 10/100/1000 Ports |
1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 24 (16x 802.3af/at, 8x 802.3af/at/bt Type 3 Class 6) |
| PoE Power Budget (single/dual PSU) |
420 W |
| Mean Time Between Failures | > 10 years |
