FORTINET FS-124E SWITCH
| Model: | FS-124E |
| Detail: |
L2 Switch - 24 x GE RJ45 ports, 4 x GE SFP slots, Fanless, FortiGate switch controller compatible. |
| List Price: | |
| Price: | $225.00 |
| You Save: | $264.00 (54% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

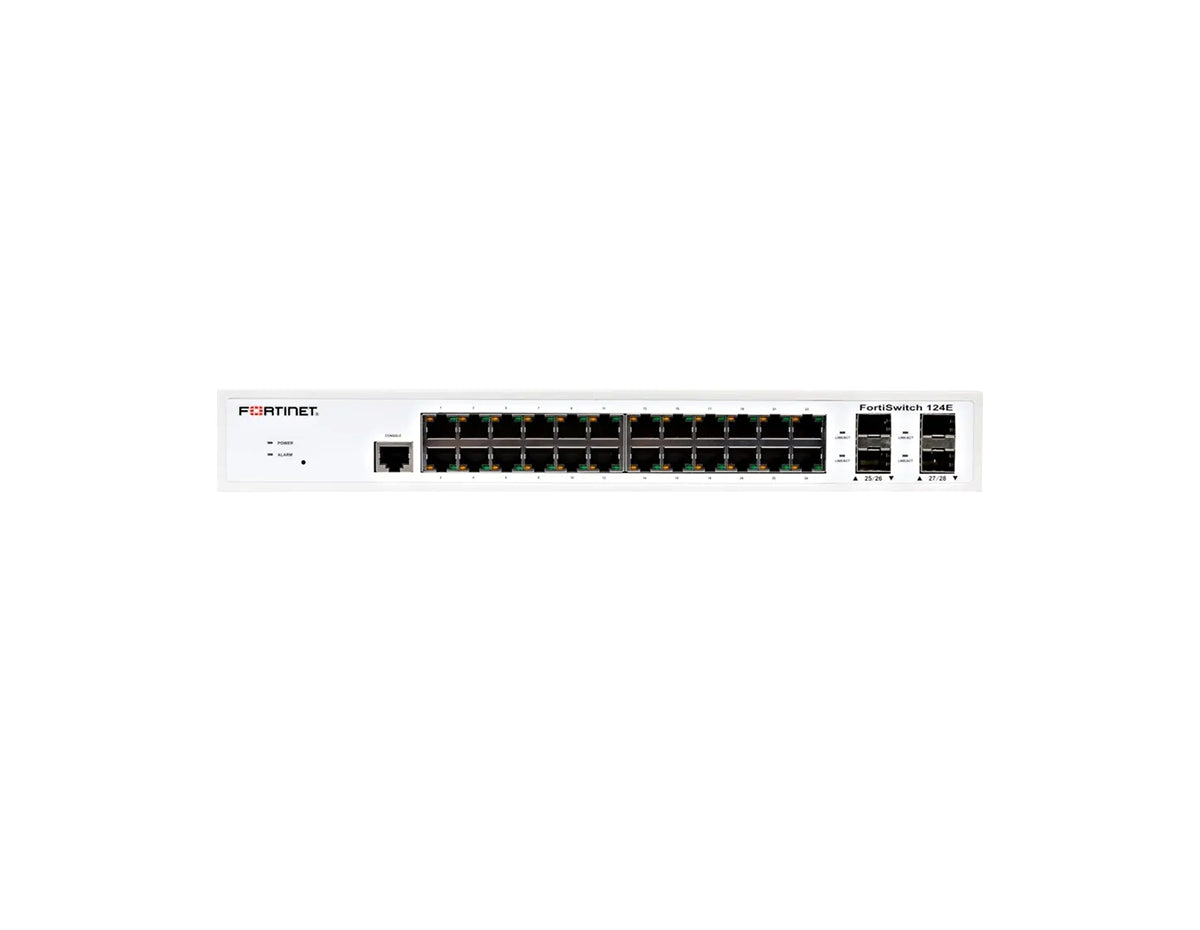

Fortinet FS-124E Switch
The Fortinet FS-124E is a member of the FortiSwitch Access family. The FortiSwitch Access Family is designed to address the specific requirements of enterprise branch offices and small businesses. Its exceptional blend of security, user-friendliness, and scalability renders FortiSwitch an optimal option for ethernet infrastructure. It can be integrated into FortiGate environments by using FortiLink which provides simplified and centralized management and unparalleled network security that is extended from the FortiGate NGFW. This product is equipped with 24x GE RJ45 and 4x GE SFP. It has a fanless design.
Quick Specs:
- 24x GE RJ45 ports
- 4x GE SFP ports
- Switching Capacity (Duplex): 56Gbps
- Packets Per Second (Duplex): 83Mpps
Please see the related tabs for the FS-124E datasheet and compatible accessories.
Specifications
| Switching Capacity (Duplex) | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
| ACL | 640 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | - |
| Multicast Route Entries | - |
| Host Entries | - |
| Dimensions in. | 1.7 x 8.2 x 13 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | No |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W |
| Heat Dissipation | 54 BTU/h |
| Operating Temperature | 32°-113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Properties
| Properties | FS-124E |
| Description | Layer 2 FortiGate switch controller compatible switch with 24 GE RJ45 + 4 SFP ports. Fanless. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 |
| PoE Power Budget (single/dual PSU) |
0 |
| Mean Time Between Failures | > 10 years |
