Description

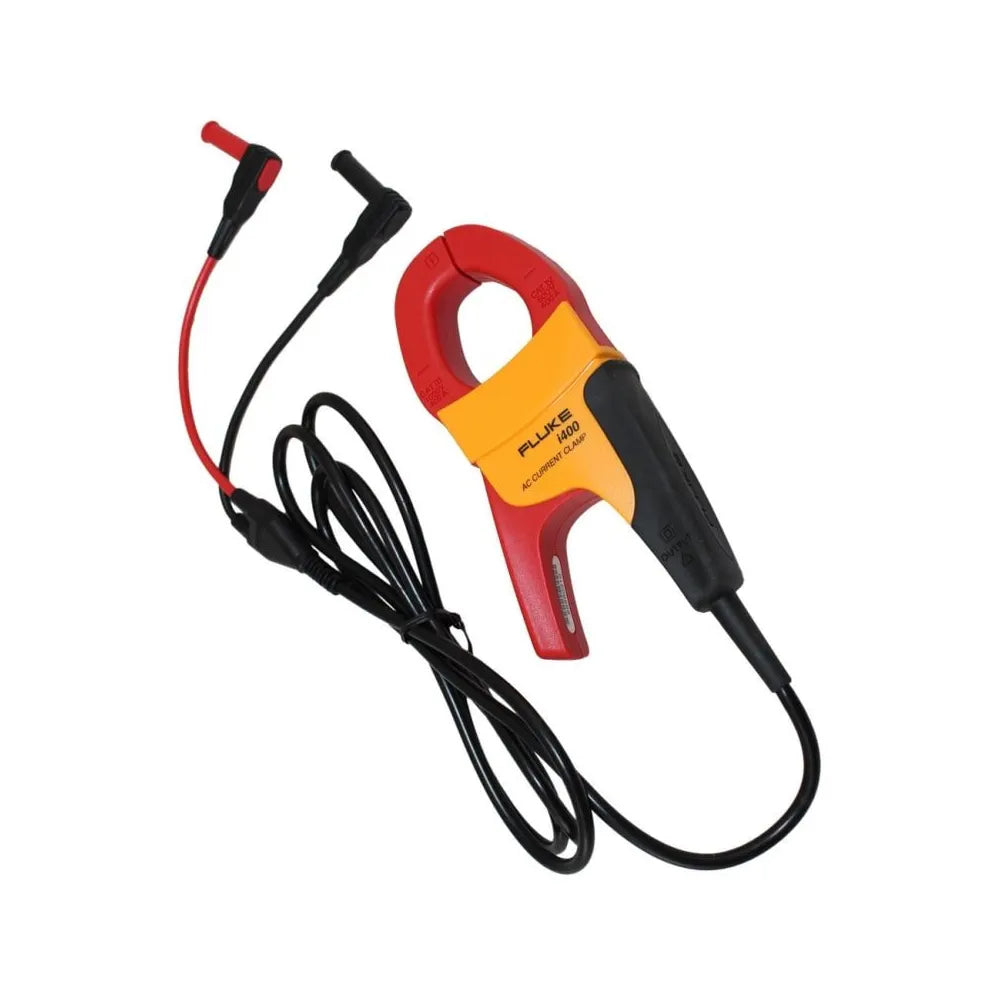

Fluke 400A AC Current Clamp (Fluke-i400)

The Fluke i400 AC Current Clamp is a reliable and high-safety clamp meter accessory designed to work with digital multimeters for accurate AC current measurements up to 400A. With a 1 mA/Amp output, it ensures easy readings on compatible meters while providing CAT IV 600V and CAT III 1000V safety ratings. This clamp enables current measurements without disconnecting live circuits, enhancing safety and efficiency for electrical professionals. The non-slip, overmolded handle ensures a secure grip, and its compact design makes it easy to use in tight spaces.

Key Features:

• 400A AC Current Measurement: Measures AC currents from 1A to 400A.
• CAT IV 600V / CAT III 1000V Safety Rating: Industry-leading safety compliance.
• 1 mA/A Output: Ensures easy and accurate readings on digital multimeters.
• Non-Contact Measurement: Enables safe current measurements without breaking the circuit.
• Soft Overmolded Handle: Provides a non-slip grip for enhanced safety.
• Compact & Lightweight: Designed for easy handling and use in confined spaces.

Technical Specifications:

• Nominal Current Range: 400A
• Continuous Current Range: 1A - 400A
• Maximum Non-Destructive Current: 1000A
• Lowest Measurable Current: 1A
• Basic Accuracy: ±2% + 0.06A (45-400Hz)
• Usable Frequency Range: 5Hz - 20kHz
• Output Level: 1mA/A
• Maximum Voltage: 1000V AC rms from earth to ground (EN61010 compliant)
• Maximum Conductor Diameter: 32mm (1.25 in)
• Maximum Conductor Size (Busbar): 750 MCM
• Output Cable Length: 1.5m (59 in)
• Connector Type: Shrouded banana plugs
