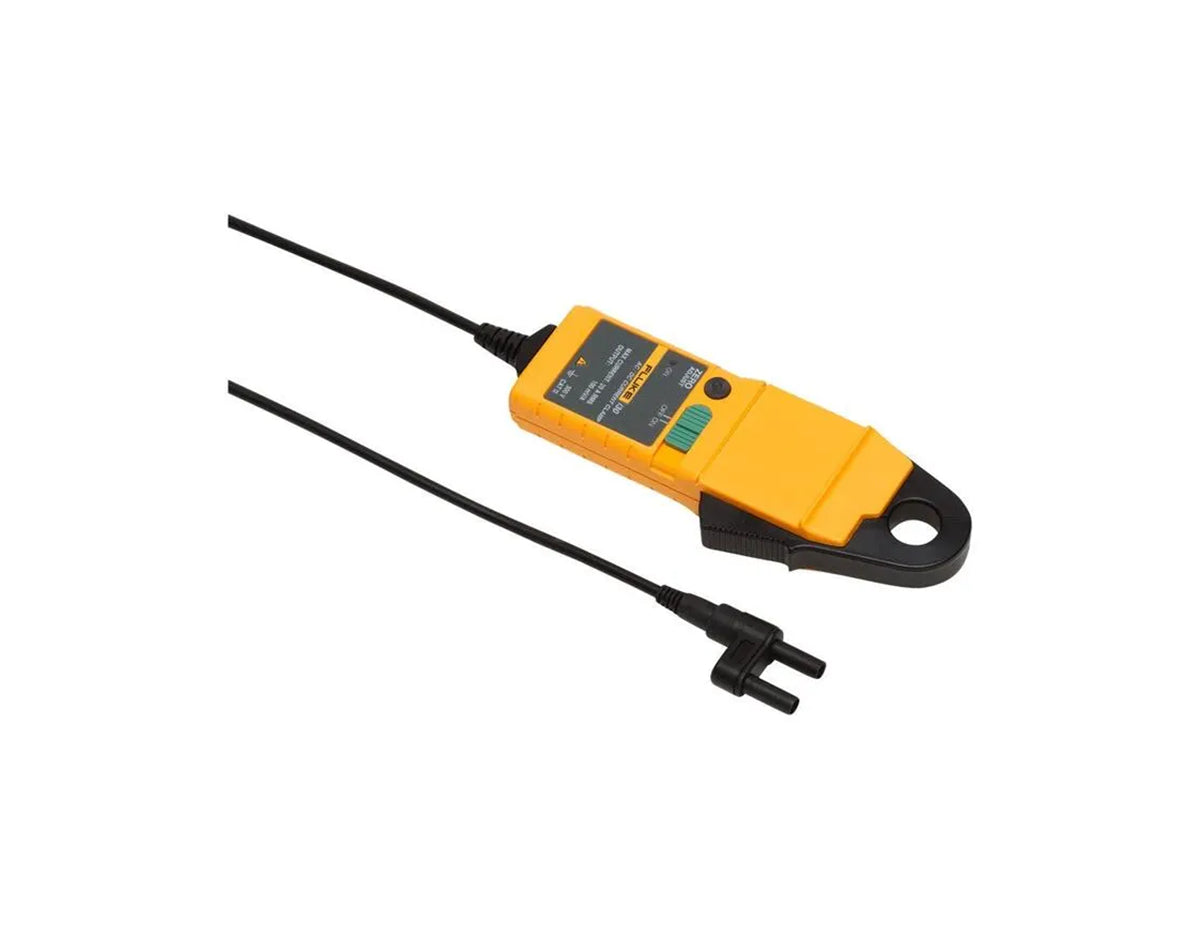

Fluke i30 AC/DC Current Clamp 30A Hall Effect Probe

Precision AC/DC Current Measurement Without Circuit Interruption

The Fluke i30 AC/DC Current Clamp is engineered for professionals who require accurate, non-intrusive current measurement in demanding environments. Utilizing advanced Hall effect technology, this clamp enables precise readings of both AC and DC currents without breaking the circuit. Designed for seamless integration with digital multimeters and recording instruments, it delivers reliable performance for electrical diagnostics, maintenance, and troubleshooting tasks.

Key Benefits & Features

• Hall Effect Sensing Technology: Accurately measures both AC and DC current with high sensitivity, ensuring reliable diagnostics across a wide range of electrical systems.
• Wide Measurement Range: Supports 30 mA to 30 A DC and 30 mA to 20 A AC rms, making it suitable for low and high current applications.
• Non-Intrusive Operation: Clamp design allows safe current measurement without interrupting circuits, reducing downtime and risk during testing.
• Broad Frequency Response: Covers DC to 20 kHz bandwidth, enabling accurate analysis of both steady-state and dynamic signals.
• Universal Compatibility: Equipped with 4 mm banana plug connectors for direct use with multimeters, recorders, and other recording devices.

Ideal Use Cases

• Electrical maintenance and troubleshooting in commercial facilities
• Industrial equipment diagnostics and current monitoring
• HVAC system testing and performance verification
• Field service engineers requiring portable measurement tools
• Laboratory and test bench current analysis

Measure Current Safely and Accurately Today

Upgrade your diagnostic toolkit with the Fluke i30 for precise, reliable current measurements. Order today and improve your testing efficiency.

Model	Fluke i30
Product Type	AC/DC Current Clamp
Measurement Technology	Hall Effect
Current Range (DC)	30 mA to 30 A
Current Range (AC)	30 mA to 20 A rms
Usable Current Range	5 mA to 30 A DC; 30 mA to 20 A AC rms
Frequency Range	DC to 20 kHz (0.5 dB)
Output Sensitivity	100 mV/A
Output Connection	4 mm safety banana connector
Maximum Conductor Size	19 mm diameter
Safety Rating	CAT III 300 V
Power Supply	9 V Alkaline battery (IEC 6LR61)
Battery Life	30 hours with low battery indicator
Cable Length	1.5 m
Dimensions (HxWxD)	183 mm x 71 mm x 25 mm
Weight	250 g
Operating Temperature	0 °C to +50 °C
Storage Temperature	-20 °C to +85 °C
Operating Humidity	15% to 85% (non-condensing)

Accuracy (at +25 °C)	DC: +/-1% of reading +/- 2 mA; AC: +/-0.5% of reading +/- 2 mA
Resolution	+/-1 mA
Crest Factor	1.4
Load Impedance	> 100 k Ohms and ≤ 100 pF
Conductor Position Sensitivity	+/-1% relative to center reading
Temperature Coefficient	+/-0.01% of reading per °C
Working Voltage	300 V AC rms or DC
Safety Standards	BS EN 61010-1: 2001; BS EN 61010-2-032: 2002; BS EN 61010-031: 2002
EMC Standards	EN 61326: 1998 +A1, A2, and A3
Output Zero Adjustment	Manual adjust via thumbwheel
Pollution Degree	2
