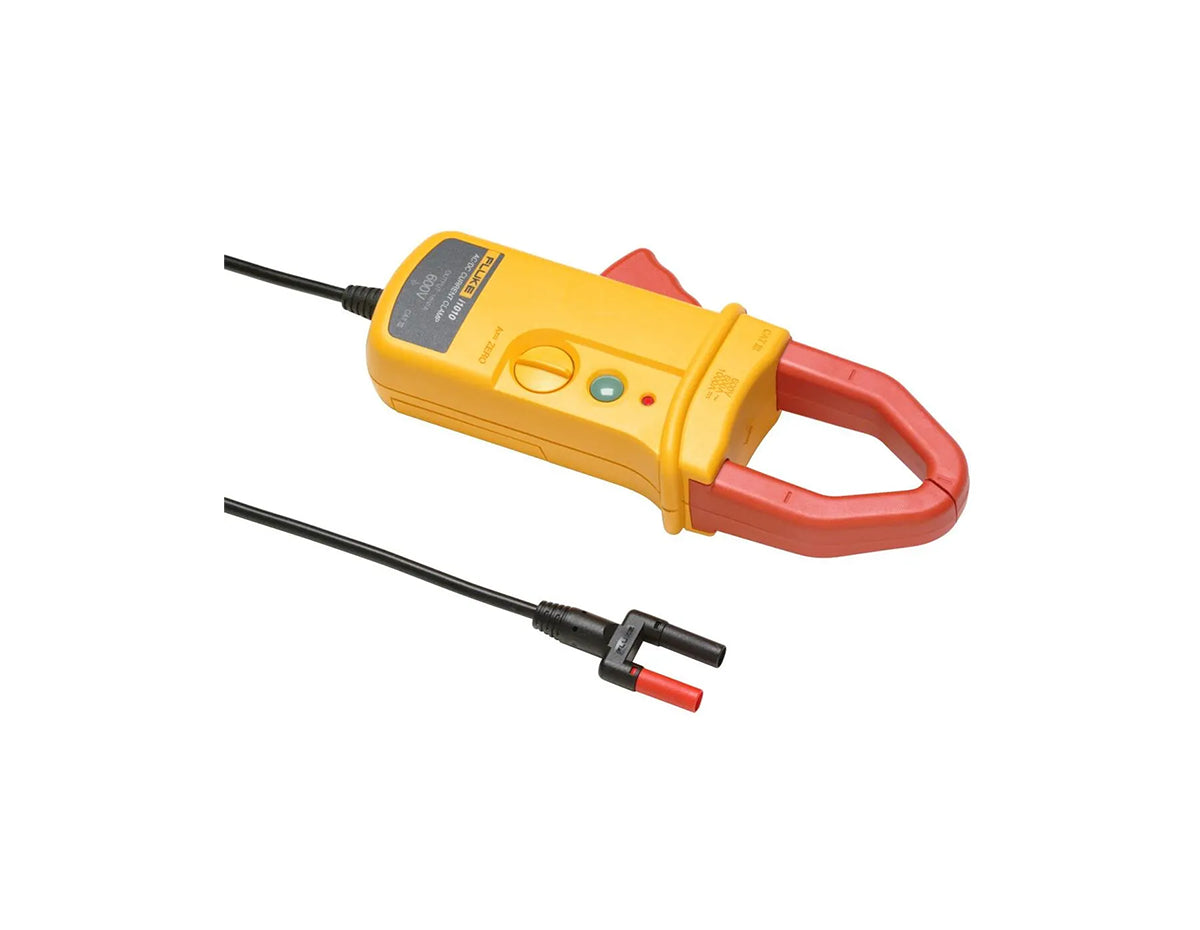

Fluke i1010 AC/DC Current Clamp 1000A Hall Effect Probe

Measure High Currents Safely Without Breaking the Circuit

The Fluke i1010 AC/DC Current Clamp is designed for professionals who need precise, non-intrusive current measurements in demanding environments. Built with Hall-effect technology, this clamp extends the capabilities of Fluke multimeters, enabling accurate AC and DC current readings up to 1000A without interrupting the circuit. Its robust design and wide measurement range make it an essential diagnostic tool for electrical maintenance and troubleshooting.

Key Benefits & Features

• Wide Current Measurement Range: Measures from 1A up to 1000A DC and 600A AC, making it suitable for both low and high current applications across industrial systems.
• Hall-Effect Sensor Technology: Ensures accurate AC and DC readings with a stable 1 mV/A output for precise analysis and diagnostics.
• Non-Intrusive Testing: Allows current measurement without breaking the circuit, improving safety and minimizing downtime during maintenance.
• Broad Compatibility: Works seamlessly with most Fluke digital multimeters, extending their measurement capabilities.
• Large Jaw Design: Accommodates conductors up to 30 mm diameter, enabling access to cables in tight or hard-to-reach areas.

Ideal Use Cases

• Electrical maintenance and troubleshooting in industrial facilities
• Power distribution system diagnostics
• HVAC system current monitoring
• Field service testing with Fluke multimeters
• Inspection of high-current circuits without system shutdown

Technical Specifications

• Measurement Type: Hall sensor
• AC Current Range: 1A to 600A
• DC Current Range: 1A to 1000A
• Maximum Current: 1000A non-destructive
• Accuracy: 2% + 0.5 A
• Frequency Range: DC to 10 kHz
• Output Signal: 1 mV/A
• Safety Rating: CAT III 600V
• Maximum Conductor Diameter: 30 mm
• Output Cable Length: 1.6 m

Upgrade Your Electrical Testing Precision Today

Enhance your measurement capabilities with the Fluke i1010 current clamp. Order today for reliable, high-accuracy current diagnostics.

Model	Fluke i1010
Product Type	AC/DC Current Clamp
Measurement Type	Hall sensor
AC Current Range	1 A to 600 A
DC Current Range	1 A to 1000 A
Output Level	1 mV/A
Frequency Range	DC to 10 kHz
Safety Rating	CAT III 600 V
Maximum Conductor Diameter	30 mm
Battery Life	9 V, 60 hours

Nominal Current Range	600 A AC; 1000 A DC
Continuous Current Range	1 A to 600 A AC; 1 A to 1000 A DC
Maximum Non-destructive Current	1000 A
Lowest Measurable Current	0.5 A
Basic Accuracy	2% + 0.5 A (% reading + floorspec)
Usable Frequency	DC to 10 kHz
Output Sensitivity	1 mV/A
Zero Adjustment	Yes
Safety Category	CAT III 600 V
Maximum Voltage	600 V
Maximum Conductor Diameter	30 mm; 2 x 25 mm
Output Cable Length	1.6 m
Connector Type	Shrouded banana plugs
