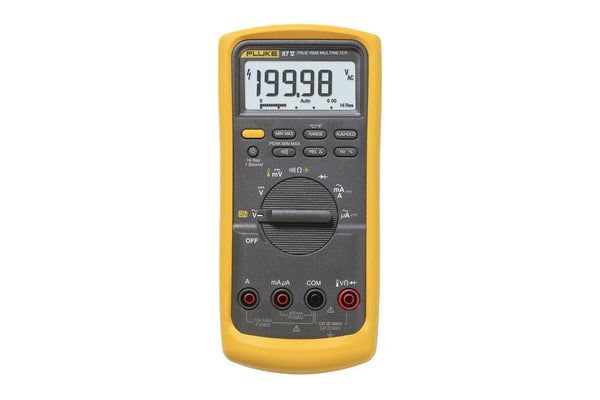

FLUKE-87-V/E2-KIT Industrial Combo Kit with Digital Multimeter

Precision Measurement Power for Industrial Environments

The Fluke 87V/E2 Industrial Electrician Combo Kit is engineered for professionals who demand accuracy, reliability, and safety in high-energy environments. Built around the industry-leading Fluke 87V digital multimeter, this kit delivers advanced diagnostic capabilities and essential accessories to streamline troubleshooting and improve productivity in complex electrical systems.

Key Benefits & Features

• True RMS Accuracy: Ensures precise AC voltage and current measurements on non-linear signals, critical for VFDs and industrial loads.
• High Measurement Capability: Measures up to 1000V AC/DC and 10A current with high resolution, enabling accurate diagnostics across diverse applications.
• Advanced Troubleshooting Tools: Peak capture, Min/Max/Avg recording, and glitch detection down to 250 µs help identify intermittent signals and spikes.
• Integrated Temperature Measurement: Includes a dedicated thermocouple probe, making it ideal for monitoring electrical components and motor temperatures without a separate thermometer.
• Complete Accessory Kit: Features fully insulated 3 mm exposed metal test probes, magnetic hanging strap for hands-free use, and a durable soft carrying case.

Ideal Use Cases

• Industrial electrical troubleshooting and plant automation maintenance
• VSD/VFD output side measurements at drive or motor terminals
• Power distribution analysis and electromechanical equipment repair
• Field service technicians requiring high-resolution (20,000 count) data
• Checking power quality and capturing fast 250 µs glitches

Technical Specifications

• Voltage Range: Up to 1000V AC/DC
• Current Range: 10A (20A for 30 seconds max)
• DC Accuracy: 0.05% DC accuracy
• Display: 6000 counts or 20,000 counts in high-resolution mode
• Temperature Range: -200 °C to 1090 °C (Meter); -40 °C to 260 °C (Probe)
• Capacitance: Up to 10,000 µF
• Frequency: Up to 200 kHz
• Safety Rating: CAT III 1000V, CAT IV 600V
• Operating Temperature: -20 °C to +55 °C
• Battery Life: Approx. 400 hours (Alkaline)

Equip Your Toolkit with Industry-Leading Precision

Boost accuracy and efficiency with the trusted Fluke 87V/E2 kit. Order today and upgrade your measurement capabilities with the world’s most trusted industrial multimeter.

Model	Fluke 87V/E2
Product Type	Industrial Digital Multimeter Combo Kit
Display	6,000 counts (3-3/4 digit) or 20,000 counts (4-1/2 digit); analog bar graph
True RMS	Yes (AC Voltage and Current)
DC Voltage	Up to 1000 V
AC Voltage	Up to 1000 V
DC Current	10 A (20 A for 30 seconds maximum)
AC Current	10 A (20 A for 30 seconds maximum)
Resistance	Up to 50 MOhm
Capacitance	Up to 10,000 µF
Frequency	Up to 200 kHz
Temperature Range	-200 °C to 1090 °C (Meter capability)
Duty Cycle	Up to 99.9%
Safety Rating	CAT III 1000 V, CAT IV 600 V
Power Source	9V Battery (Included)
Battery Life	~400 hours typical (Alkaline, without backlight)
Dimensions	201 x 98 x 52 mm (with holster)
Weight	624 g (with holster)
Operating Temperature	-20 °C to +55 °C
Storage Temperature	-40 °C to +60 °C
Origin	Assembled in USA

DC Voltage Accuracy	±(0.05% + 1); Max Resolution 10 µV
AC Voltage Accuracy	±(0.7% + 2) True RMS; Bandwidth 20 kHz (with low pass filter)
DC Current Accuracy	±(0.2% + 2); Max Resolution 0.01 µA
AC Current Accuracy	±(1.0% + 2) True RMS; Max Resolution 0.1 µA
Resistance Accuracy	±(0.2% + 1); Max Resolution 0.1 Ohm
Capacitance Accuracy	±(1% + 2); Max Resolution 0.01 nF
Frequency Accuracy	±(0.005% + 1); Max Resolution 0.01 Hz
Duty Cycle Accuracy	±(0.2% per kHz + 0.1%); Max Resolution 0.1%
80BK-A Probe Range	-40.0 °C to 260 °C (-40.0 °F to 500 °F)
Conductance	Max 60.00 nS; Accuracy ±(1.0% + 10)
Diode Test	3 V Range; 1 mV Resolution; ±(2% + 1) Accuracy
Peak Capture	Captures intermittent signals as short as 250 µs
Humidity	0%–90% (0 °C–35 °C); 0%–70% (35 °C–55 °C)
Shock/Vibration	1 Meter drop (IEC 61010-1); MIL-PRF-28800 Class 2 instrument
Safety Certifications	UL, CSA, TÜV, VDE listed; EN 61010-1

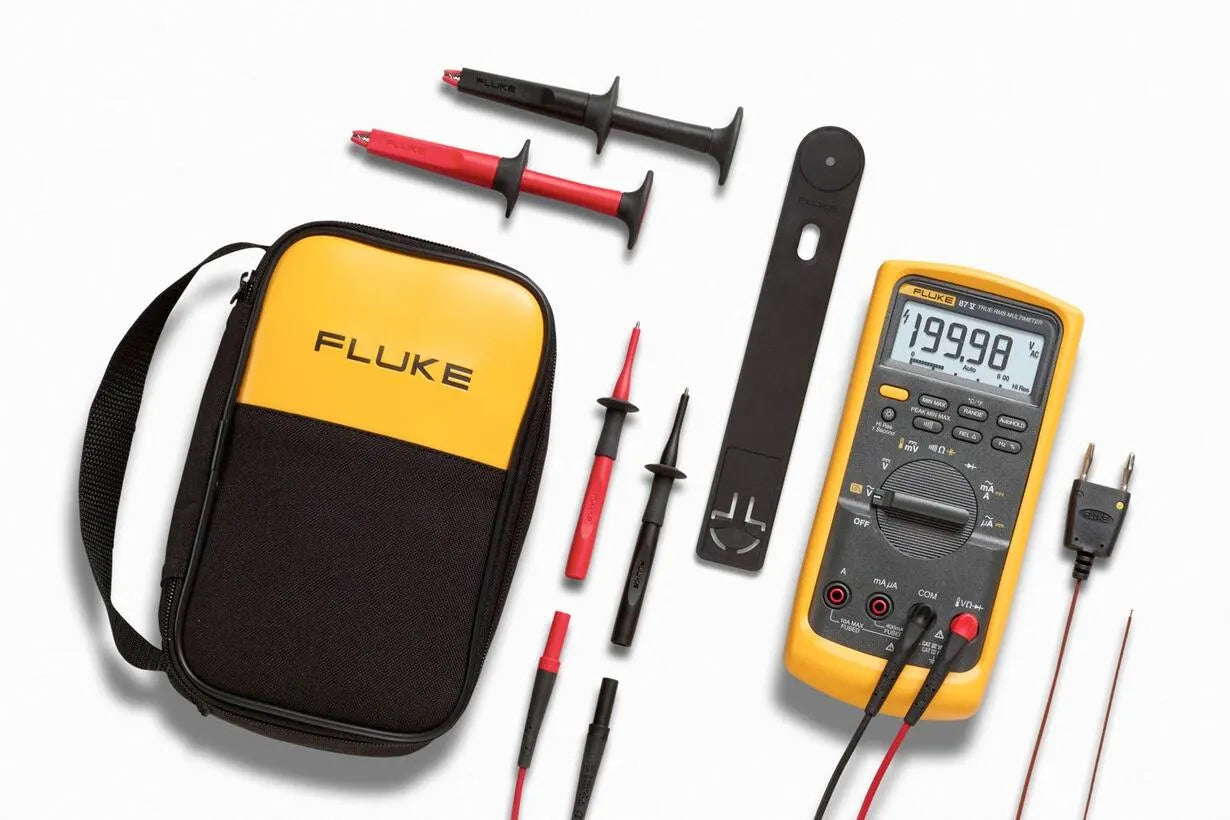

Included Items

Fluke 87V Industrial Multimeter, TL224 SureGrip Insulated Test Leads, AC220 SureGrip Alligator Clips, TL238 SureGrip Test Probes, ToolPak Magnetic Meter Hanging Kit, 80BK-A DMM Temperature Probe, C35 Soft Carrying Case, 9V Battery (installed)
