Description

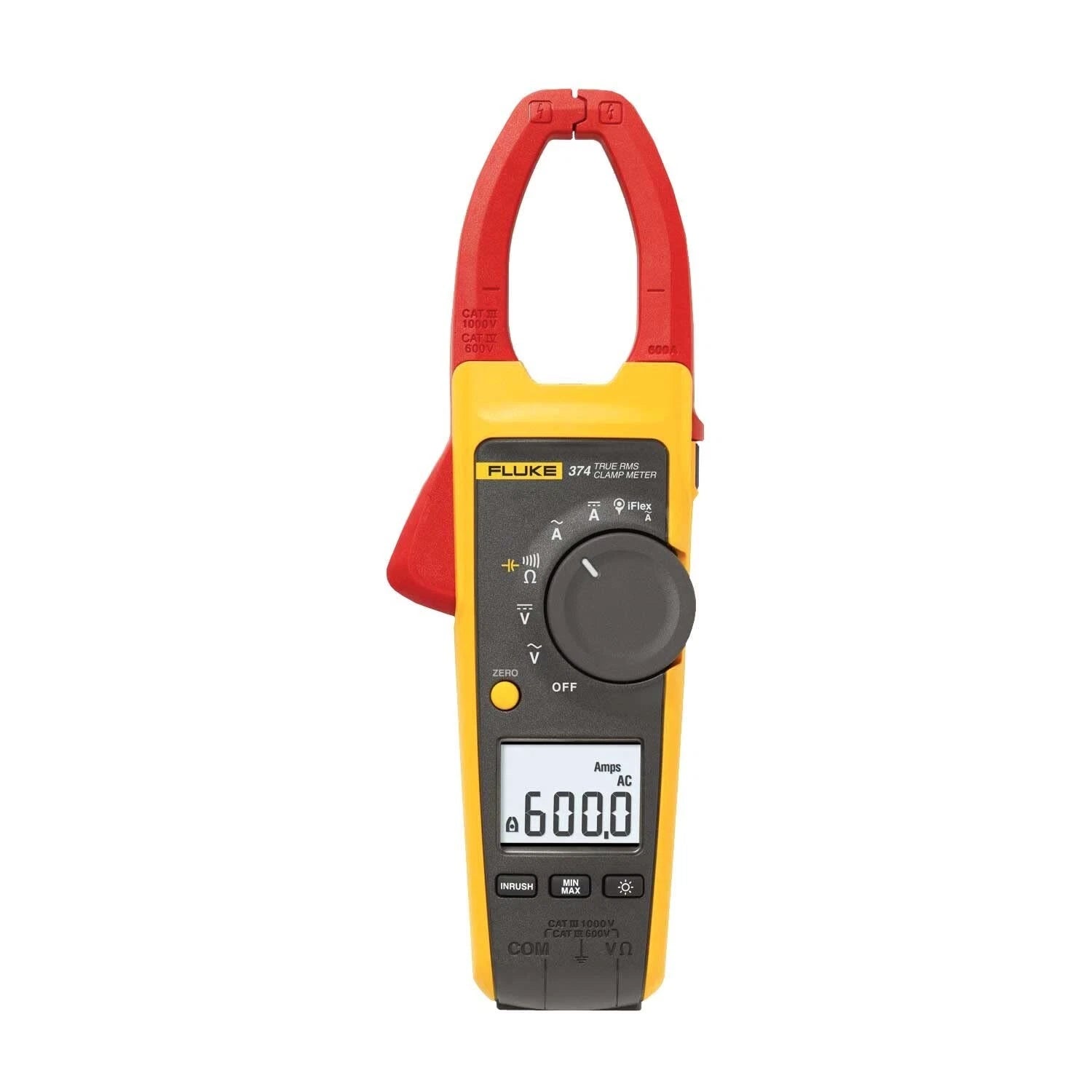

FLUKE-374 True RMS AC/DC Clamp Meter

The Fluke 374 True-RMS Clamp Meter delivers reliable, professional-grade performance for demanding electrical environments. Designed to handle complex signal conditions, this meter provides accurate AC/DC current and voltage measurements up to 600 A and 600 V. True-RMS functionality ensures accuracy when working with non-linear loads, making it ideal for industrial, commercial, and HVAC applications.

Compatible with the optional iFlex™ flexible current probe, the Fluke 374 allows expanded measurement capability up to 2500 A AC, offering improved access to tight or hard-to-reach conductors. Its robust ergonomic build supports safe one-handed operation—even while wearing PPE—while the large backlit display simplifies readings in low-light areas. Additional capabilities like inrush current capture, min/max/avg recording, and a soft carrying case make the 374 an essential tool in any electrician’s kit.

Key Features:

• True-RMS Accuracy: Ensures precise readings on non-linear loads.
• iFlex™ Compatibility: Expand current measurement to 2500 A AC (iFlex probe sold separately).
• CAT IV 600 V Safety Rating: Maximum protection for industrial environments.
• Inrush Measurement: Filters out noise to capture motor start-up current accurately.
• Ergonomic Design: Easy one-handed operation, even with gloves.
• Auto Range Selection: Eliminates manual switch changes for faster readings.
• Backlit Display: High visibility in dim work areas.
• Versatile Recording: Min, Max, Average, and Inrush data capture functions.
• Included Accessories: Soft carrying case and test leads.
• Three-Year Warranty: Ensures long-term reliability and peace of mind.

Technical Specifications:

• AC Current (Jaw): 600 A, ±2% ± 5 digits
• AC Current (iFlex): 2500 A, ±3% ± 5 digits
• DC Current: 600 A, ±2% ± 5 digits
• AC Voltage: 600 V, ±1.5% ± 5 digits
• DC Voltage: 600 V, ±1% ± 5 digits
• Resistance: Up to 6000 Ω, ±1% ± 5 digits
• Capacitance: 1 μF to 1000 μF
• Display Features: Large, easy-to-read backlit LCD
• Continuity: Audible detection
• Safety Rating: CAT IV 600 V / CAT III 1000 V
• Wire Capacity: Up to 750 MCM or 2–500 MCM
• Optional Accessories: iFlex™ 10" and 18" flexible probes
