Description

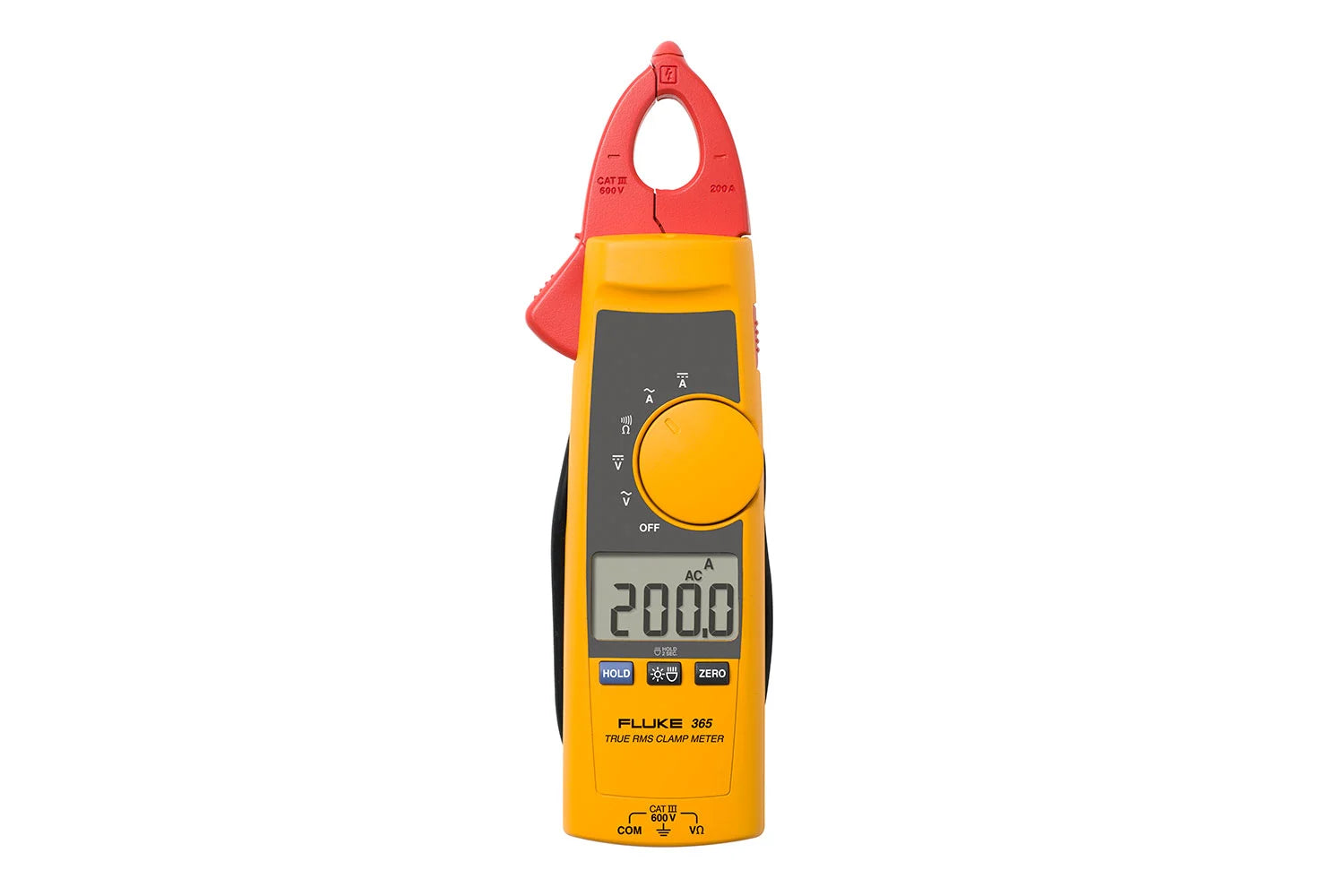

Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter (FLUKE-365)

The Fluke 365 is a high-performance clamp meter designed for industrial and electrical professionals who require a tool capable of measuring AC/DC current up to 200A with precision. Its detachable jaw feature, connected via a flexible lead, allows for easy wire access and enhanced visibility of the display. This meter also includes a built-in flashlight, making it ideal for working in low-light environments. With True RMS technology, it provides accurate readings even in noisy electrical conditions, ensuring reliability and efficiency in every application.

Key Features:

• 200A AC/DC Current Measurement: Accurate current readings with a detachable jaw for improved accessibility.
• 600V AC/DC Voltage Measurement: Wide voltage range with high precision.
• True RMS Technology: Ensures accurate measurements in noisy electrical environments.
• Detachable Jaw: Flexible 900mm cable allows for easy wire access and enhanced display viewing.
• Built-in Flashlight: Illuminates work areas for better visibility.
• Compact & Durable: Designed for use with protective equipment and fits comfortably in hand.
• Automatic Range Selection: Adjusts measurement range without manual switching.

Technical Specifications:

• AC Current: 200.0A (Accuracy: ±2% ±5 digits at 45-65Hz, ±2.5% ±5 digits at 65-400Hz)
• DC Current: 200.0A (Accuracy: ±2% ±5 digits)
• AC Voltage: 600.0V (Accuracy: ±1.5% ±5 digits at 45-400Hz)
• DC Voltage: 600.0V (Accuracy: ±1% ±5 digits)
• Resistance: 600.0Ω / 6000Ω (Accuracy: ±1% ±5 digits)
• Crest Factor: 2.5 @ 125A, 1.55 @ 200A (Add 2% for C.F. >2)
• Jaw Opening: 18mm
• Detachable Jaw Cable Length: 900mm
• Display: Large backlit LCD
• Power Supply: 2 AA batteries (NEDA 15A, IEC LR6)
• Battery Life: Extended operation for long-term use
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +60°C
• Operating Humidity: Non-condensing (≤10°C), 90% RH (10-30°C), 75% RH (30-40°C), 45% RH (40-50°C)
• Operating Altitude: 2000m
• Storage Altitude: 12,000m
• Compliance & Safety: EN/IEC 61010-1 CAT III 600V
• Dimensions (L x W x H): 225 x 65 x 46mm
• Weight: 275g (including batteries)
