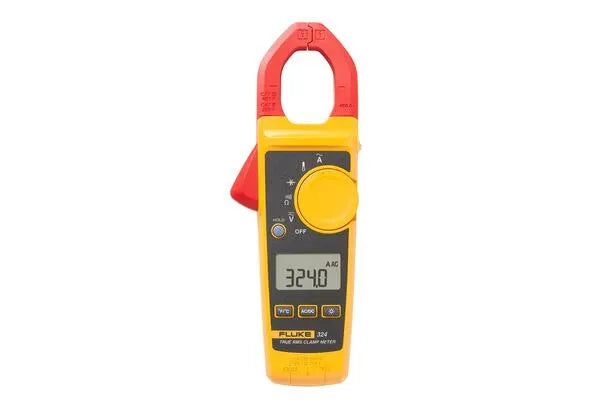

Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Brand:
Fluke
Part Number:
FLUKE-324
400 A AC current, 600 V AC/DC, True-RMS, -10°C to 400°C temperature, up to 1000 μF capacitance, CAT III 600 V / CAT IV 300 V
$269.00

Net 30 or as low as $—/month Apply Now

Quote
DescriptionPropertiesSpecificationsAccessories

True-RMS Electrical Testing with Temperature and Capacitance

The Fluke 324 True-RMS Clamp Meter is designed for electrical troubleshooting in commercial, residential, HVAC, and maintenance applications. Its True-RMS measurement capability supports accurate AC voltage and current readings on non-linear signals, while the compact clamp design provides current measurement without requiring direct circuit interruption.

The meter measures AC current up to 400 A and AC/DC voltage up to 600 V. It also supports resistance, continuity, capacitance, and contact temperature measurements, providing technicians with multiple diagnostic functions in one handheld instrument. A backlit display and data hold function support convenient reading capture in field environments.

Key Benefits and Features

  • True-RMS Measurement: Provides True-RMS AC voltage and current measurements for non-linear signals.
  • 400 A AC Current: Measures AC current across 40.00 A and 400.0 A ranges.
  • Voltage Measurement: Measures AC and DC voltage up to 600.0 V.
  • Temperature and Capacitance: Measures contact temperature from -10.0°C to 400.0°C and capacitance up to 1000 μF.
  • Safety Ratings: Rated CAT III 600 V and CAT IV 300 V.

Ideal Use Cases

  • Commercial electrical troubleshooting
  • Residential electrical maintenance
  • HVAC system diagnostics
  • Routine maintenance and field testing

Technical Specifications

  • Model: Fluke 324
  • AC Current Range: 40.00 A / 400.0 A
  • AC Voltage Range: 600.0 V
  • DC Voltage Range: 600.0 V
  • Resistance Range: 400.0 Ω / 4000 Ω
  • Continuity: ≤ 30 Ω
  • Capacitance: 0 to 100.0 μF / 100 μF to 1000 μF
  • Contact Temperature: -10.0°C to 400.0°C (14.0°F to 752.0°F)
  • Maximum Wire Diameter: 30 mm (600 MCM)
  • Dimensions: 207 x 75 x 34 mm

Equip Your Toolkit with the Fluke 324 Clamp Meter

Choose the Fluke 324 for True-RMS electrical measurements, AC current testing, AC/DC voltage measurement, temperature measurement, capacitance testing, and continuity checks in a compact handheld clamp meter.

Properties

Brand Fluke
SKU Fluke 324
Product Type True-RMS Clamp Meter
Series Fluke 320 Series
Dimensions 207 x 75 x 34 mm
Weight 208 g

Specifications

AC Current Range 40.00 A / 400.0 A
AC Current Accuracy 1.5% ± 5 digits (45 Hz to 400 Hz)
AC Voltage Range 600.0 V
AC Voltage Accuracy 1.5% ± 5 digits
DC Voltage Range 600.0 V
DC Voltage Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω / 4000 Ω
Resistance Accuracy 1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance 0 to 100.0 μF / 100 μF to 1000 μF
Contact Temperature -10.0 °C to 400.0 °C (14.0 °F to 752.0 °F)
AC Response True-RMS
Backlight Yes
Data Hold Yes
Max Wire Diameter 30 mm (600 MCM)
Category Rating CAT III 600 V / CAT IV 300 V

Accessories

Included Fluke 324 True-RMS Clamp Meter
Included TL75 Test Leads
Included Type K Thermocouple
Included Two AAA Batteries (Installed)
Included Soft Case
Compatible Accessories Fluke TL75 Hard Point Test Lead Set
Compatible Accessories Fluke TL175 TwistGuard Test Leads
Compatible Accessories Fluke TLK-225 SureGrip Master Accessory Set
Compatible Accessories Fluke insulated hand tools starter kit
