FLUKE-289-FVF True-RMS Industrial Logging Multimeter with TrendCapture

Log Critical Measurements and Diagnose Faults Faster with the Fluke 289/FVF

The Fluke 289/FVF True-RMS Industrial Logging Multimeter kit combines the high-performance Fluke 289 handheld meter with FlukeView Forms software and essential accessories. This powerful tool is designed to help engineers and technicians capture elusive, intermittent electrical events, visualize data trends directly on the meter or PC, and document results professionally for reliable predictive and preventive maintenance in demanding electrical and industrial environments.

Key Benefits & Features

• Integrated Logging with TrendCapture: Log up to 15,000 recorded events (readings) and review them graphically on the large display using TrendCapture to quickly locate intermittent problems and anomalies without needing a PC.
• Wide Measurement Coverage: Perform true-RMS measurements up to 1000 V AC/DC, 10 A current (20 A for 30 seconds), resistance to 500 MΩ, capacitance to 100 mF, and frequency up to 999.99 kHz for comprehensive plant, lab, and field work.
• Advanced Troubleshooting Tools: Features include a Low-Pass filter for accurate voltage/frequency measurements on adjustable-speed drives, LoZ low-impedance volts mode to eliminate ghost voltages, and Min/Max/Avg recording with 250 µs peak capture to expose fast transients.
• High-Visibility Display: The large 50,000-count 1/4 VGA dot matrix display with white backlight clearly shows multiple on-screen readings and trend graphs, enhancing visibility in low-light environments.

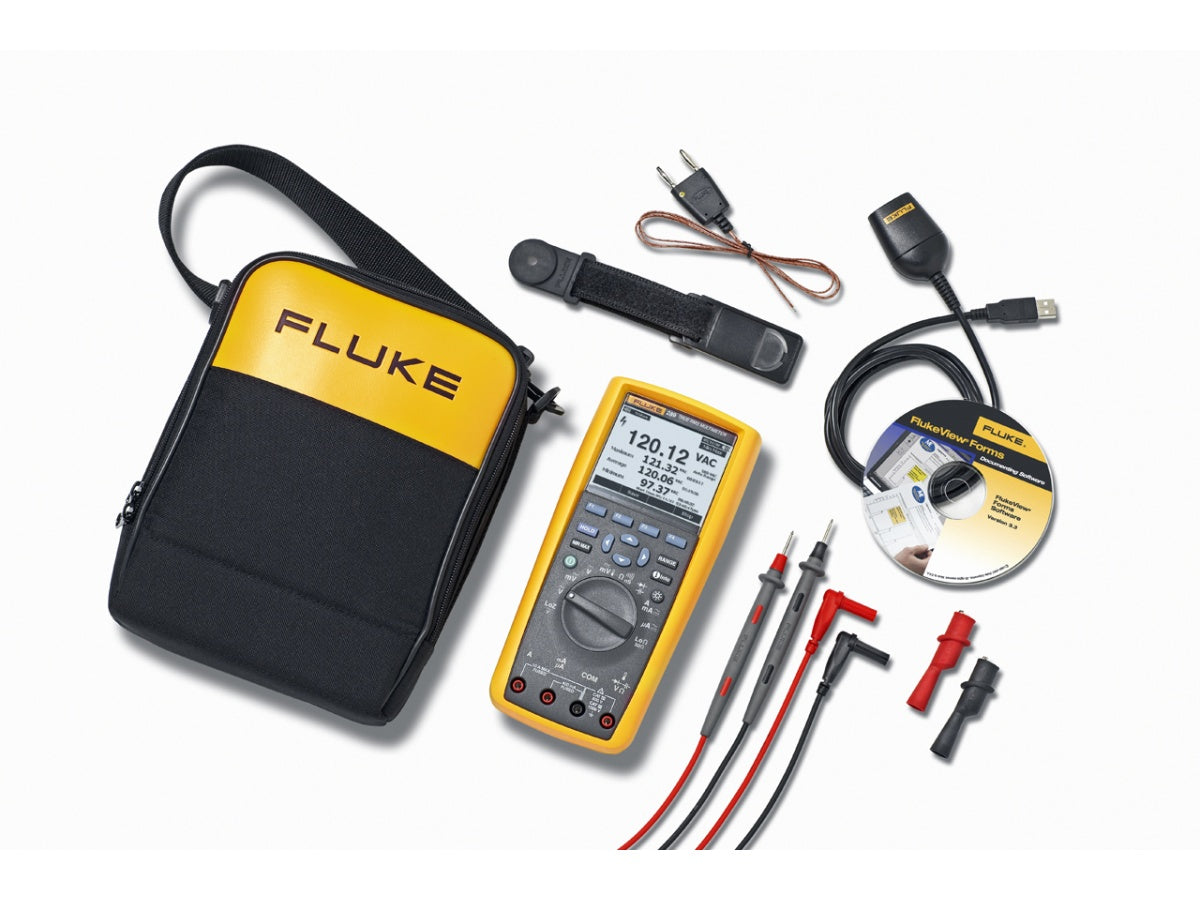

• Productive Combo Kit: Includes the 289 meter, FlukeView Forms software and cable, TL71 silicon test leads, AC175 alligator clips, 80BK-A thermocouple probe, TPAK magnetic hanging kit, C280 soft case, and amp jack plug set.

Ideal Use Cases

• Industrial Automation and Control Panels: Use the logging function and TrendCapture to verify process stability, detect signal drift, and diagnose complex electrical issues.
• Power Distribution and Facility Maintenance: Critical for diagnosing overloads, harmonics, and intermittent voltage/current events on power systems.
• Field Service on Electro-Mechanical Equipment: The rugged design and TPAK Magnetic Hanging Kit improve safety and provide hands-free operation for working on motors and other machinery.

Technical Specifications

• DC/AC Voltage Range: 50 mV to 1000 V, basic DC accuracy ±0.025%.
• DC/AC Current Range: 500 µA to 10 A (with 20 A for 30 seconds capability).
• Resistance Range: 50 Ω to 500 MΩ. Features a 50 Ω range with 1 mΩ resolution and 10 mA source current for motor winding and contact resistance measurements.
• Capacitance Range: 1 nF to 100 mF.
• Frequency Range: 99.999 Hz to 999.99 kHz, supported by a 100 kHz true-RMS AC bandwidth.
• Temperature Range (Excluding Probe): -200.0°C to 1350.0°C.
• Logging Memory: Up to 15,000 recorded events with adjustable recording and auto hold thresholds.
• Power and Size: Operates on six AA alkaline batteries, with a size of approx. 22.2 cm x 10.2 cm x 6 cm, and a weight of 870.9 g.
• Kit SKU: FLUKE-289/FVF True-RMS Industrial Logging DMM with FlukeView Forms combo.

Deploy Trusted Fluke Logging Capability Across Sites

Equip your maintenance team with the Fluke 289/FVF kit to capture crucial electrical data, visualize performance trends, and confidently support evidence-based maintenance decisions. Order the Fluke 289/FVF Industrial Logging Multimeter kit today.

Model	Fluke 289/FVF
Product Type	True-rms Industrial Logging Multimeter with TrendCapture and FlukeView Forms software
Meter Type	Digital
Measurement Functions	AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, temperature
Display	50,000-count, 1/4 VGA dot matrix display with white backlight
True-rms AC Bandwidth	100 kHz
DC Voltage Range	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
AC Voltage Range	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
DC Current Range	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
AC Current Range	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Resistance Range	50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Capacitance Range	1.000 nF, 10.00 nF, 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100 mF
Frequency Range	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Temperature Range	-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) (excluding probe)
Maximum Voltage to Earth Ground	1000 V
Power	Six AA alkaline batteries (NEDA 15A IEC LR6)
Battery Life	100 hours minimum; 200 hours in logging mode
Size (H × W × D)	22.2 × 10.2 × 6 cm (8.75 × 4.03 × 2.38 in)
Weight	870.9 g (28 oz)
Operating Temperature	-20 °C to 55 °C
Storage Temperature	-40 °C to 60 °C

DC Voltage Measurement	Ranges 50.000 mV to 1000.0 V; basic accuracy ±0.025%.
AC Voltage Measurement	Ranges 50.000 mV to 1000.0 V; basic accuracy ±0.4% (true-rms).
DC Current Measurement	Ranges 500.00 µA to 10.000 A; basic accuracy ±0.15%.
AC Current Measurement	Ranges 500.00 µA to 10.000 A; basic accuracy ±0.7% (true-rms).
Temperature Measurement	Range -200.0°C to 1350.0°C (-328.0°F to 2462.0°F), excluding probe; accuracy ±1.0%.
Resistance Measurement	Ranges 50.000 Ω to 500.0 MΩ; basic accuracy ±0.05%.
Capacitance Measurement	Ranges 1.000 nF to 100 mF; basic accuracy ±1.0%.
Frequency Measurement	Ranges 99.999 Hz to 999.99 kHz; basic accuracy 0.005%.
Conductance	50.00 nS.
Continuity	Continuity beeper with relative mode to remove test lead resistance from low ohms.
Logging / Recording	On-board logging with up to 15,000 recorded events; interval and event logging; log to PC via isolated optical interface; real-time clock for time-stamped readings.
TrendCapture / Display	TrendCapture graphical display of logged sessions with up to 14x zoom; multiple on-screen displays on large 50,000-count 1/4 VGA white-backlit screen.
Filters & Measurement Modes	Selectable AC filter (smoothing mode); low pass filter for adjustable-speed motor drives; LoZ low-impedance volts function for ghost voltage elimination.
Min/Max/Statistics	Min/Max/Avg recording, duty cycle, pulse width, peak capture to 250 µs, auto/touch hold, reading memory.
Relative Humidity	0-90% (0-37°C); 0-65% (37°C-45°C); 0-45% (45°C-55°C).
EMC	EN61326-1.
Vibration / Shock	Random vibration per MIL-PRF-28800F Class 2; 1 m drop per IEC/EN 61010-1 2nd Edition.

Included	289 Multimeter; FlukeView Forms Software with cable; AC175 Alligator Clips; 80BK-A Thermocouple Probe; TL71 Silicon Test Lead Set; TPAK Magnetic Hanging Kit; C280 Soft Case; Amp Jack Plug Set
Optional Accessories	FVF-SC2 FlukeView Forms Software with Cable; TLK289 Industrial Test Lead Set; i400 AC Current Clamp; i410 AC/DC Current Clamp; 80BK Integrated DMM Temperature Probe; TPAK Magnetic Hanging Kit; C280 Soft Case
