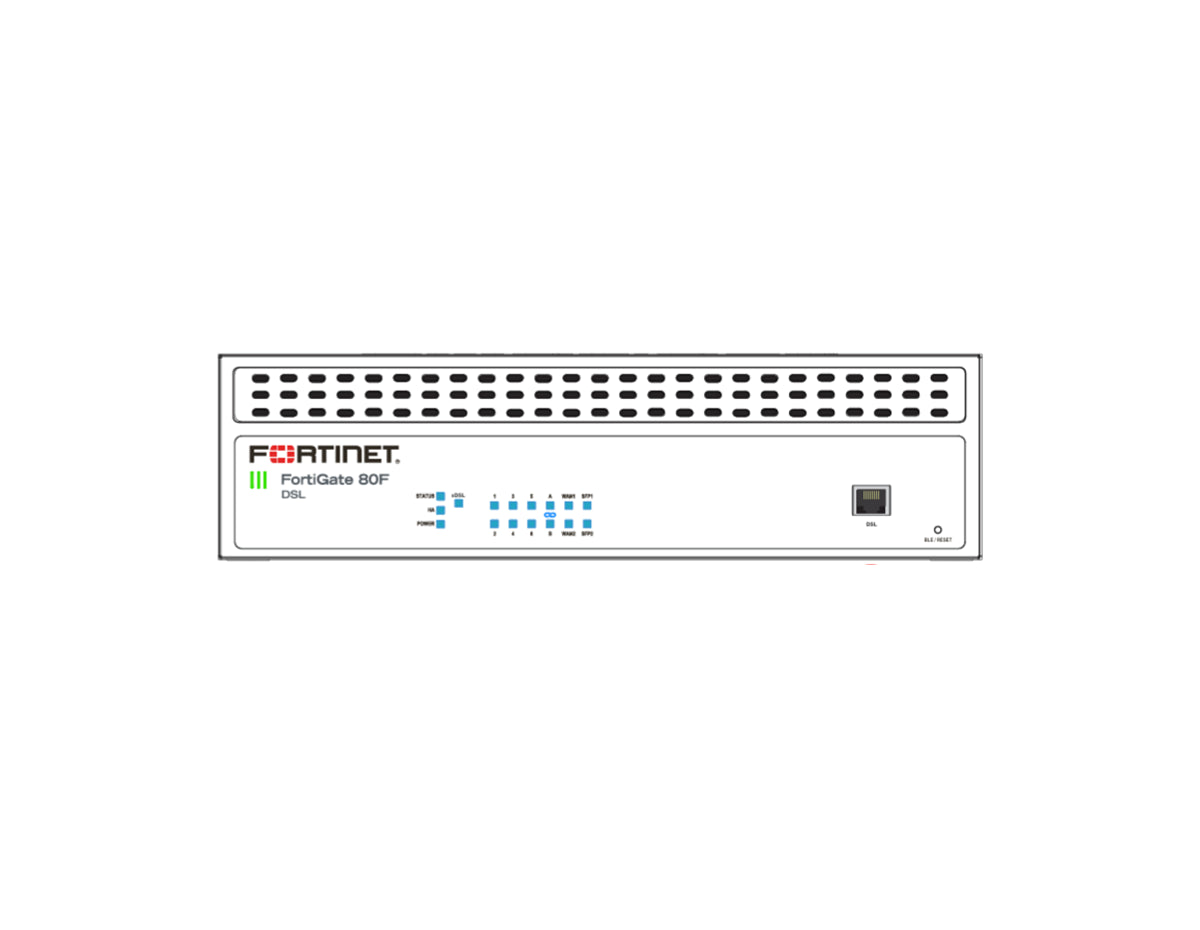

The FortiGate 80F-DSL integrates specialized broadband connectivity directly into the security appliance, offering a seamless all-in-one solution for branch offices and distributed enterprises relying on DSL connectivity. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model removes the complexity and point-of-failure risks associated with external modems. This consolidation allows businesses to leverage low-cost broadband lines for primary connectivity or backup WAN links while maintaining enterprise-grade security controls through the Fortinet Security Fabric.
Despite its added modem capabilities, the FG-80F-DSL retains the high-performance architecture of the 80F series, driven by the patented SP4 SD-WAN ASIC. It provides up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, ensuring that secure connectivity does not compromise network speed. The device supports integrated SD-WAN capabilities, including application identification and steering, making it an ideal choice for hybrid WAN deployments requiring legacy DSL compatibility.
Integrated DSL Connectivity with Converged Security
Key Benefits
- Integrated DSL Modem: Built-in RJ11 WAN port supports VDSL2, ADSL2+, and legacy standards (Annex A/B/I/J/M/L) for direct broadband connection.
- ASIC-Accelerated Performance: Powered by the SP4 ASIC to deliver industry-leading firewall and SD-WAN performance.
- Consolidated Footprint: Combines modem, routing, and firewall functions into a single compact appliance.
- Secure SD-WAN: Supports deep SSL inspection and application identification and steering.
- High Port Density: Features 6 internal GE RJ45 ports and 2 FortiLink ports (default), plus 2 GE RJ45/SFP shared media ports and the DSL interface.
- Unified Management: Simplifies deployment and monitoring via FortiManager and FortiGate Cloud.
Ideal Use Cases
- Perimeter Protection: Apply security policies and inspect traffic for branch and distributed enterprise sites using DSL connectivity.
- Secure SD-WAN: Enable integrated SD-WAN at the WAN edge with consolidated networking and security.
- Secure Branch: Extend protection across WAN, LAN, and connected access infrastructure in branch locations.
Technical Specifications Summary
- IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
- IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps (recommended maximum 200 concurrent users, tunnel mode)
- SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps
- Concurrent Sessions (TCP): 1.5 Million
- New Sessions/Second (TCP): 45,000
- Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
- Power Consumption (Average / Maximum): 28.0 W / 31.6 W
- Dimensions and Operating Environment: 60 x 216 x 178 mm, 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity
Upgrade Your Network Security
Simplify your branch network with the integrated DSL capabilities of the FortiGate 80F-DSL.
