FORTINET FG-80F-BDL-950-60 FIREWALL
| Model: | FG-80F-BDL-950-60 |
| Detail: |
|
| List Price: | |
| Price: | $2,275.00 |
| You Save: | $3,806.75 (63% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

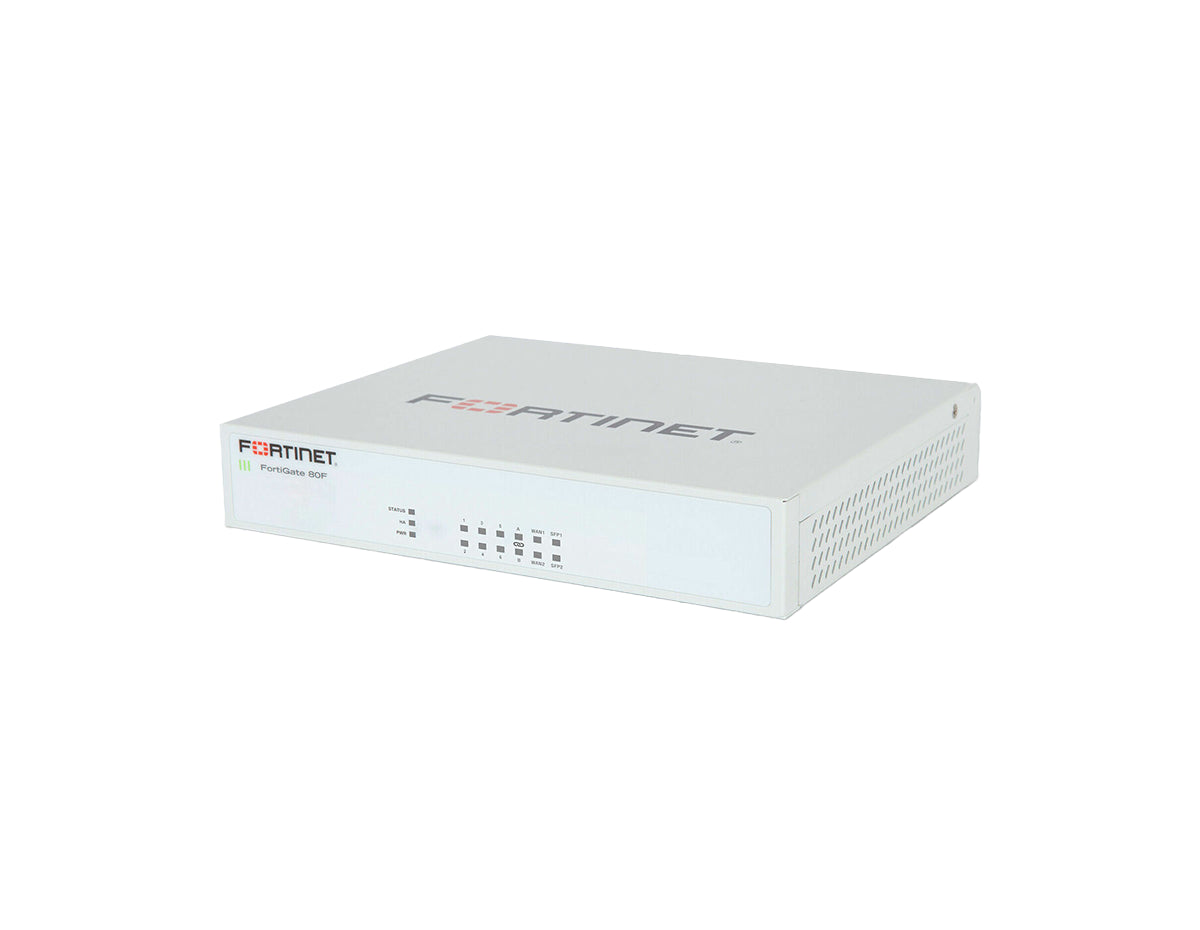

Fortinet FG-80F-BDL-950-60 Firewall
The FortiGate FG-80F-BDL-950-60 provides comprehensive network security and SD-WAN functionality for mid-sized enterprises. It offers a firewall throughput of 10 Gbps and threat protection throughput of 900 Mbps, ensuring optimal performance. With 6x GE RJ45 ports and 2x WAN GE RJ45 ports, the device is built for flexible integration. It also includes a 5-year subscription to FortiCare and FortiGuard UTM services for consistent protection and support.
Key Features:
- 10 Gbps firewall throughput for reliable network security
- 6x GE RJ45 ports and 2x WAN GE RJ45 ports for versatile connectivity
- Secure SD-WAN powered by ASIC SOC4 for high performance
- Includes 5-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-80F-BDL-950-60 datasheet and compatible accessories.
Accessories
| SP-FG60E-PDC-5 |
Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
|
| SP-FWF80F-PDC-5 |
Pack of 5 AC power adaptors for FWF-80/81F-2R, power cable SP-FG60CPCOR-XX sold separately
|
| SP-FG80E-POE-PDC |
AC power adaptor for FG-60E-POE, FG-80E-POE, FG-81E-POE, FG-80/81F-POE, FWF-81F-2R-POE power cable SP-FG60CPCOR-XX sold separately
|
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models.
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
Specifications
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 715 Mbps |
| Application Control Throughput | 1.8 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| CAPWAP Throughput | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.65 x 8.5 x 7 |
| Form Factor | Desktop |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100240V AC, 50/60 Hz
|
| Maximum Current |
115VAC/0.4A, 230VAC/0.2A
|
| Power Consumption (Average / Maximum) | 12.69 W / 15.51 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-80F-BDL-950-60 |
| Description |
8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports
|
| Product Family | Early Level Firewalls |
| Product Type | Firewall |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 5 Years |
