The FortiGate 51G-SFP-POE-BDL-950-60 bundle streamlines SD-Branch deployments by combining the FortiGate 51G-SFP-POE firewall with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-year term). Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with firewall throughput of 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets). With 64GB of internal SSD storage, this bundle adds onboard storage capacity within a compact desktop form factor.
Designed for flexibility and reduced footprint, the unit features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated GE SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including WAN2 and FortiLink), providing 60W of total PoE budget to help power compatible PoE+ devices directly from the firewall.
Converged Security with Storage and PoE+
Key Benefits
- UTP Security Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-year term).
- Integrated SSD Storage: 64GB of onboard SSD storage.
- Integrated Power over Ethernet: Provides a 60W total PoE budget across PoE+ capable ports.
- SP5 ASIC Acceleration: Delivers strong performance with IPS throughput up to 2.25 Gbps and NGFW throughput up to 1.25 Gbps.
- Fiber & Copper Connectivity: Includes 1x GE SFP port for fiber backhaul alongside GE RJ45 WAN and LAN connectivity.
- Silent Operation: Fanless design supports quiet deployment (0 dBA) in desktop and open-office environments.
Ideal Use Cases
- Perimeter Protection: Inspects and controls traffic using defined security policies for distributed sites.
- Secure SD-WAN: Consolidates SD-WAN and security within a single FortiOS-powered firewall appliance.
- Secure Branch: Extends security to WAN, LAN, and WLAN deployments with integrated switch and access point connectivity.
- Distributed Enterprise Sites: Supports compact, fanless deployment where space and noise constraints matter.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- IPS Throughput: 2.25 Gbps
- NGFW Throughput: 1.25 Gbps
- Threat Protection Throughput: 1.1 Gbps
- Firewall Latency: 2.42 μs (64 byte UDP packets)
- Concurrent Sessions (TCP): 720,000
- New Sessions/Second (TCP): 85,000
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- SSL Inspection Throughput: 1.3 Gbps

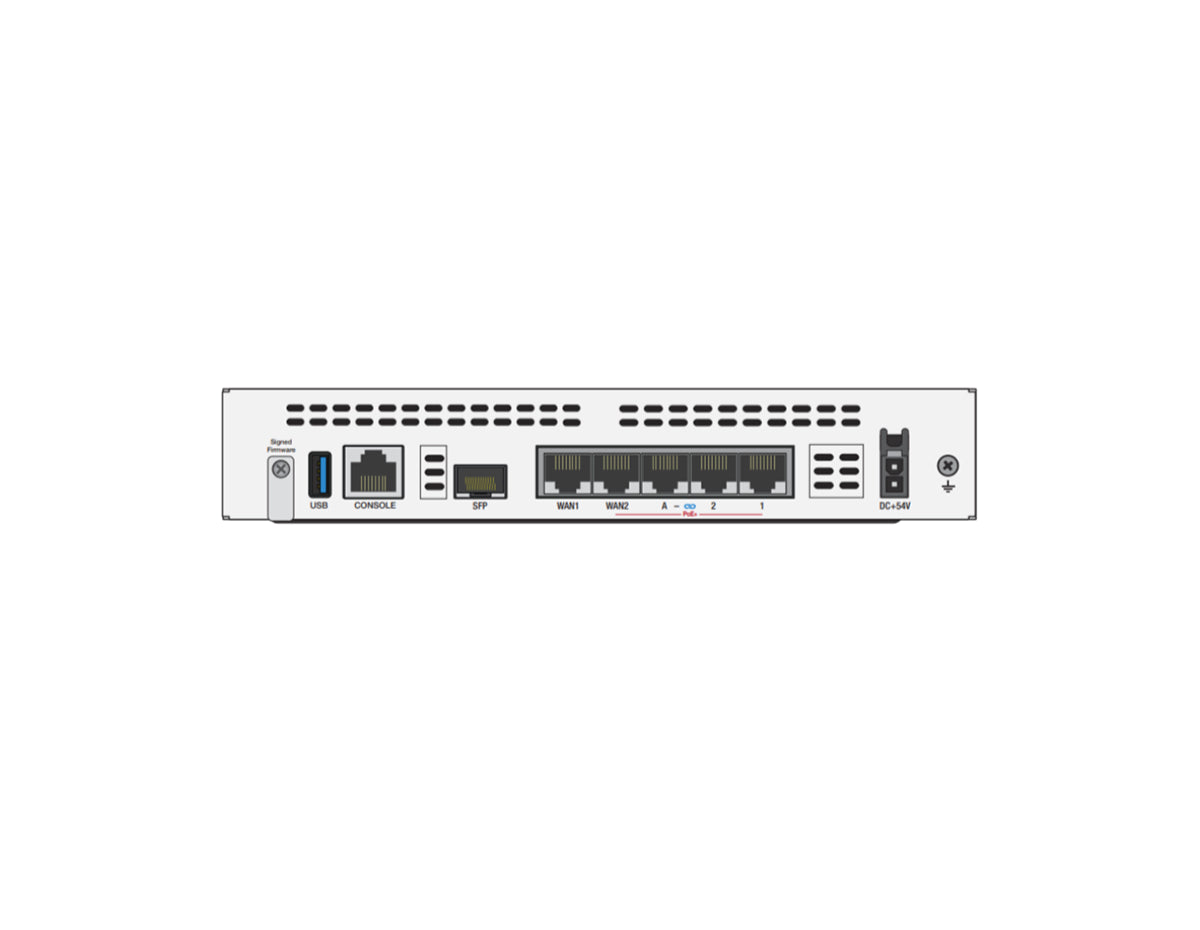

- Interfaces: 2x GE RJ45 WAN (WAN2 PoE+), 1x GE RJ45 FortiLink (PoE+), 2x GE RJ45 Ethernet (PoE+), 1x GE SFP, 1x RJ45 Console, 1x USB
- PoE Power Budget: 60 W total (maximum 30 W per PoE+ port, 802.3at)
- Power Consumption (Average / Maximum): 78.7 W / 78.1 W; Heat Dissipation: 268.54 BTU/h
Upgrade Your Network Security
Deploy the FortiGate 51G-SFP-POE-BDL-950-60 bundle today for streamlined operations and comprehensive protection with FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
