The FortiGate 50G-SFP-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet Secure SD-WAN ASIC SP5, it delivers high-speed inspection while providing integrated PoE+ capabilities to support essential downstream devices such as wireless access points and IP phones directly from the firewall. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 3-year contract term.
Designed for flexibility and reduced hardware footprint, the FG-50G-SFP-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including a PoE+ WAN port and FortiLink), allowing for diverse connectivity options and streamlined deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Powers compatible devices over PoE+ to reduce the need for separate injectors and simplify installations.
- SP5 ASIC Acceleration: Built on Fortinet’s Secure SD-WAN ASIC SP5 to enhance performance for security and SD-WAN use cases.
- Fiber & Copper Connectivity: Supports fiber uplinks via SFP alongside RJ45 WAN/LAN connectivity for flexible deployments.
- Unified Management: Centralizes control of networking, security, and connected devices through the FortiOS operating system.
- Silent Operation: Fanless design supports quiet desktop or open-office deployments.
- Bundle Coverage Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (3-year contract) included with the firewall.
Ideal Use Cases
- SD-Branch Deployment: Powers and secures branch infrastructure like Wi-Fi APs and VoIP phones with a single consolidated device.
- Retail Point of Sale: Secures transaction data while powering surveillance cameras or IP-connected retail devices.
- Small Office Connectivity: Provides fiber uplink capability (SFP) and local wired connectivity with enterprise-grade protection.
- Remote Work: Delivers secure, high-performance VPN access for remote employees with simplified hardware requirements.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets).
- Enterprise Traffic Mix Security: IPS 2.25 Gbps, NGFW 1.25 Gbps, Threat Protection 1.1 Gbps.
- Latency & Capacity: 2.42 μs firewall latency, 720,000 concurrent sessions, 85,000 new sessions/second, 2,000 firewall policies.
- IPsec VPN: 4.5 Gbps (512 byte), supports 200 gateway-to-gateway tunnels and 250 client-to-gateway tunnels.
- SSL Inspection: 1.3 Gbps (IPS, avg. HTTPS).

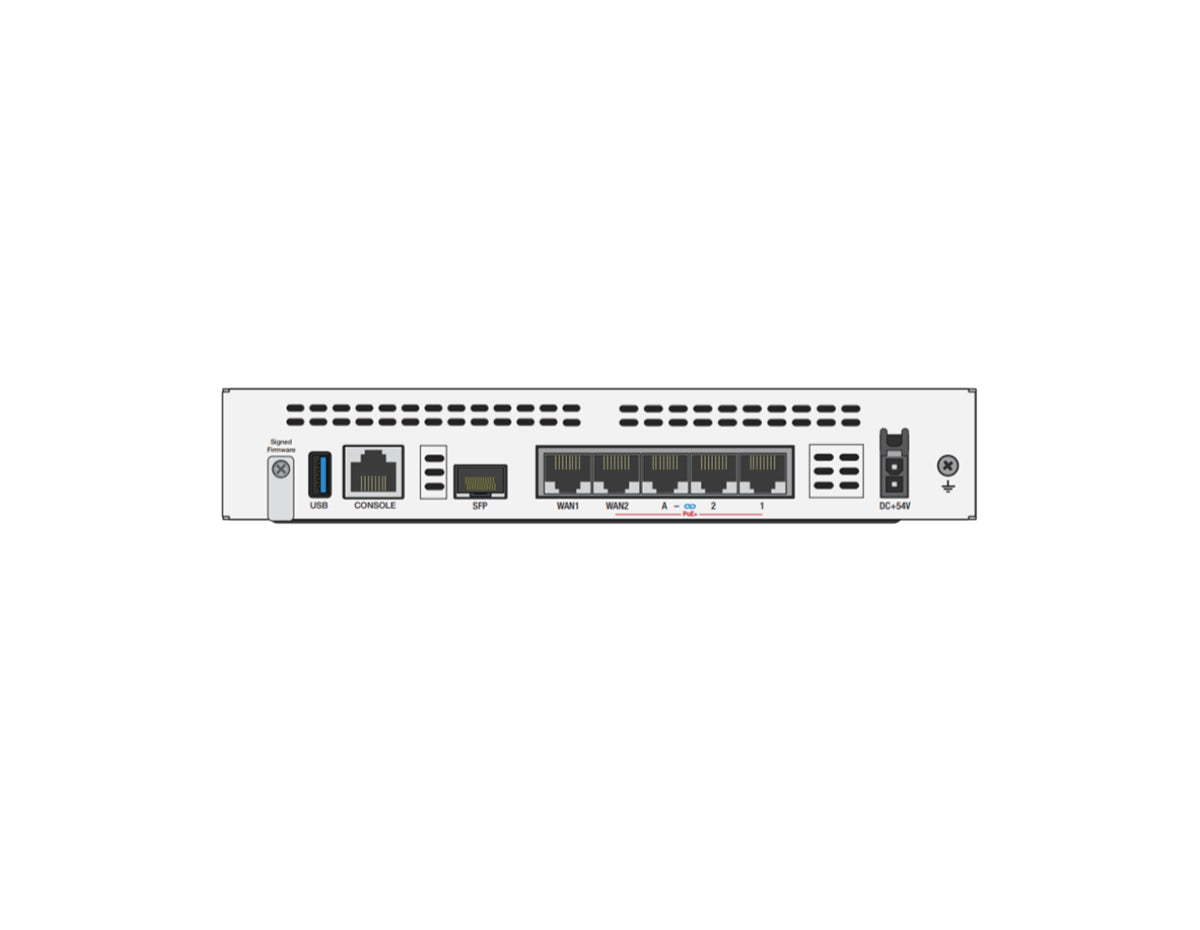

- Interfaces: 1x GE SFP, 1x GE RJ45 WAN, 1x GE RJ45 PoE+ WAN, 3x GE RJ45 PoE+ ports.
- PoE Power: 60 W total available PoE power budget.
- Power: 54VDC input, 75.4 W / 76.3 W power consumption (average/maximum).
- Physical: Desktop form factor, 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm).
- Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity, fanless (0 dBA).
Upgrade Your Network Security
Deploy the FortiGate 50G-SFP-POE Bundle (FG-50G-SFP-POE-BDL-950-36) today for a streamlined, powerful, and PoE+ capable security solution, including FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage for 3 years.
