The FortiGate 50G-SFP-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet Secure SD-WAN ASIC SP5, this appliance delivers high-speed inspection while providing integrated PoE+ capabilities to support essential downstream devices such as wireless access points and IP phones directly from the firewall. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 1-year contract term.
Designed for flexibility and reduced footprint, the FG-50G-SFP-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes a dedicated SFP port for fiber uplinks and multiple PoE+ capable RJ45 ports (including a PoE+ WAN port and FortiLink), allowing for diverse connectivity options and streamlined deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Powers compatible devices over PoE+ to reduce the need for separate injectors and simplify installations.
- SP5 ASIC Acceleration: Built on Fortinet’s Secure SD-WAN ASIC SP5 to enhance performance for security and SD-WAN use cases.

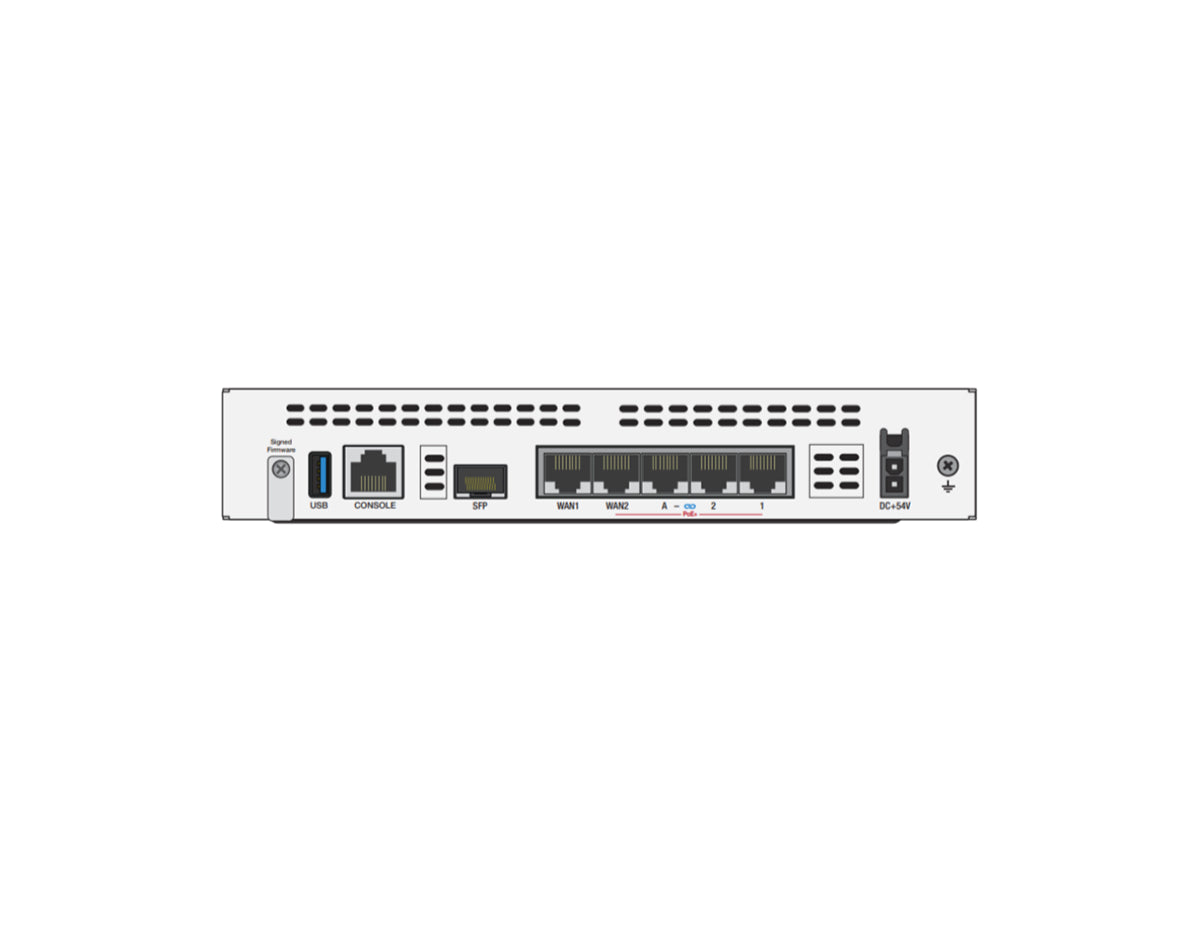

- Fiber & Copper Connectivity: Supports fiber uplinks via SFP alongside RJ45 WAN/LAN connectivity for flexible deployments.
- Unified Management: Centralizes control of networking, security, and connected devices through the FortiOS operating system.
- Silent Operation: Fanless design supports quiet desktop or open-office deployments.
- Bundle Coverage Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1-year contract) included with the firewall.
Ideal Use Cases
- SD-Branch Deployment: Powers and secures branch infrastructure like Wi-Fi APs and VoIP phones with a single consolidated device.
- Retail Point of Sale: Secures transaction data while powering surveillance cameras or IP-connected retail devices.
- Small Office Connectivity: Provides fiber uplink capability (SFP) and local wired connectivity with enterprise-grade protection.
- Remote Work: Delivers secure, high-performance VPN access for remote employees with simplified infrastructure requirements.
Technical Specifications Summary
- Firewall throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps.
- IPS throughput (Enterprise Mix): 2.25 Gbps.
- NGFW throughput: 1.25 Gbps.
- Threat protection throughput: 1.1 Gbps.
- IPsec VPN throughput (512 byte): 4.5 Gbps.
- SSL inspection throughput (IPS, avg. HTTPS): 1.3 Gbps.
- Firewall latency (64 byte UDP): 2.42 μs.
- Sessions capacity: 720,000 concurrent sessions (TCP), 85,000 new sessions/second (TCP).
- PoE power budget: 60 W total available PoE power (max 30 W per PoE/+ port).
- Power and thermals: 54VDC input, 75.4 W / 76.3 W power consumption (avg/max), 260.48 BTU/h heat dissipation.
- Physical: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), desktop form factor.
- Environment: 32°F to 104°F (0°C to 40°C) operating, fanless 0 dBA.
Upgrade Your Network Security
Deploy the FortiGate 50G-SFP-POE Bundle (FG-50G-SFP-POE-BDL-950-12) today for a streamlined, powerful, and PoE-capable firewall, including FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage for 1 year.
