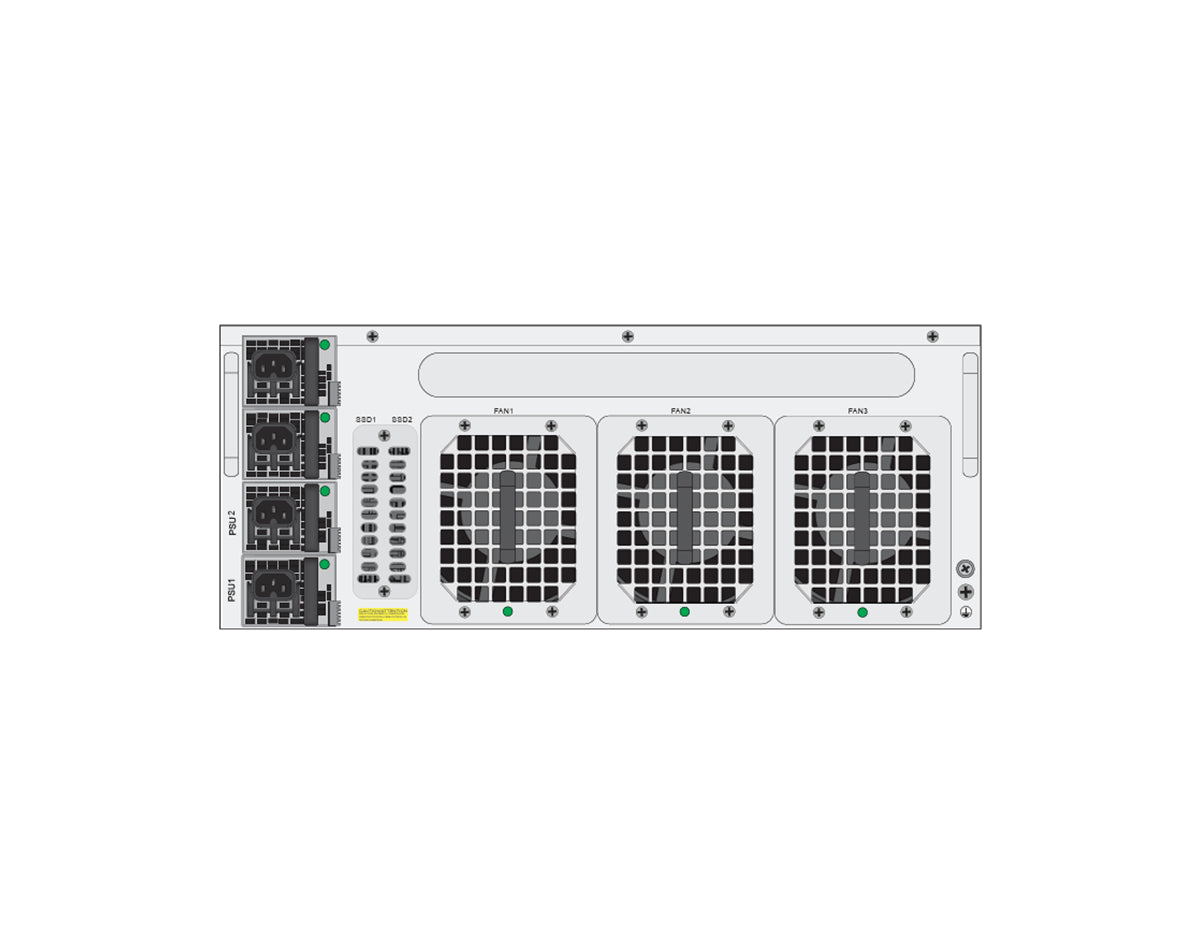

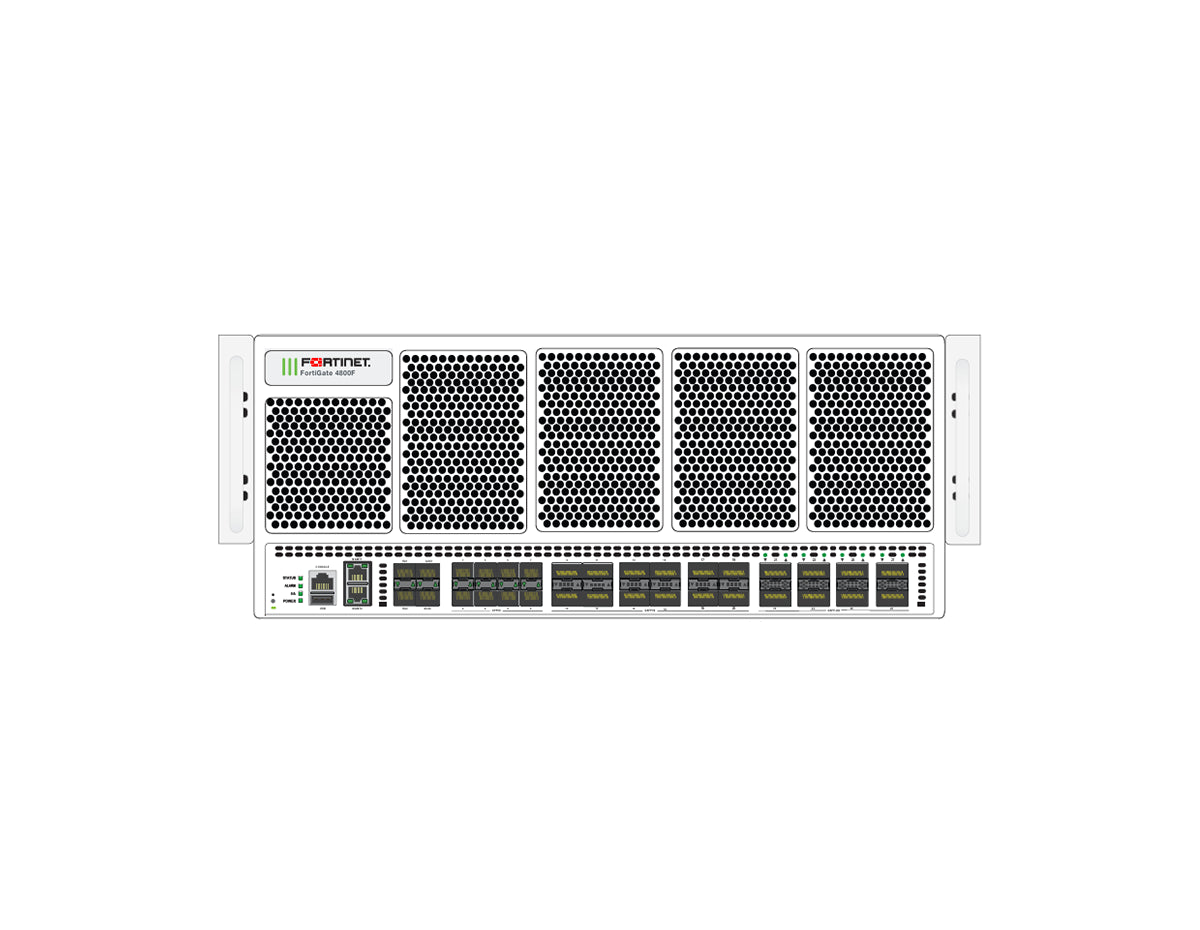

The Fortinet FortiGate 4801F-DC-NEBS is an ultra-high-performance Next-Generation Firewall (NGFW) built for demanding carrier and hyperscale data center environments. This model supports NEBS Level 3 deployment requirements and DC power infrastructure for telecommunications facilities. Powered by Fortinet's patented SPU NP7 and CP9 security processing units, the FG-4801F-DC-NEBS delivers up to 3.1 Tbps firewall throughput with ultra-low latency for high-volume traffic security at scale.
Designed for high-speed interconnectivity and resiliency, this appliance includes 8x 400GE/200GE/100GE/40GE QSFP-DD slots and 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots to support high-bandwidth backbones and data center interconnects. It integrates 2x 1.92TB SSDs for onboard storage and supports a DC power input range of -72V to -40V with redundant hot-swappable power supplies for critical infrastructure deployments.
Carrier-Grade Security with NEBS Compliance and 400GE Connectivity
- NEBS Level 3 Compliant: Designed to meet carrier-class requirements for deployment in telecommunications environments.
- 400GE/200GE Connectivity: Equipped with 8x 400GE/200GE/100GE/40GE QSFP-DD slots for high-bandwidth data center and core network segmentation.
- Hyperscale Session Capacity: Supports up to 280 million concurrent sessions, scalable up to 1.8 billion with the Hyperscale Firewall License.
- Integrated Storage: Includes 2x 1.92 TB SSDs for onboard storage.
- DC Power Support: -72V to -40V DC input with up to 40.94A @ -48VDC maximum current for telecom power environments.
- Consolidated Security Services: Delivers NGFW, IPS, threat protection, and SSL inspection capabilities within a single high-performance platform.
- Telecommunications Carriers: Securing 4G/5G mobile core and carrier networks with NEBS-compliant design and DC power support.
- Next Generation Firewall (NGFW): AI/ML-powered security services with real-time SSL inspection (including TLS 1.3).
- Segmentation: Dynamic segmentation with ultra-scalable, low latency VXLAN segmentation across hybrid environments.
- Secure SD-WAN: Unified networking and security powered by one OS and a unified management framework.
- IPS Throughput (Enterprise Mix): 87 Gbps
- NGFW Throughput: 77 Gbps
- Threat Protection Throughput: 75 Gbps
- IPv4/IPv6 Firewall Throughput (1518/512/64 or 86 byte UDP): 3.1 / 3.1 / 0.93 Tbps
- Firewall Latency / Packet Rate (64 byte UDP): 3.6 µs / 1396 Mpps
- IPsec VPN Throughput (512 byte) / Tunnels: 800 Gbps; 40,000 (G2G) / 200,000 (Client)
- SSL Inspection / SSL-VPN: 63 Gbps SSL inspection; 18 Gbps SSL-VPN; 30,000 concurrent SSL-VPN users (recommended max)
- Interfaces: 8x QSFP-DD (400/200/100/40GE), 12x QSFP56/QSFP28/QSFP+ (200/100/40GE), 8x SFP56/SFP28/SFP+/SFP (50/25/10/GE) + 4x HA/Aux, 2x 10GE/GE RJ45 mgmt, 1x USB 3.0, 1x console
- Storage / Platform Security: 2x 1.92 TB SSD; TPM and BLE supported
- Power / Environment / Certifications: -72V to -40V DC; 1528.8 W avg / 1964.9 W max; 0°C to 50°C operating; USGv6/IPv6; NEBS Level 3 compliant
