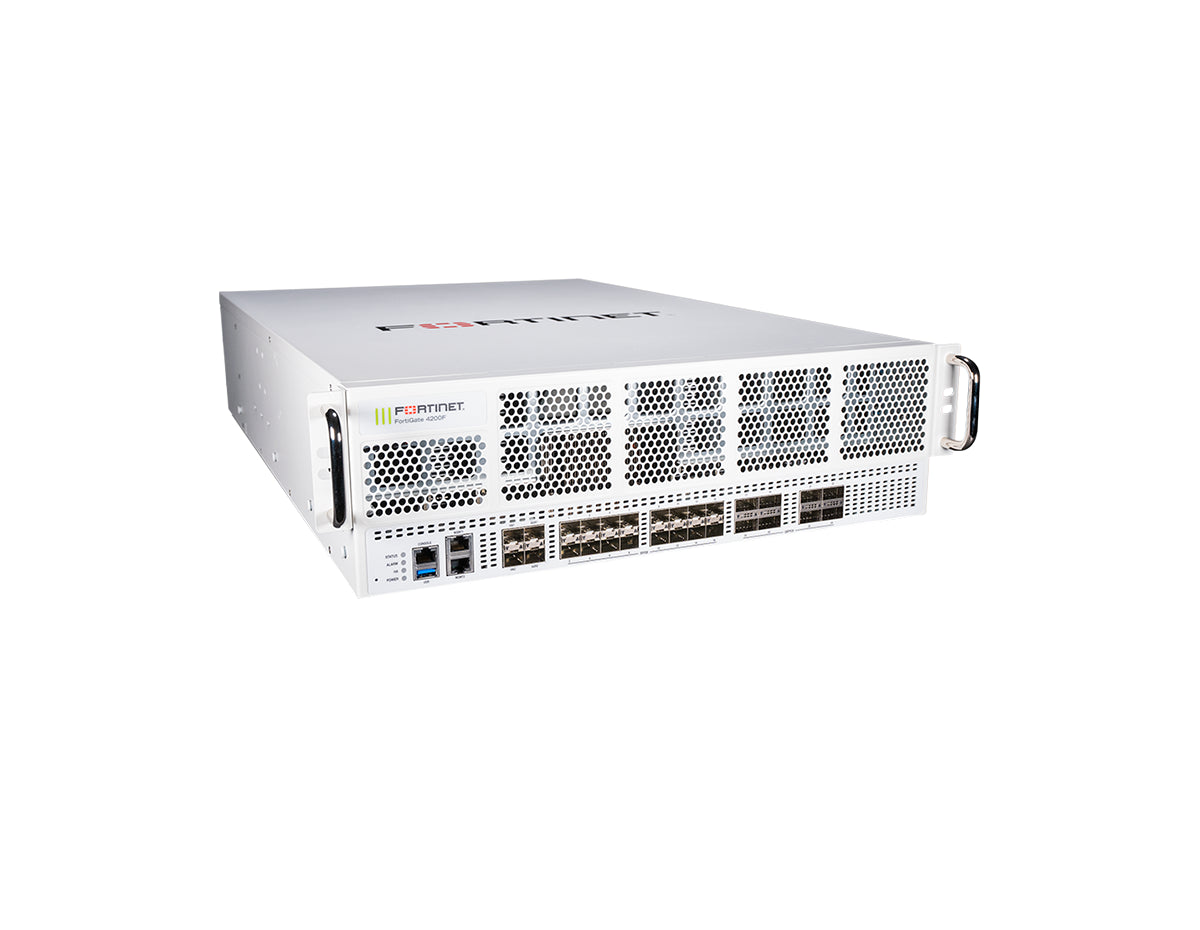

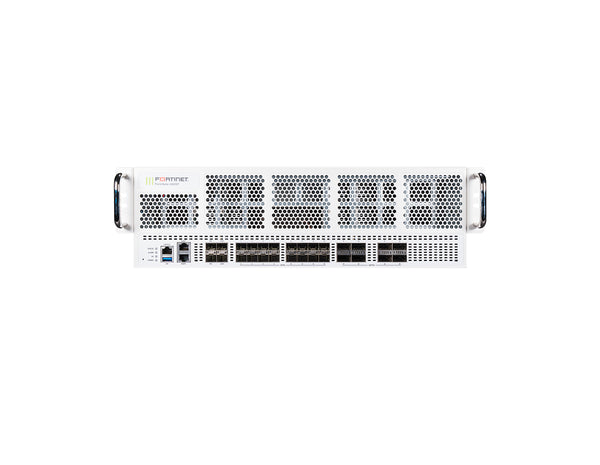

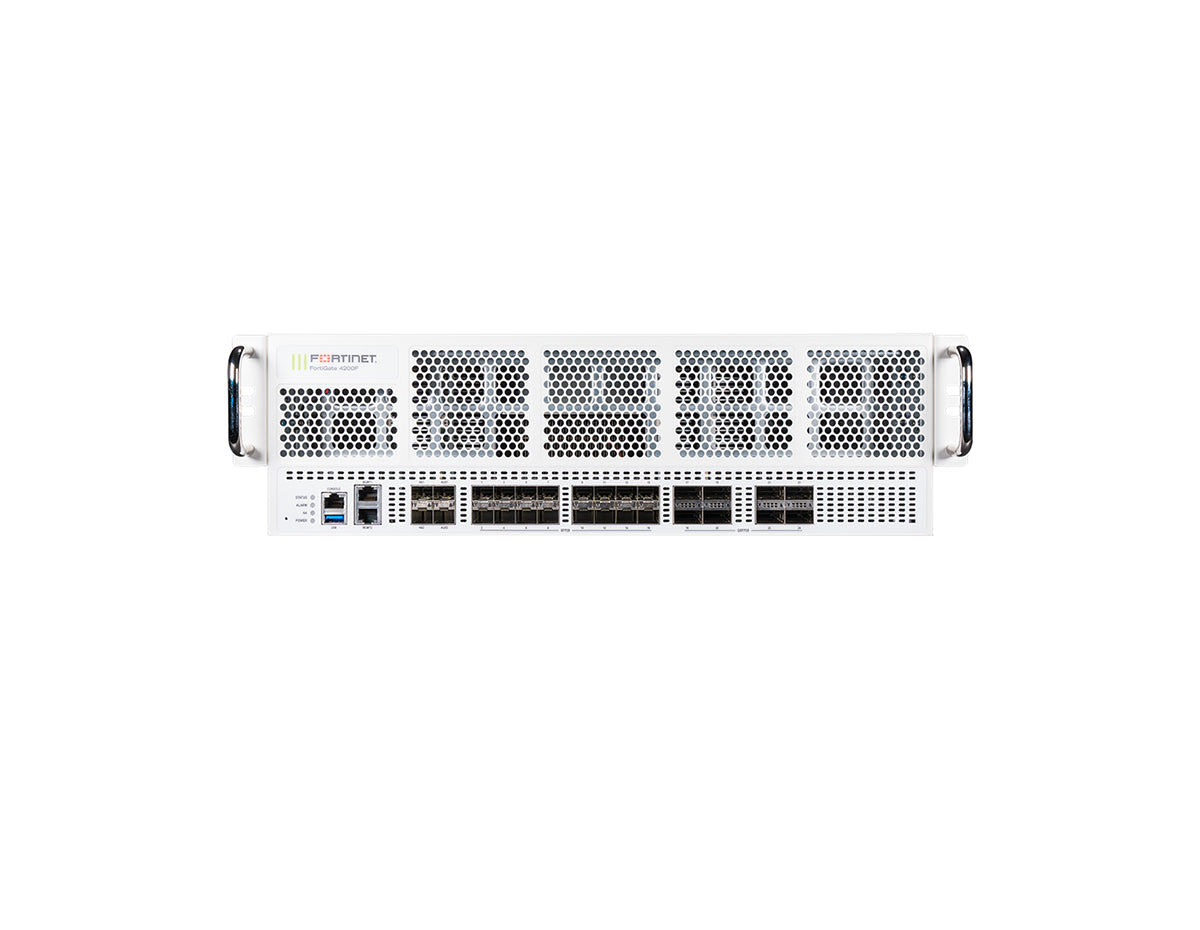

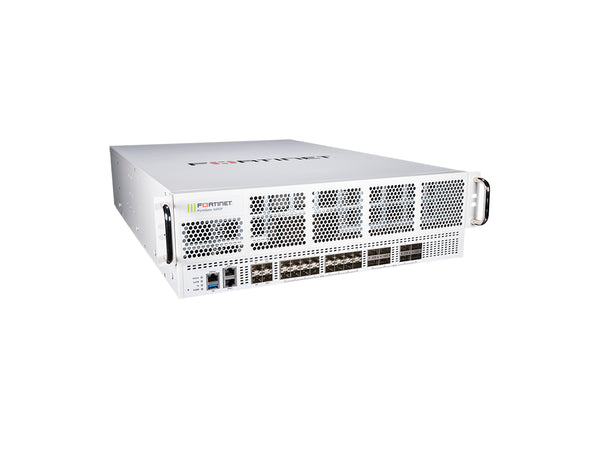

The Fortinet FortiGate 4201F-DC is a high-performance firewall optimized for data centers and service provider environments requiring DC power and onboard storage. Powered by Fortinet's patented SPU NP7 and CP9 processors, it delivers up to 800 Gbps of firewall throughput and low latency. This 3 RU rackmount appliance features 2x 1.92 TB internal SSDs for local logging and caching, along with extensive connectivity including 8x 100GE/40GE QSFP28/QSFP+ slots, 16x 25GE/10GE SFP28 slots, 2x 25GE HA slots, and 2x 25GE AUX slots (plus 2x GE RJ45 management ports).
Designed for mission-critical environments, the FG-4201F-DC supports up to 210 million concurrent TCP sessions and up to 450 million concurrent TCP sessions with the Hyperscale Firewall License, and offers high-speed connectivity through 8x 100 GE and multiple 25 GE slots. The inclusion of -48V to -60V DC power inputs ensures seamless integration into telecommunications and industrial power infrastructures. With integrated Zero Trust Network Access (ZTNA) enforcement and AI/ML-powered FortiGuard services, it provides a unified security posture that protects against sophisticated threats across hybrid and distributed networks.
Hyperscale Security with Onboard Storage and DC Power
- Integrated Storage: Features 2x 1.92 TB internal SSDs for local logging and reporting.
- DC Power Ready: Built with redundant -48V to -60V DC power supplies, specifically designed for telco and data center environments.
- Extreme Throughput: Achieves 800 Gbps of firewall throughput and 52 Gbps of IPS throughput.
- Hyperscale Scalability: Supports up to 210 million concurrent TCP sessions and up to 450 million concurrent TCP sessions with the Hyperscale Firewall License.
- High Port Density: Includes 8x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, plus 2x HA and 2x AUX slots.
- Advanced Protection: FortiGuard AI-powered security services provide protection against modern threats across web, content, and applications.
- Hardware Acceleration: Utilizes SPU NP7 and CP9 technology to accelerate critical functions including SSL inspection and VXLAN termination.
- Next Generation Firewall (NGFW): Use FortiGuard AI-powered security services and real-time SSL inspection (including TLS 1.3) for visibility and protection across users, devices, and applications.
- Segmentation: Apply dynamic segmentation and VXLAN capabilities to bridge physical and virtual domains and reduce lateral movement.
- Secure SD-WAN: Consolidate WAN security and management with FortiOS for distributed sites and hybrid working models.
- Mobile Security for 4G, 5G, and IoT: Enable SPU-accelerated CGNAT and highly scalable IPsec aggregation for mobile and IoT connectivity.
- Firewall Throughput: IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 800 / 788 / 400 Gbps
- Security Performance: IPS 52 Gbps; NGFW 47 Gbps; Threat Protection 45 Gbps (Enterprise Traffic Mix, logging enabled)
- Interfaces: 8x 100 GE QSFP28 / 40 GE QSFP+ slots; 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots; 2x HA slots; 2x AUX slots; 2x GE RJ45 Mgmt; 1x USB; 1x Console
- VPN Capacity: IPsec VPN throughput 210 Gbps (512 byte); 40,000 gateway-to-gateway tunnels; 200,000 client-to-gateway tunnels

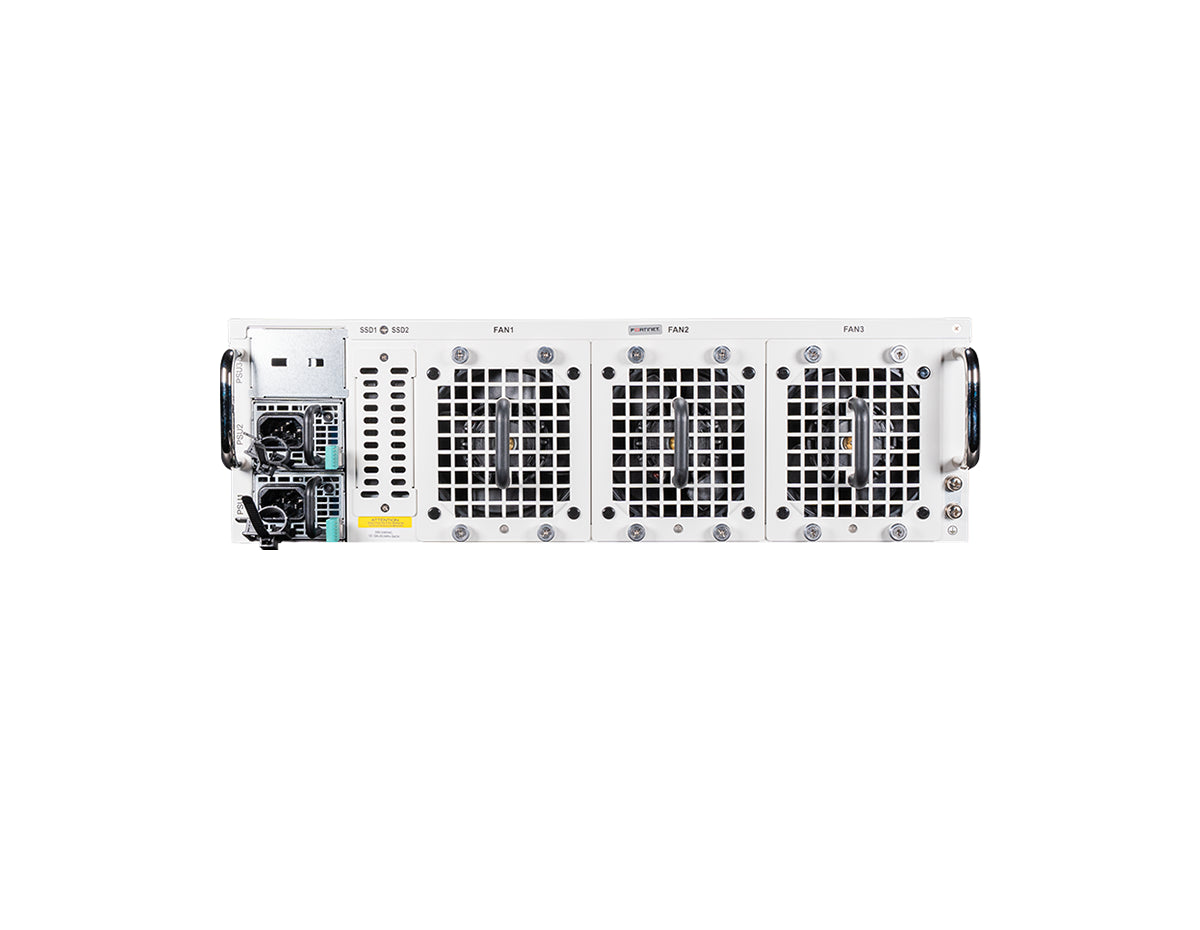

- Power & Cooling: -48V to -60V DC; 940 W average / 1306 W maximum; 4456 BTU/h; default 1+1 redundant, hot swappable
- Physical & Compliance: Rack Mount, 3 RU; Onboard Storage: 2x 1.92TB SSD; 5.22 x 17.20 x 26.17 in (132.5 x 437 x 664.8 mm); 61.07 lbs (27.7 kg); 32°F to 104°F (0°C to 40°C); FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Secure your DC-powered infrastructure with the high-performance, storage-enabled FortiGate 4201F-DC.
