The Fortinet FortiGate FG-400F-DC-BDL-950-12 bundle includes a FortiGate 400F-DC firewall appliance with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year. The FortiGate 400F series next-generation firewall combines AI-powered security and machine learning to deliver scalable threat protection with deep visibility into applications, users, and devices. Powered by Fortinet SPU acceleration (NP7 and CP9), the FortiGate 400F-DC delivers 10 Gbps of NGFW throughput and ultra-low latency performance for demanding deployments.
With integrated Secure SD-WAN and universal ZTNA capabilities, this appliance helps reduce complexity in hybrid IT networks while maintaining consistent policy enforcement and advanced protection. It includes 8x 10GE SFP+ slots (including 4 ultra-low latency slots), 8x GE SFP slots, and 18x GE RJ45 interfaces, and supports dual hot swappable DC power supplies for redundancy in DC-powered environments.
Technical Specifications Summary
- Security Performance (Enterprise Mix with Logging): 12 Gbps IPS throughput, 10 Gbps NGFW throughput, 9 Gbps threat protection throughput.
- Firewall Throughput & Packet Rate: 79.5 / 78.5 / 70 Gbps (IPv4/IPv6, 1518 / 512 / 64 byte UDP), 105 Mpps firewall throughput.
- Latency: 4.19 μs / 2.5 μs firewall latency (64 byte UDP), including Ultra Low Latency (ULL) ports.
- VPN Performance & Scale: 55 Gbps IPsec VPN throughput (512 byte), 2,000 gateway-to-gateway IPsec tunnels, 50,000 client-to-gateway IPsec tunnels.
- SSL & Remote Access: 3.6 Gbps SSL-VPN throughput, 5,000 concurrent SSL-VPN users (recommended maximum, tunnel mode).
- SSL Inspection & Application Control: 8 Gbps SSL inspection throughput (IPS, avg. HTTPS), 28 Gbps application control throughput (HTTP 64K), 65 Gbps CAPWAP throughput (HTTP 64K).
- Session Capacity: 7.8 million concurrent sessions (TCP), 500,000 new sessions/second (TCP).
- Policy & Virtualization: 10,000 firewall policies, 10 / 25 virtual domains (default / maximum).
- High Availability: Active-Active, Active-Passive, clustering configurations.
- Interfaces: 16 hardware accelerated GE RJ45, 2x GE RJ45 MGMT/HA, 8 hardware accelerated GE SFP, 4 hardware accelerated 10GE SFP+, 4 hardware accelerated 10GE SFP+ Ultra Low Latency slots.

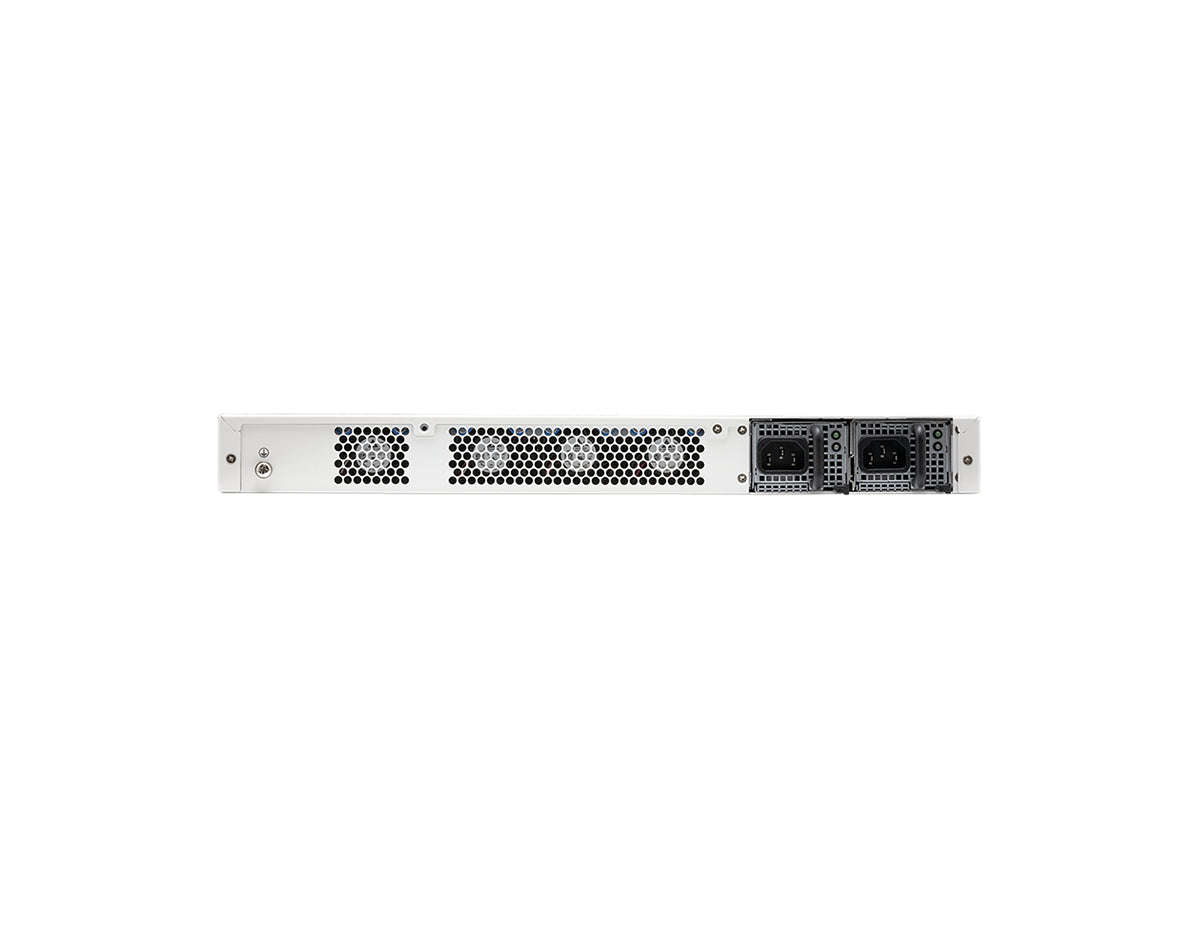

- Power & Thermal: Dual DC power supplies, 12A max DC current, 154.8 W average / 189.2 W maximum power consumption, 645.58 BTU/h heat dissipation.
- Physical & Compliance: 1RU rack mount, 1.75 x 17.0 x 15.0 in (44.45 x 432 x 380 mm), 14.11 lbs (6.4 kg), 32°F to 104°F (0°C to 40°C), FCC Part 15 Class A / RCM / VCCI / CE / UL/cUL / CB, USGv6/IPv6.
Upgrade Your Network Security
Deploy the FortiGate FG-400F-DC-BDL-950-12 for high-performance protection in your DC-powered environment.
