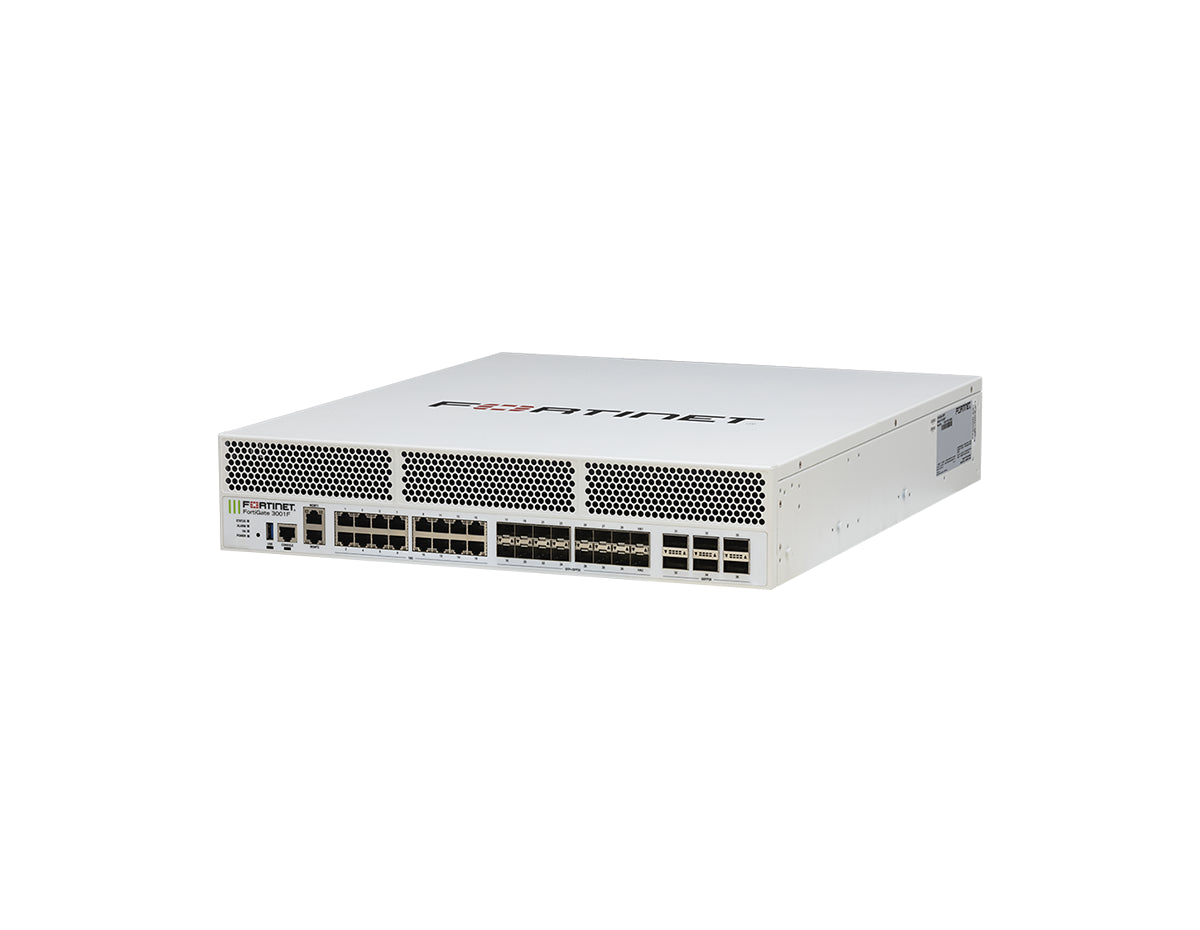

The FortiGate 3001F-DC is a high-performance Next-Generation Firewall (NGFW) engineered for data centers and service provider environments that rely on DC power infrastructure. It combines Fortinet's advanced security protections with hyperscale networking capabilities, delivering 34 Gbps of NGFW throughput and 33 Gbps of threat protection performance. Powered by custom SPU NP7 and CP9 processors, the FG-3001F-DC ensures ultra-low latency and efficient processing of massive traffic volumes, making it an ideal foundation for a Hybrid Mesh Firewall architecture.
This model is equipped with dual 960GB SSDs, providing significant onboard storage for local logging, reporting, and forensic analysis. It supports a wide range of high-speed connectivity options, including 6x 100 GE QSFP28 / 40 GE QSFP+ slots and 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, to eliminate performance bottlenecks in core networks. With integrated Zero Trust Network Access (ZTNA) enforcement and comprehensive SSL inspection capabilities, the FortiGate 3001F-DC secures the network edge while maintaining seamless user experiences and operational efficiency.
Hyperscale Security with Dedicated DC Power and Onboard Storage

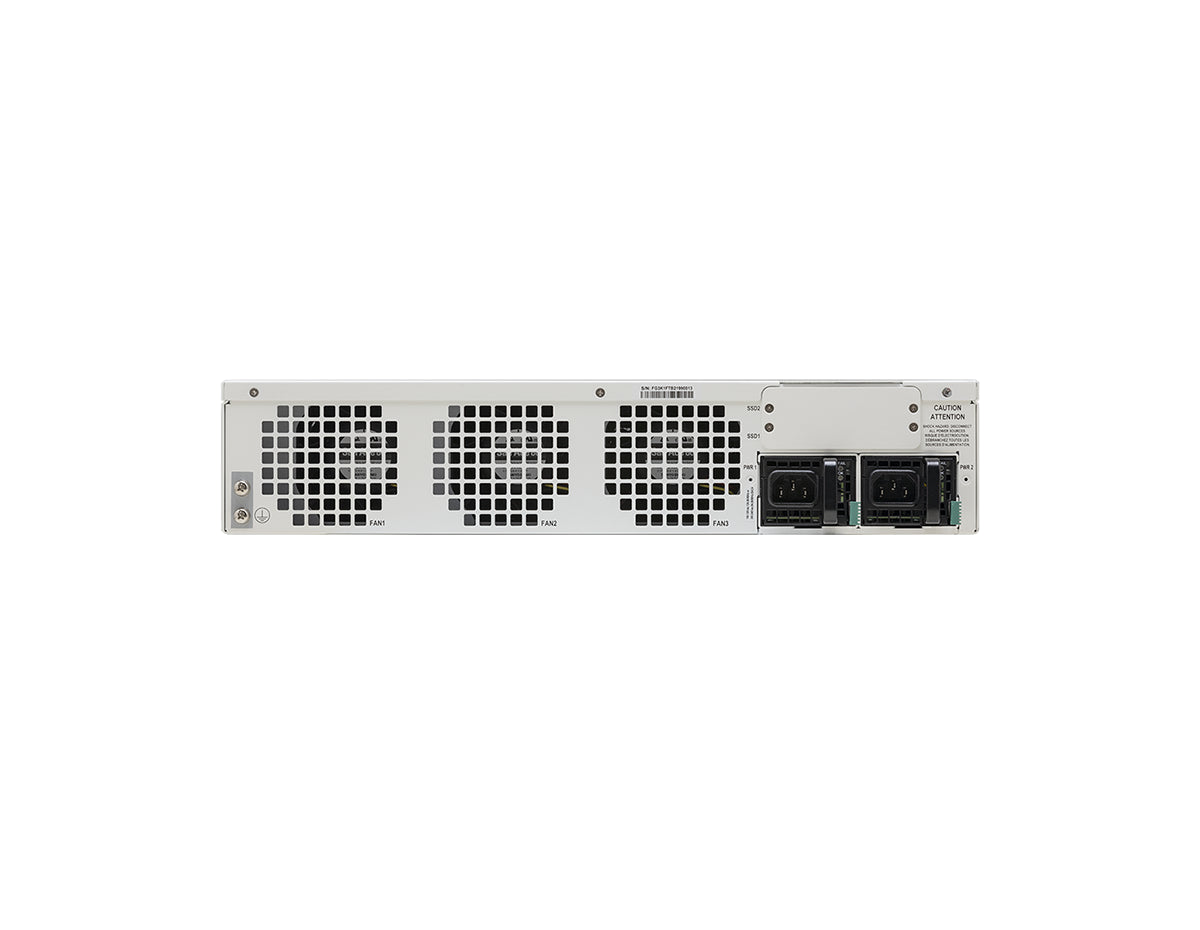

- DC Power Ready: Built with dual DC power supplies (48-60VDC) to integrate seamlessly into telecom and data center power grids.
- Onboard Storage: Includes 2x 960GB SSDs for efficient local data storage, facilitating enhanced logging and reporting capabilities.
- Extreme Performance: IPv4 firewall throughput up to 397 / 389 / 221 Gbps (1518/512/64 byte, UDP) and up to 70 million concurrent sessions (230 million requires Hyperscale Firewall License).
- Advanced Threat Protection: Provides 33 Gbps of threat protection throughput to defend against malware, ransomware, and zero-day threats.

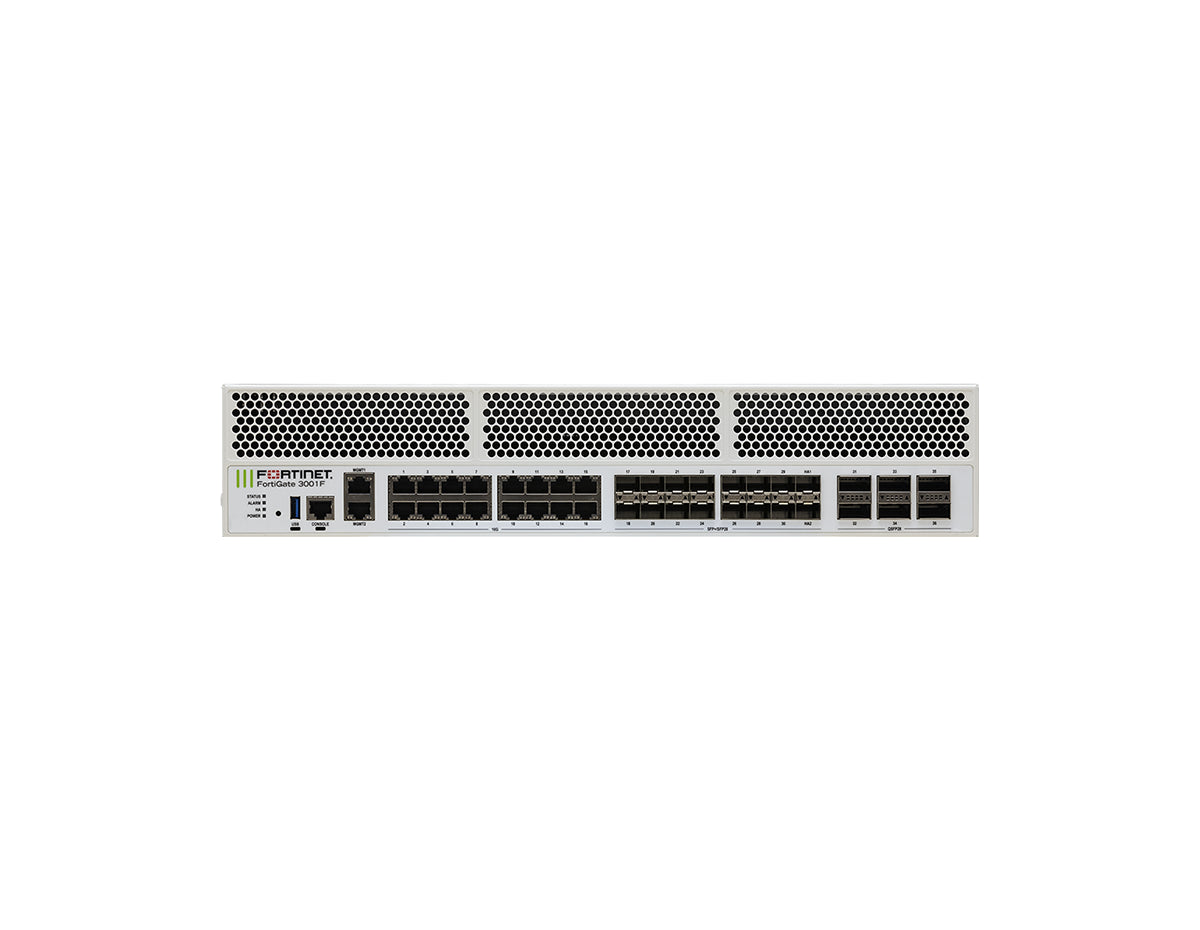

- High-Speed Connectivity: Features 6x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots (includes 2x HA Slots), and 16x 10 GE / 5 GE / 2.5 GE / GE RJ45 ports for high-bandwidth segmentation.
- SPU Acceleration: Utilizes NP7 and CP9 security processing units to offload resource-intensive tasks like SSL inspection and IPsec VPN.
- Integrated ZTNA: Enforces Zero Trust policies natively within the firewall to control and verify user access to applications.
- Telecom & Service Providers: Ideal for environments requiring 48–60 VDC power infrastructure and carrier-grade reliability.
- Hyperscale Data Centers: Supports massive connection rates and elephant flows with hardware-accelerated performance.
- Secure Network Segmentation: Uses VXLAN and high-speed interfaces to segment physical and virtual domains effectively.
- Mobile Security Core: Capable of CGNAT and IPv6 migration options, including NAT44, NAT444, NAT64/DNS64, NAT46 for 4G and 5G connectivity and security.
- IPS Throughput: 36 Gbps
- NGFW Throughput: 34 Gbps
- Threat Protection Throughput: 33 Gbps
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 397 / 389 / 221 Gbps
- Firewall Latency (64 byte, UDP): 3.92 μs
- Firewall Throughput (Packet per Second): 331.5 Mpps
- Concurrent Sessions (TCP): 70 Million / 230 Million* (230 Million requires Hyperscale Firewall License)
- New Sessions/Second (TCP): 870,000 / 3 Million* (3 Million requires Hyperscale Firewall License)
- IPsec VPN Throughput (512 byte): 105 Gbps
- SSL Inspection Throughput: 29 Gbps
- Power Consumption (Average / Maximum): 420 W / 690 W
Upgrade Your Network Security
Deploy the FortiGate 3001F-DC for robust, DC-powered security at the core of your network.
