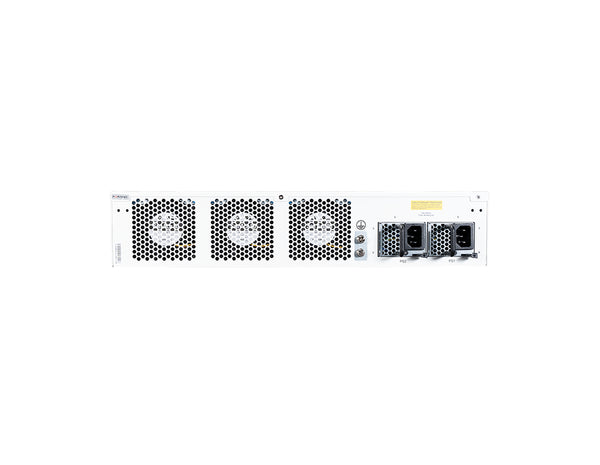

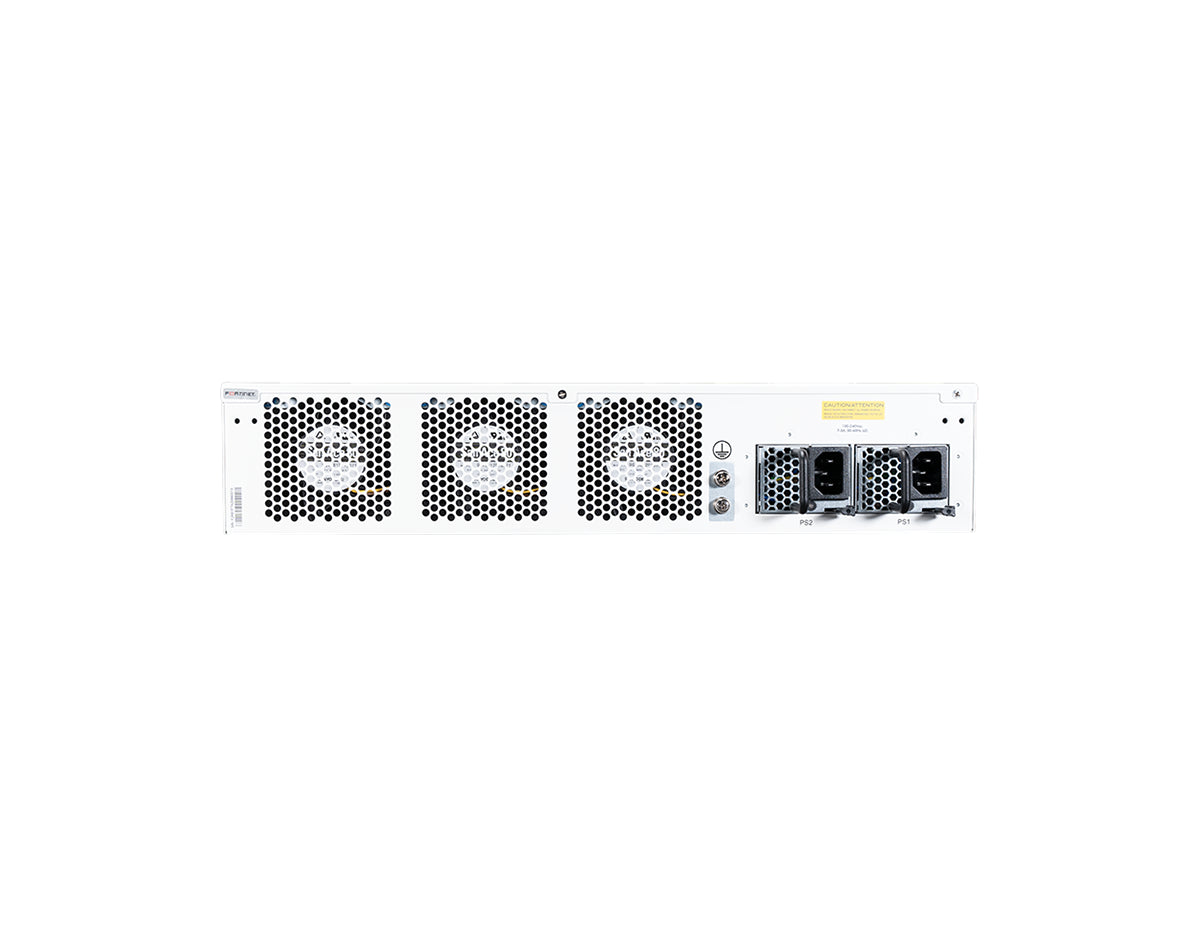

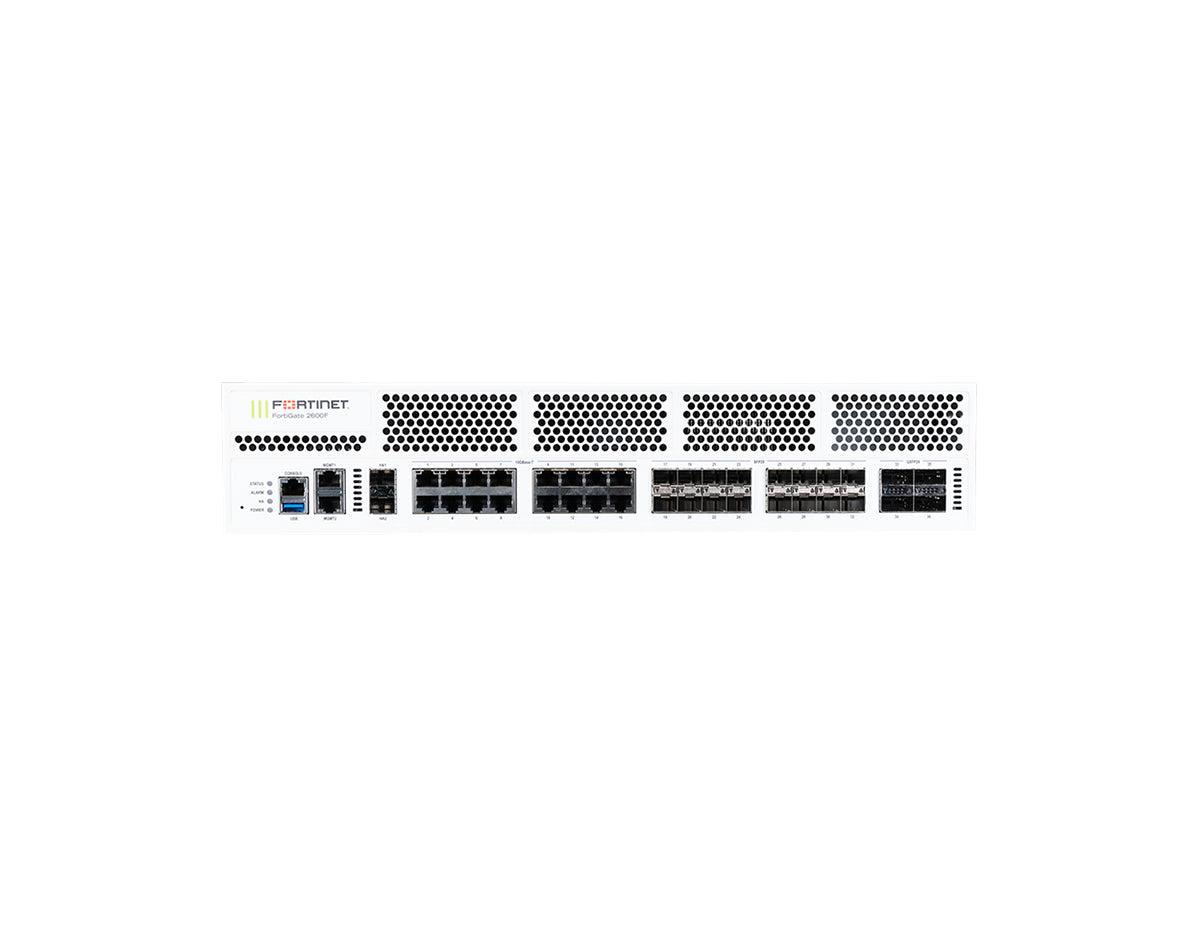

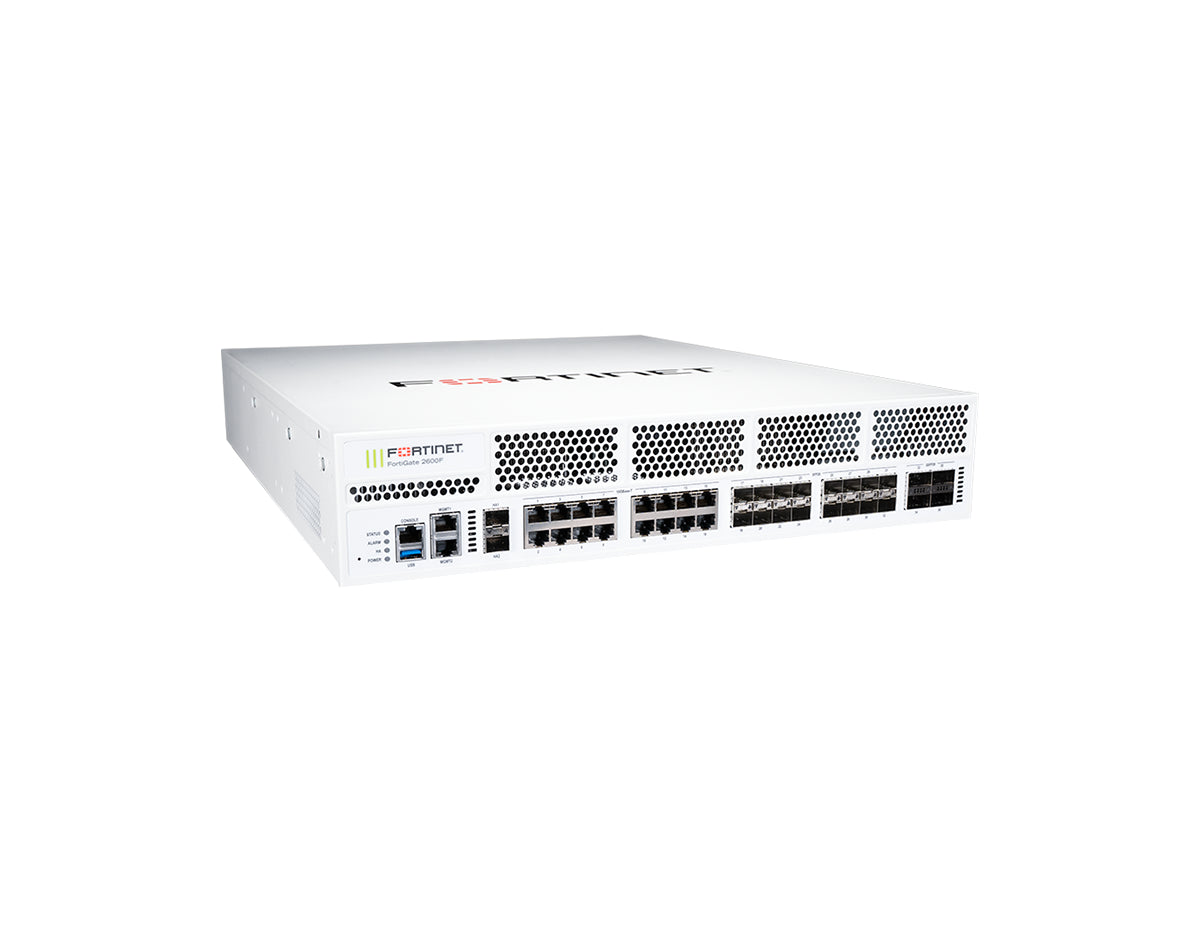

The FortiGate 2600F Series empowers organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. By weaving security deep into the data center and across hybrid IT environments, it protects any edge at any scale. This FG-2601F-BDL-809-36 bundle includes the FortiGate 2601F firewall with FortiCare Premium and FortiGuard Enterprise Protection for a 3 Year term.
With integrated 2x 960GB NVMe SSD storage, the FG-2601F allows for local logging and reporting without relying solely on external devices. It supports industry-first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, automatically controlling and verifying user access to applications. The comprehensive interface options, including high-speed 100 GE and 25 GE slots, ensure that security never becomes a performance bottleneck in high-bandwidth environments.
Hyperscale Security and Performance for the Enterprise Edge
- Unparalleled Performance: Patented SPU NP7 and CP9 processors deliver up to 198 Gbps firewall throughput and 25 Gbps threat protection throughput to handle massive traffic volumes.
- Local Storage Included: Equipped with 2x 960GB NVMe SSDs to support extensive on-device logging, reporting, and quarantine capabilities.
- High-Speed Connectivity: Features multiple 100 GE QSFP28 and 25 GE SFP28 slots to simplify network design and eliminate the need for additional bridging devices.
- Integrated ZTNA: Delivers the industry's first integrated Zero Trust Network Access enforcement, providing consistent convergence and seamless user experience.
- Operational Efficiency: Consolidates networking and security into a single platform powered by FortiOS, reducing complexity and lowering Total Cost of Ownership (TCO).
- Hardware-Assisted Security: Includes a Trusted Platform Module (TPM) to harden physical networking appliances and integrated hardware acceleration for VXLAN and IPsec.
- Enterprise Data Centers: Ideal for securing high-speed core networks with 100 GE connectivity and hyperscale inspection capabilities.
- Hybrid Cloud Environments: Provides dynamic segmentation and secure connectivity across on-premise and multi-cloud architectures.
- Internal Segmentation: Adapts to network topology to deliver end-to-end security and prevent lateral movement of threats using advanced VXLAN segmentation.
- Remote Workforce Security: Facilitates secure user access to applications through integrated ZTNA and high-performance IPsec VPN capabilities.
- Technical Specifications Summary: IPS throughput 31 Gbps, NGFW throughput 27 Gbps, Threat Protection throughput 25 Gbps
- Firewall Throughput: 198 / 196 / 140 Gbps (IPv4/IPv6, 1518/512/64–86 byte UDP)
- Firewall Performance: 210 Mpps throughput, 3.41 μs latency (64 byte UDP)
- VPN Capacity: IPsec VPN throughput 55 Gbps, 20,000 gateway-to-gateway tunnels, 100,000 client-to-gateway tunnels
- SSL & Inspection: SSL-VPN 16 Gbps, SSL inspection 20 Gbps, 16,000 CPS, 2.7 Million concurrent sessions
- Sessions & Scale: 24 Million concurrent sessions, 1 Million new sessions/second, 100,000 firewall policies
- Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE RJ45, 2x 10 GE SFP+ HA, 2x GE RJ45 MGMT
- Storage: 2x 960GB NVMe SSD onboard
- Power: 100–240VAC, 47/63 Hz, 420.3 W average / 513.7 W maximum, 1754 BTU/h heat dissipation
- Physical & Environment: 2RU rack mount, 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm), 30.9 lbs (14.0 kg), 32°F to 104°F (0°C to 40°C)
Upgrade Your Network Security
Deploy the FortiGate 2601F-BDL-809-36 today for uncompromising performance, integrated storage, and Enterprise Protection backed by FortiCare Premium for a 3 Year term.
