The Fortinet FortiGate 200G Series next-generation firewall (NGFW) combines AI-powered security and machine learning to deliver scalable threat protection for modern enterprises. By consolidating security functions into a single platform powered by FortiOS, the FortiGate 200G simplifies management while providing deep visibility into applications, users, and devices. This solution integrates seamlessly with the Fortinet Security Fabric, ensuring consistent policy enforcement across hybrid environments, from the campus edge to the data center. The FG-200G-BDL-950-60 bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 5 years.
At the core of the FortiGate 200G are Fortinet’s patented SPU processors, including the NP7Lite network processor and CP10 content processor. These dedicated ASICs offload resource-intensive tasks to deliver industry-leading performance, including 9 Gbps of IPS throughput and 6 Gbps of Threat Protection throughput. With integrated capabilities for Universal ZTNA and Secure SD-WAN, the FortiGate 200G reduces complexity and risk in hybrid IT networks while maintaining ultra-low latency for critical applications.
Secure Networking with AI-Powered Threat Protection
- High-Performance Security: Delivers up to 39 Gbps firewall throughput with ultra-low latency (4.36 μs) powered by NP7Lite and CP10 acceleration.
- AI-Powered Protection: Protects against known, unknown, zero-day, and sophisticated AI-powered attacks with FortiGuard AI-powered security services.
- Deep Visibility: Provides granular insight into users, devices, and applications, including real-time SSL inspection (TLS 1.3) without impacting performance.
- Integrated SD-WAN: Unifies security and networking to transform WAN edges, supporting hybrid working models and cloud-first WAN use cases.
- Scalable Segmentation: Supports dynamic segmentation and VXLAN segmentation to bridge physical and virtual domains and prevent lateral movement.
- Universal ZTNA: Automatically controls, verifies, and facilitates user access to applications, reducing lateral threats by providing access only to validated users.
- Hardware-Backed Security: Includes a Trusted Platform Module (TPM) designed to harden the appliance by generating, storing, and authenticating cryptographic keys.
- Mid-Sized to Large Enterprises: Ideal for organizations requiring high-speed threat protection and consolidated security at the edge.
- Hybrid Mesh Firewalls: Deploy consistent security across distributed networks, ensuring seamless policy enforcement.
- Secure SD-WAN: Perfect for connecting branch offices and remote locations with secure, high-performance wide area networking.
- Campus Edge Protection: Secures user access and IoT devices with deep visibility and automated control.
- Encrypted Traffic Inspection: Suitable for environments requiring real-time SSL inspection without performance degradation.
- Firewall Performance: IPv4/IPv6 throughput (1518/512/64 byte UDP) 39 / 39 / 26.5 Gbps; latency (64 byte UDP) 4.36 μs; 39.75 Mpps.
- Security Throughput: IPS (Enterprise Mix) 9 Gbps; NGFW 7 Gbps; Threat Protection 6 Gbps.
- VPN & SSL: IPsec VPN (512 byte) 36 Gbps with 2,000 site-to-site and 16,000 client tunnels; SSL-VPN 3 Gbps with 500 recommended concurrent users; SSL inspection (IPS, avg. HTTPS) 7 Gbps; SSL inspection CPS (IPS, avg. HTTPS) 7,100.

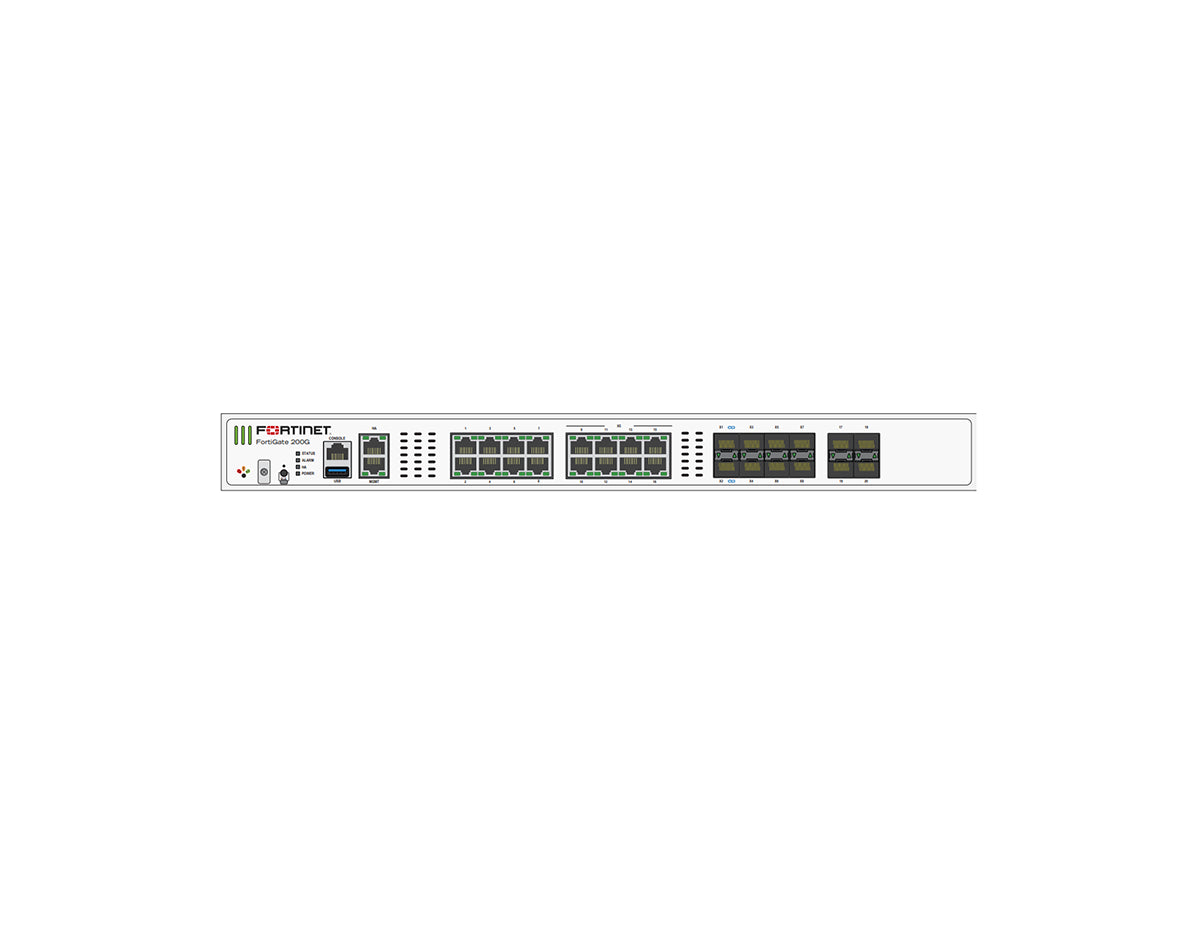

- Interfaces: 10x GE RJ45 (including 1x MGMT port, 1x HA port, 8x switch ports), 8x 5/2.5/GE RJ45, 8x 10GE SFP+/SFP FortiLink (default), 4x GE SFP, plus USB and console.
- Capacity: 11 million concurrent sessions; 400,000 new sessions/second; 10,000 firewall policies; VDOMs 10 (default) / 25 (max).

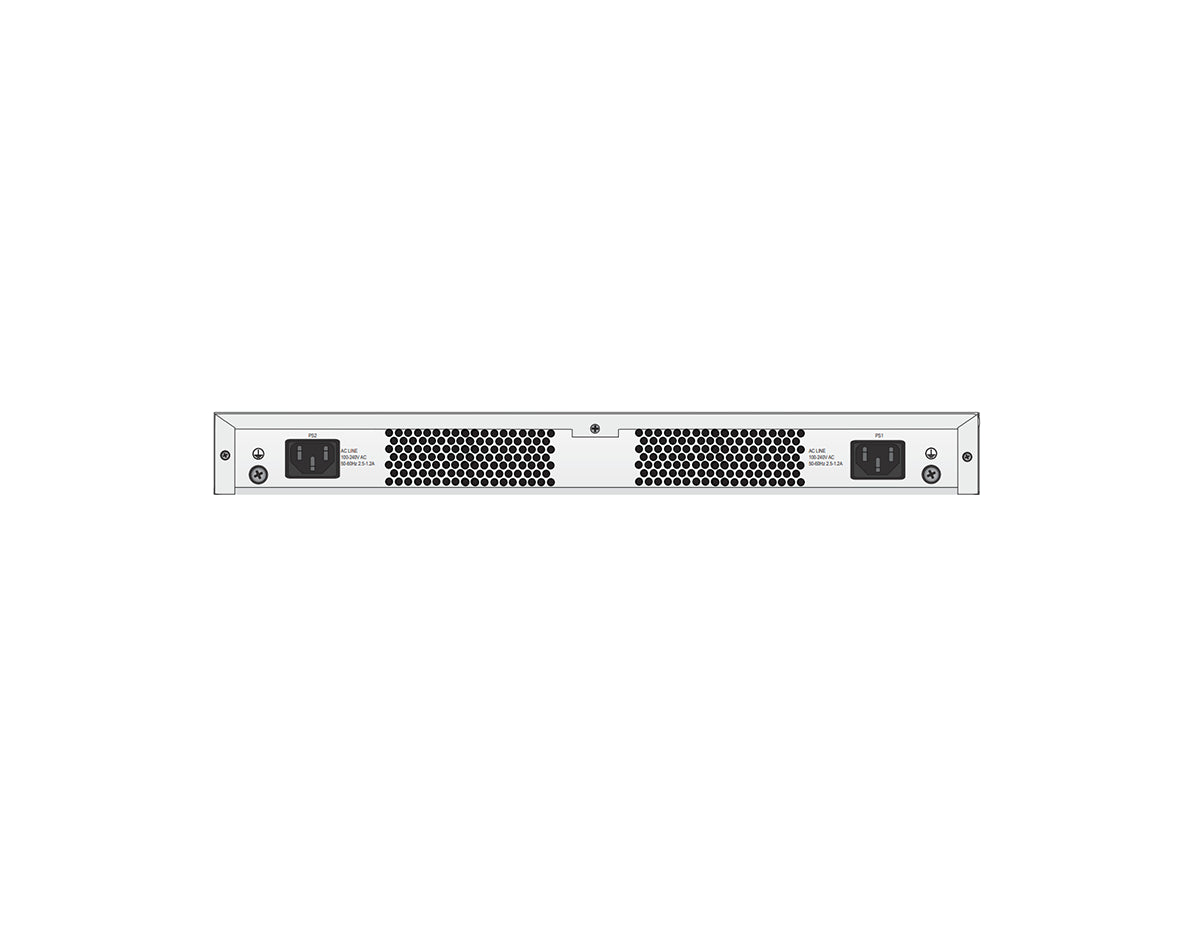

- Power & Thermal: 100–240V AC input; 145 W average / 175 W max; heat dissipation 597.12 BTU/h; power supply efficiency rating 80Plus Compliant; dual built-in non-hot swappable AC PSU (1+1 redundancy).
- Physical/Environment/Certs: 1 RU (1.75 x 17.0 x 15.0 in / 44.45 x 432 x 380 mm), 14.11 lbs (6.4 kg); operating 0°C to 40°C; storage -35°C to 70°C; humidity 5%–90% non-condensing; noise LPA 48 dBA / LWA 55 dBA; operating altitude up to 10,000 ft (3048 m); compliance includes FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; certification USGv6/IPv6.
