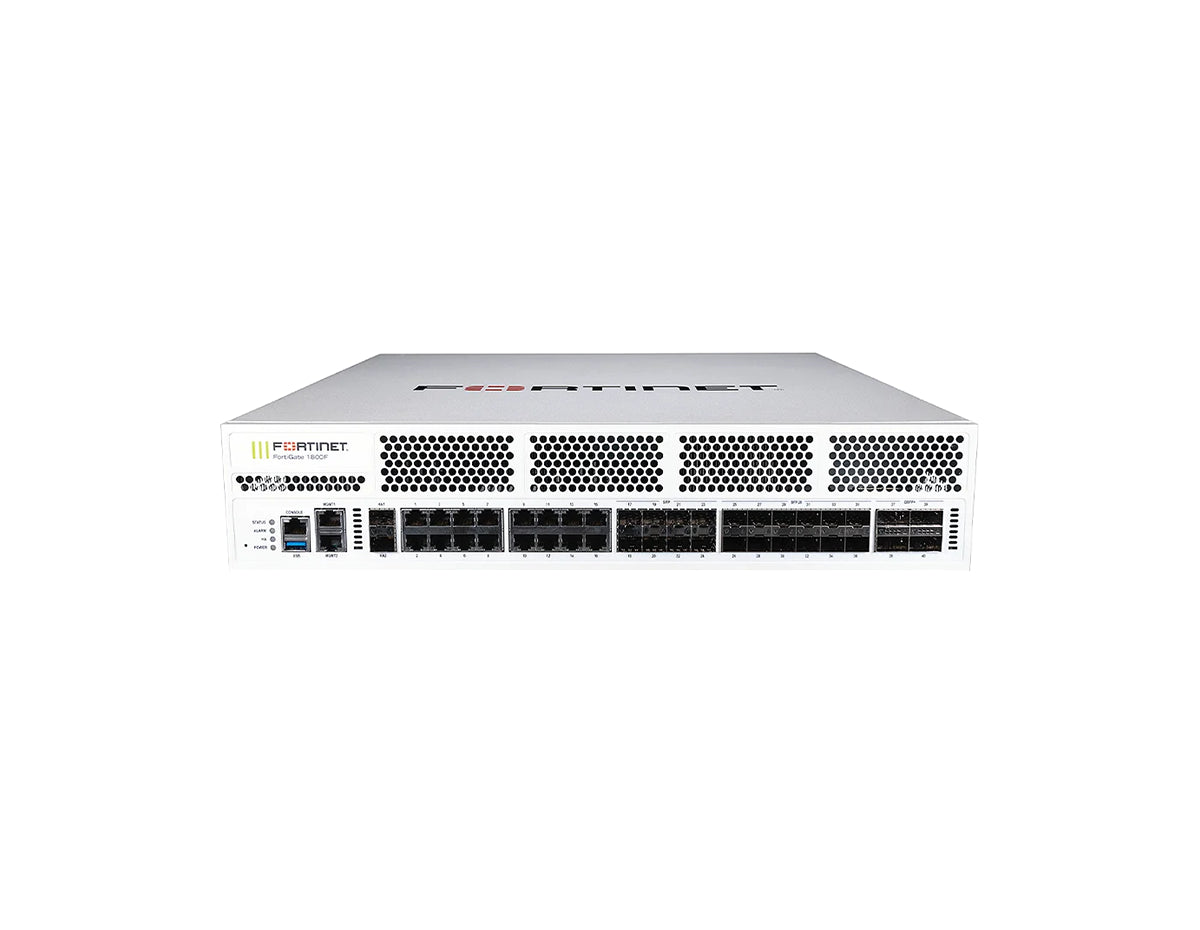

The Fortinet FortiGate 1801F-DC delivers hyperscale security performance and secure networking with FortiOS for converged networking and security across distributed environments. Built on Fortinet’s purpose-built NP7 and CP9 security processing units, it provides up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 22 Gbps IPS throughput to help keep security from becoming a bottleneck in high-speed networks.
This bundle (FG-1801F-DC-BDL-809-60) includes Appliance + FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC offers onboard storage for local logging and operational visibility. The appliance provides flexible high-speed connectivity, including four 100GE QSFP28 slots and twelve 25GE SFP28 slots, and integrates Zero Trust Network Access (ZTNA) enforcement with secure SD-WAN capabilities through the FortiOS unified platform.
Hyperscale Security with DC Power Reliability
- DC Power Ready: Designed with dual -48V to -60V DC power supplies to integrate into DC power environments.
- Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
- High-Performance Acceleration: Powered by NP7 and CP9 processors to deliver ultra-low latency and up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP).
- 100GE Connectivity: Features 4x 100 GE QSFP28 / 40 GE QSFP+ slots for high-capacity uplinks.
- Dynamic Segmentation: Supports ultra-scalable, low latency VXLAN segmentation to bridge physical and virtual domains.
- Integrated ZTNA: Automatically controls, verifies, and facilitates user access to applications for consistent user experience across distributed networks.
- AI/ML-Powered Defense: Powered by AI/ML-based FortiGuard Services to deliver coordinated threat protection across use cases.
Ideal Use Cases
- Next Generation Firewall (NGFW): Protect web, content, devices, and users with integrated security services and real-time SSL inspection (including TLS 1.3).
- Secure SD-WAN: FortiGate WAN Edge powered by one OS and unified security and management framework.
- Segmentation: Dynamic segmentation and VXLAN support to help prevent lateral movement across the network.
- Hyperscale and Mobile Security: Ultra-scalable secure networking for high connection and connections-per-second demands, including 4G/5G and IoT connectivity and security use cases.
Technical Specifications Summary
- Firewall Throughput (IPv4/IPv6): 198 / 197 / 140 Gbps (IPv4 1518 / 512 / 64 byte UDP; IPv6 1518 / 512 / 86 byte UDP)
- Firewall Latency (64 byte, UDP): 3.22 μs
- IPS / NGFW / Threat Protection Throughput: 22 Gbps / 17 Gbps / 15 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput / Recommended Max Users (Tunnel Mode): 11 Gbps / 10,000
- SSL Inspection (IPS, avg. HTTPS): 12 Gbps throughput, 9,500 CPS, 1.3 Million concurrent sessions
- Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
- Included Transceivers: 2x SFP+ (SR 10 GE)
- Onboard Storage: 2x 960GB NVMe SSD
- Power (DC model): -48V to -60V DC, 20A max; 414.9 W (Avg) / 463.1 W (Max), 1579.2 BTU/h
- Physical: Rack Mount, 2RU; 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm), 30.4 lbs (13.8 kg)
- Environment / Compliance: 32°F to 104°F (0°C to 40°C), FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Implement the FG-1801F-DC-BDL-809-60 for robust, DC-powered security and hyperscale performance across distributed network environments.
