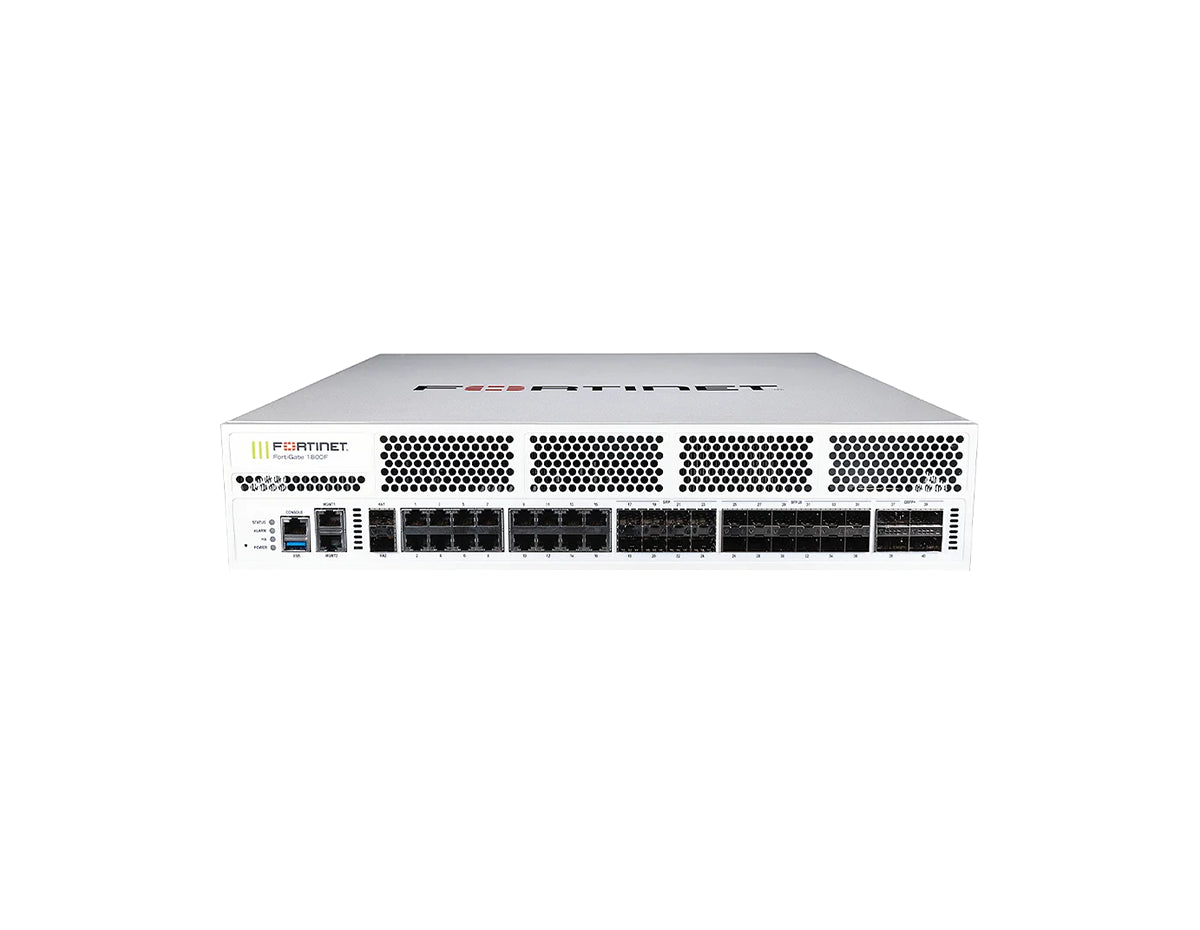

The Fortinet FortiGate 1801F-DC delivers high-performance firewall capabilities and secure networking with FortiOS, helping organizations build security-driven networks across data center and hybrid IT environments. Powered by Fortinet SPUs and integrated AI/ML-based FortiGuard Services, it supports coordinated threat protection and integrated Zero Trust Network Access (ZTNA) enforcement while maintaining strong performance.
This bundle (FG-1801F-DC-BDL-809-36) includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection.
Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC provides onboard storage for local use cases. It offers a versatile set of high-speed interfaces including four 100 GE QSFP28 / 40 GE QSFP+ slots and twelve 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, along with dedicated management and HA connectivity for deployment flexibility. Built on FortiOS, it converges networking and security to support use cases such as next-generation firewalling, segmentation, and secure SD-WAN.
Hyperscale Security with DC Power Reliability
- DC Power Ready: Dual -48V to -60V DC power supplies for environments requiring DC input.
- Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
- High-Performance Acceleration: Delivers up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518 / 512 / 64 byte, UDP) with 3.22 μs firewall latency (64 byte, UDP).
- 100GE Connectivity: 4x 100 GE QSFP28 / 40 GE QSFP+ slots for high-capacity uplinks.
- Dynamic Segmentation: Supports ultra-scalable, low latency VXLAN segmentation across physical and virtual domains.
- Integrated ZTNA: Integrated ZTNA enforcement to control, verify, and facilitate user access to applications.
- AI/ML-Powered Defense: AI/ML-based FortiGuard Services help protect against modern threats including zero-day and AI-powered attacks.
Ideal Use Cases
- Next Generation Firewall (NGFW): Consolidated security with integrated FortiGuard Services and real-time SSL inspection.
- Segmentation: Security-driven segmentation from branch to data center and across multi-cloud environments.
- Secure SD-WAN: WAN edge convergence powered by one OS and a unified security and management framework.
- Hyperscale Networks: Ultra-scalable secure networking with high connections and connections-per-second capacity.
Technical Specifications Summary
- IPS / NGFW Throughput (Enterprise Traffic Mix): 22 Gbps / 17 Gbps
- Threat Protection Throughput: 15 Gbps
- IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 198 / 197 / 140 Gbps
- IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 198 / 197 / 140 Gbps
- Firewall Performance: 210 Mpps, 3.22 μs latency (64 byte, UDP)
- VPN Capacity: IPsec VPN 55 Gbps (512 byte), 20,000 gateway-to-gateway tunnels, 100,000 client-to-gateway tunnels
- SSL-VPN: 11 Gbps throughput, 10,000 recommended concurrent users (tunnel mode)
- SSL Inspection (IPS, avg. HTTPS): 12 Gbps, 9,500 CPS, 1.3 Million concurrent sessions
- Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
- Power and Thermal: -48V to -60V DC, 20A max; 414.9 W (avg) / 463.1 W (max); 1579.2 BTU/h
- Environment and Compliance: 0°C to 40°C operating, 62.74 dBA noise, FCC Part 15 Class A, CE, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Implement the FG-1801F-DC-BDL-809-36 for high-performance, DC-powered firewall capabilities with integrated FortiOS networking and security.
