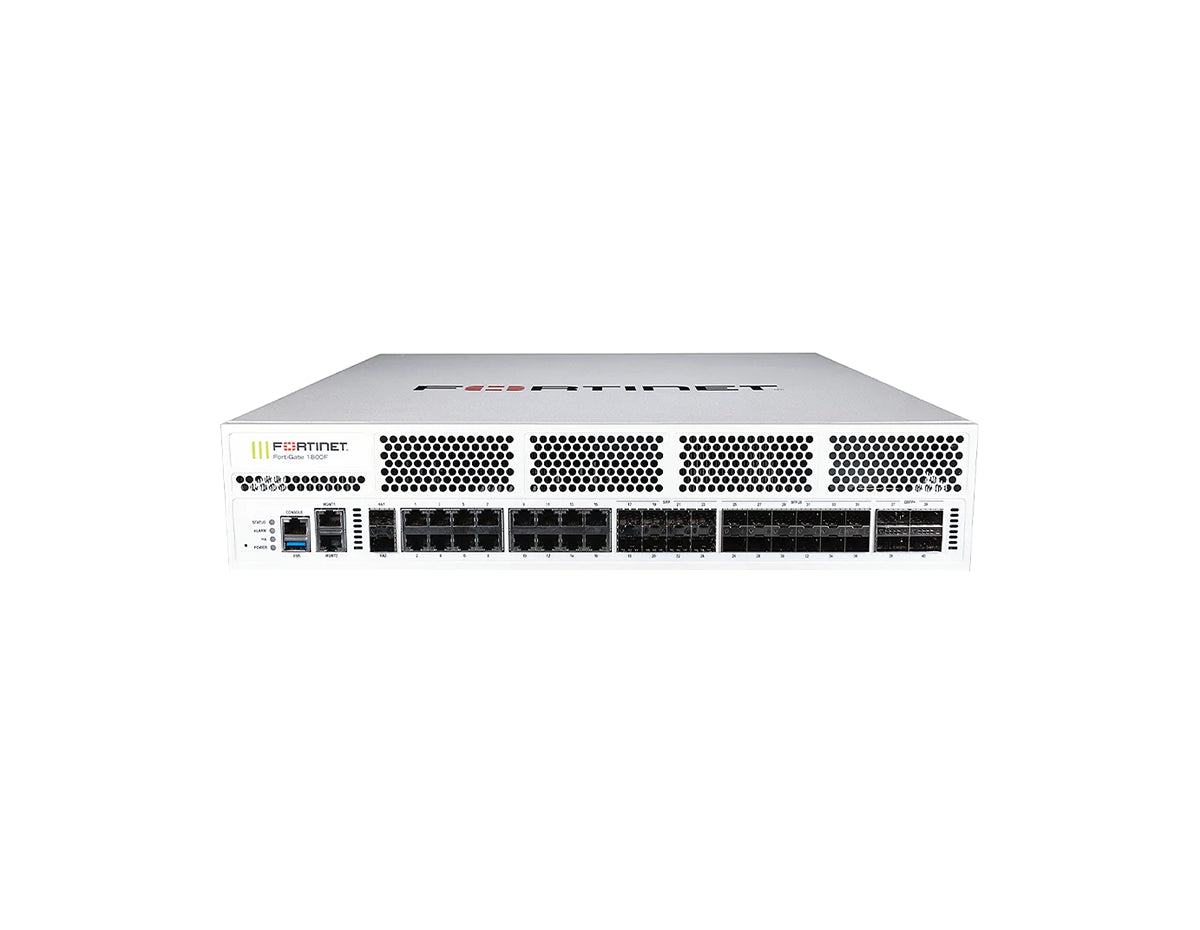

The Fortinet FortiGate 1801F-DC combines hyperscale security performance with the reliability of DC power, making it the ideal choice for service providers, telecommunications hubs, and data centers with DC power infrastructure. This high-end Next-Generation Firewall is built on Fortinet’s purpose-built NP7 and CP9 security processing units, delivering up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 22 Gbps IPS throughput. It ensures that security never becomes a bottleneck in high-speed networks, providing advanced threat protection without compromising performance.
This bundle (FG-1801F-DC-BDL-809-12) includes FortiGate appliance + FortiCare Premium + FortiGuard Enterprise Protection (1 Year).
Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC offers significant onboard storage for local logging and operational visibility. The appliance features a versatile range of high-speed interfaces, including four 100GE QSFP28 slots and twelve 25GE SFP28 slots, allowing for flexible connectivity and segmentation. With its integrated Zero Trust Network Access (ZTNA) enforcement and robust SD-WAN capabilities, the FortiGate 1801F-DC secures the network edge at scale while simplifying management through the FortiOS unified platform.
Hyperscale Security with DC Power Reliability
- DC Power Ready: Specifically designed with dual -48V to -60V DC power supplies to integrate seamlessly into telecom and industrial data center power grids.
- Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
- High-Performance Acceleration: Powered by NP7 Network Processors and CP9 Content Processors to deliver ultra-low latency and up to 198 Gbps IPv4 firewall throughput (1518-byte UDP).
- 100GE Connectivity: Features 4x 100GE QSFP28 / 40GE QSFP+ slots for high-capacity uplinks.
- Dynamic Segmentation: Supports VXLAN segmentation to bridge physical and virtual domains, helping prevent lateral movement of threats.
- Integrated ZTNA: Automatically controls, verifies, and facilitates user access to applications, reducing the attack surface with built-in access control.
- AI/ML-Powered Defense: Natively integrates with FortiGuard Services to help block unknown and zero-day threats in real time.
Ideal Use Cases
- Telecom & Service Providers: Core security infrastructure requiring native DC power input and high availability.
- Enterprise Data Centers: High-speed segmentation and threat protection for critical assets with local logging requirements.
- High-Speed WAN Edge: Secure connectivity for distributed enterprises needing robust SD-WAN and encrypted traffic inspection.
- Internal Segmentation Firewall (ISFW): Isolating network segments to contain threats within physical and virtual environments.
Technical Specifications Summary
- IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 198 / 197 / 140 Gbps
- IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 198 / 197 / 140 Gbps
- Firewall Latency (64 byte, UDP): 3.22 μs
- IPS / NGFW / Threat Protection Throughput: 22 Gbps / 17 Gbps / 15 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput / Recommended Max Users (Tunnel Mode): 11 Gbps / 10,000
- SSL Inspection (IPS, avg. HTTPS): 12 Gbps throughput, 9,500 CPS, 1.3 Million concurrent sessions
- Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
- Onboard Storage: 2x 960GB NVMe SSD
- Power (DC model): -48V to -60V DC, 20A max; 414.9 W (Avg) / 463.1 W (Max)
- Dimensions / Weight: 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm) / 30.4 lbs (13.8 kg)
- Operating Environment / Compliance: 32°F to 104°F (0°C to 40°C), 10% to 90% non-condensing, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6/IPv6
Upgrade Your Network Security
Implement the FG-1801F-DC-BDL-809-12 for robust, DC-powered security and hyperscale performance in your critical infrastructure.
