Engineered for Ultra-High-Density Outdoor Wi-Fi

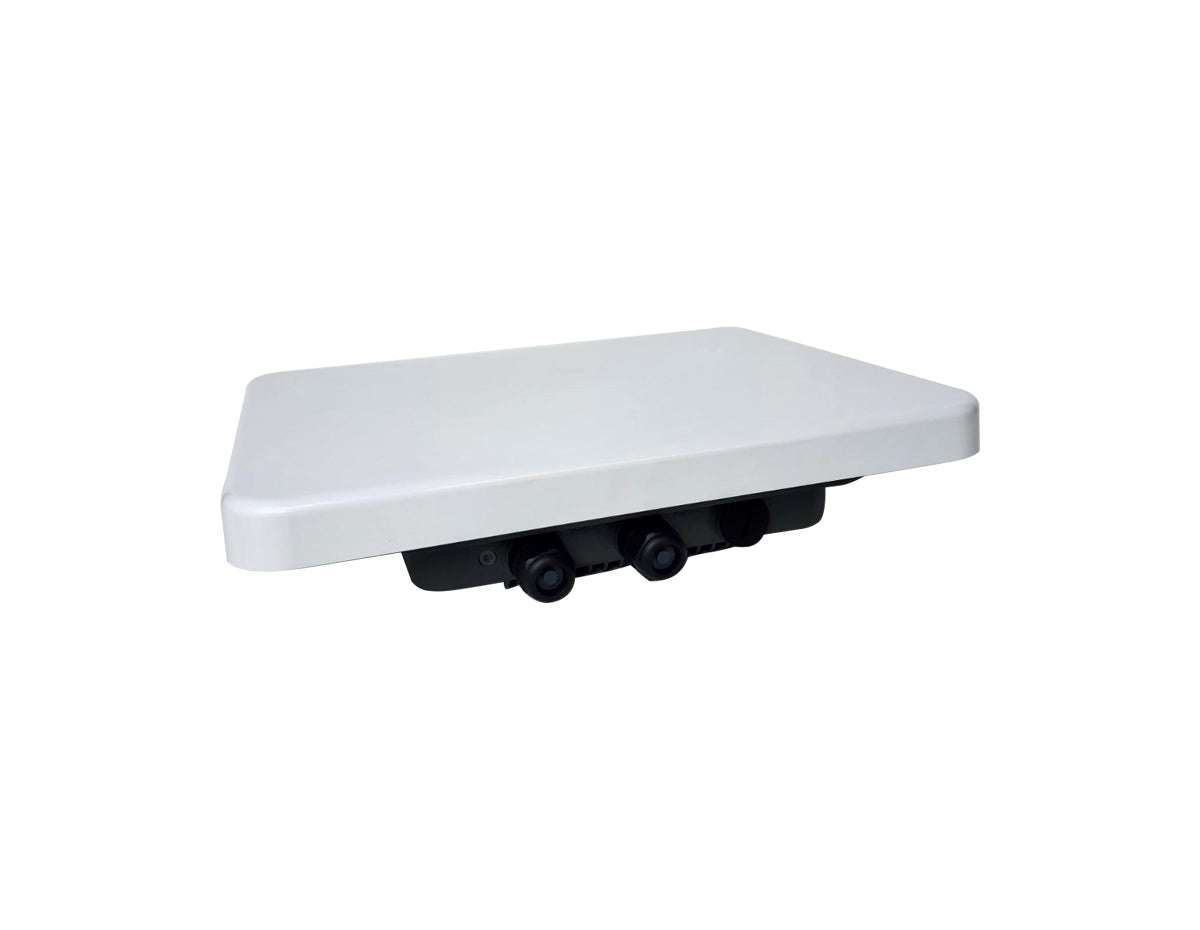

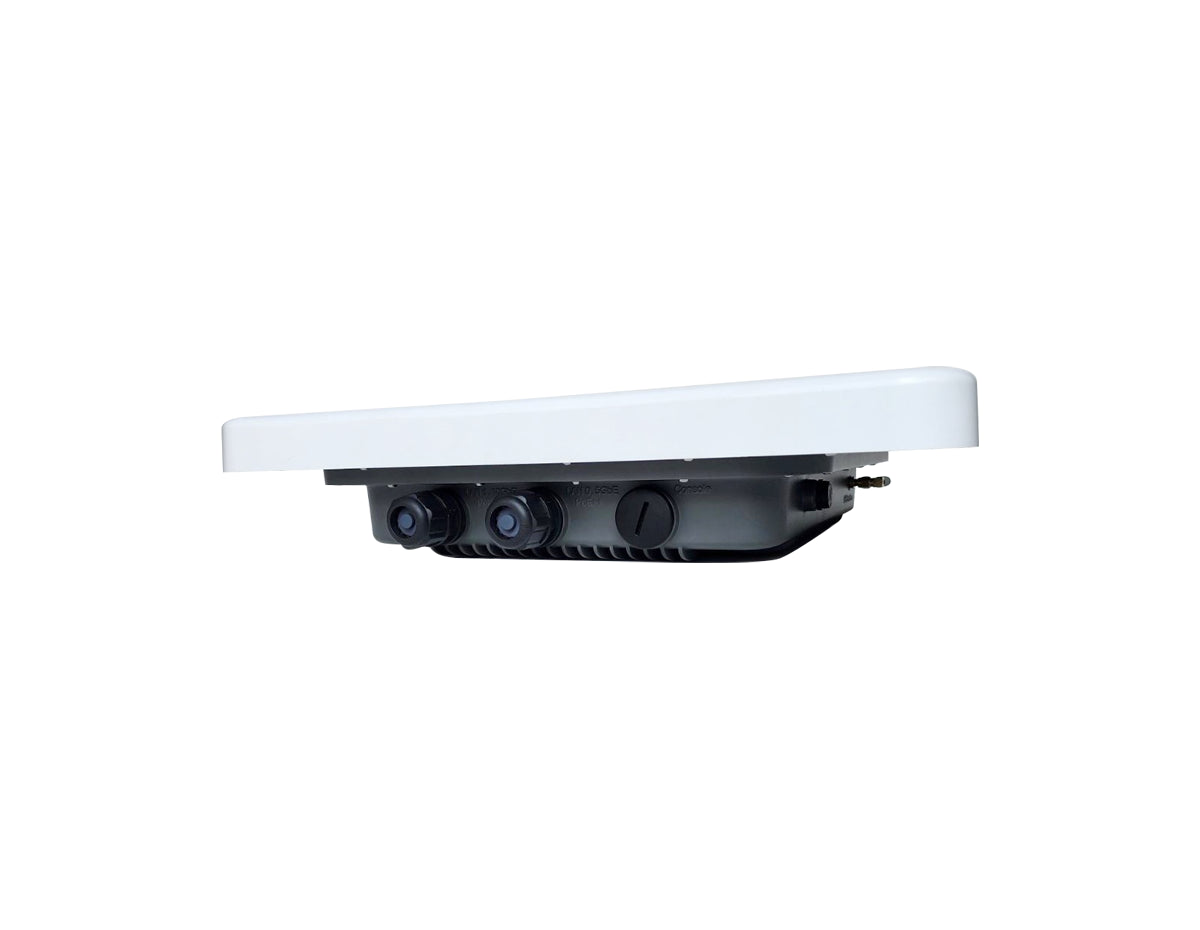

The Fortinet FortiAP-HD-444KW is a next-generation outdoor access point purpose-built for environments where extreme client density and consistent performance are non-negotiable. Leveraging Wi-Fi 7 (IEEE 802.11be) technology with four independent 4x4 radios, it delivers exceptional capacity, low latency, and precise RF control for large venues.
Designed for overhead and wide-area coverage, the FortiAP-HD-444KW uses software-defined, reconfigurable antenna patterns to optimize signal delivery while minimizing interference. With multi-gigabit backhaul and PoE++ support, it simplifies deployment while meeting the throughput demands of modern high-traffic networks.
Key Benefits & Features
- Quad-Radio Wi-Fi 7 Architecture: Four 4x4 radios deliver up to 16 concurrent spatial streams for extreme user density and higher aggregate throughput.
- Flexible 5 GHz and 6 GHz Operation: Configurable radio modes allow optimized spectrum usage, including dual 6 GHz operation where permitted by regional regulations.
- High-Capacity Multi-Gigabit Backhaul: Integrated 10 Gbps and 5 Gbps Ethernet ports eliminate wired bottlenecks in demanding deployments.
- Reconfigurable Directional Antennas: Software-defined beam shaping improves coverage precision and reduces co-channel interference in crowded RF environments.
- Rugged Outdoor Design: IP67-rated enclosure with wide operating temperature range supports reliable operation in harsh outdoor conditions.
Ideal Use Cases
- Outdoor stadiums and sports arenas
- Concert venues and large event spaces
- Transportation hubs and open public areas
- Smart city and municipal Wi-Fi deployments
- High-density campus outdoor networks
Technical Specifications
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
- Radio Configuration: 4 radios, 4x4 MIMO per radio
- Total Spatial Streams: 16
- Frequency Bands: 5 GHz and 6 GHz (subject to regional approval)
- Maximum PHY Rate: Up to 17.3 Gbps
- Ethernet Interfaces: 1x 10 Gbps, 1x 5 Gbps
- Power: IEEE 802.3bt PoE++
- Environmental Rating: IP67 outdoor rated
- Deployment Type: Outdoor wide-area, overhead mount
Deploy Wi-Fi 7 at Massive Scale
Build a resilient, future-ready outdoor wireless network with the FortiAP-HD-444KW. Order today.
