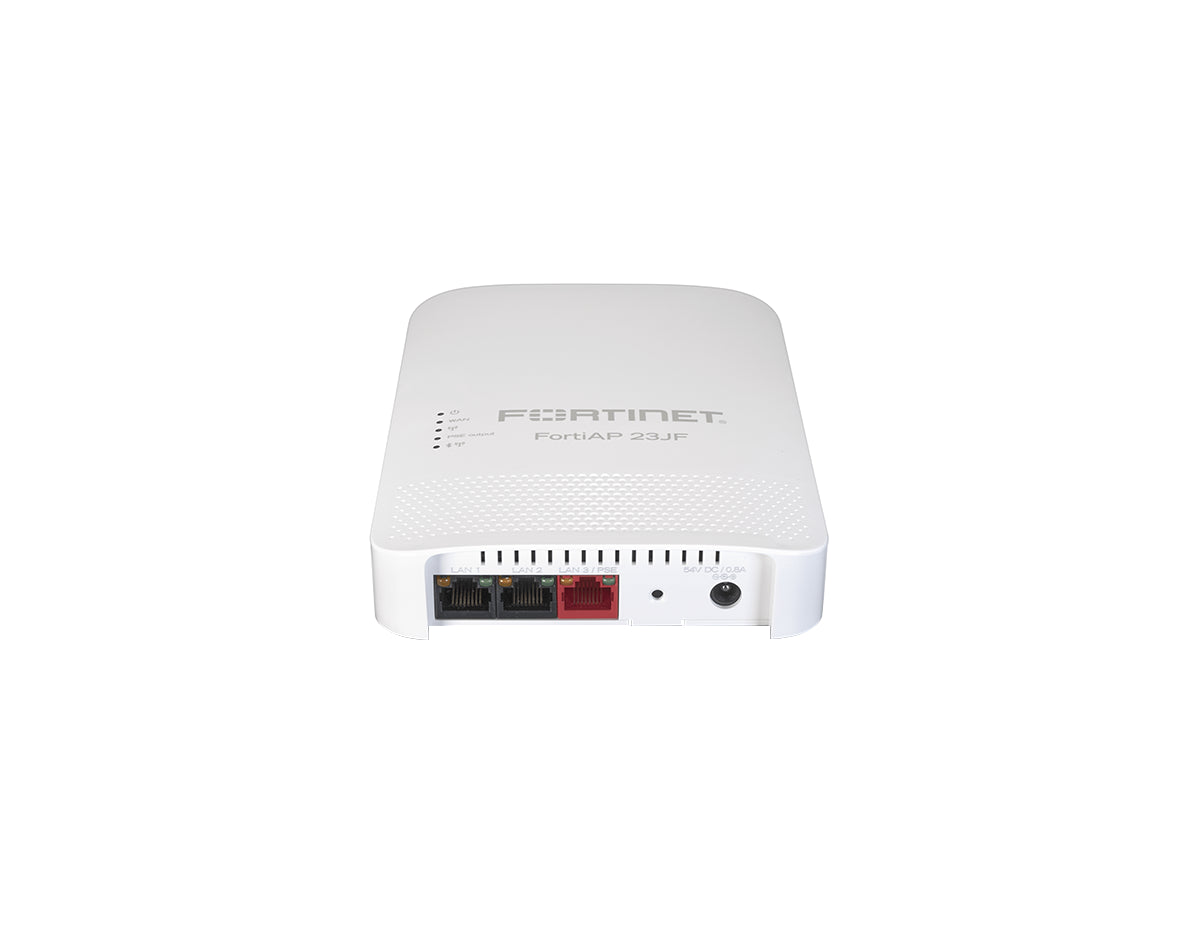

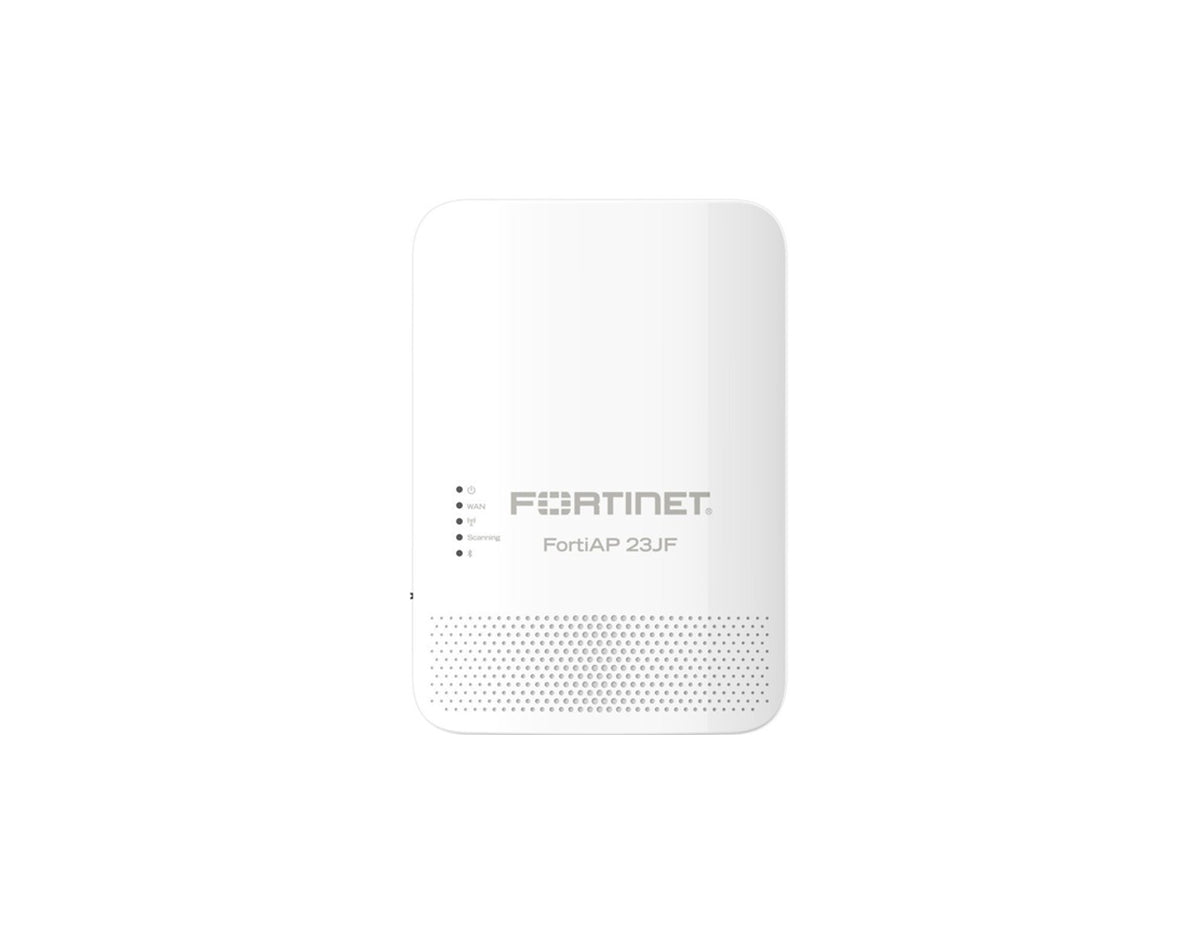

Fortinet FAP-23JF-A Wall Plate Wi-Fi 6 Access Point

Part Number: FAP-23JF-A

Technical Details

Wi-Fi 6 tri-radio architecture, 2x2 MU-MIMO performance, wall-plate design, PoE PD and PoE PSE support, four Gigabit Ethernet ports
$474.00
$403.00
15% OFF
You Save: $71.00
-
+
Product & Solutions Expert

Product & Solutions Expert

Enterprise Wi-Fi 6 Connectivity in a Discreet Wall Plate Design

The FortiAP-23JF is a compact Wi-Fi 6 wall plate access point designed for modern branch offices, hospitality environments, and micro-deployments where space, aesthetics, and performance matter. Built on a tri-radio 802.11ax architecture, it delivers reliable wireless coverage while also extending wired connectivity directly at the wall.

Fully integrated with FortiGate and FortiEdge Cloud management, the FortiAP-23JF enables centralized policy enforcement, secure onboarding, and simplified operations across distributed locations.

Key Benefits & Features

  • Tri-Radio Wi-Fi 6 Design: Dedicated 2.4 GHz and 5 GHz service radios with an additional scanning radio improve performance and RF visibility.
  • Wall Plate Form Factor: Ideal for hotel rooms, offices, and dormitories where ceiling mounts are not practical.
  • Integrated PoE PSE: One Gigabit Ethernet port provides 802.3af PoE output to power IP phones or other edge devices.
  • Multi-Port Gigabit Switching: Four RJ45 ports deliver high-speed wired access directly from the access point.
  • Bluetooth BLE Support: Enables location services, asset tracking, and IoT integration.

Ideal Use Cases

  • Hotels, serviced apartments, and hospitality rooms
  • Branch offices and remote micro-branches
  • Education dormitories and residential campuses
  • Healthcare and professional office environments
  • Secure SD-Branch and SASE deployments

Technical Specifications

  • Wireless Standard: IEEE 802.11ax Wi-Fi 6
  • Radio Architecture: Tri-radio with 2x2 MU-MIMO
  • Ethernet Ports: 4 × 10/100/1000 RJ45
  • PoE Support: 1 × 802.3at PoE PD input, 1 × 802.3af PoE PSE output
  • Bluetooth: Integrated BT / BLE radio
  • Console: RJ45 serial console port
  • Mounting: Wall plate mounting kit included
  • Power Options: 802.3at PoE injector or optional AC adapter
  • Region: Region Code A

Upgrade Your Wall-Mounted Wireless Today

Deploy secure, high-performance Wi-Fi exactly where users need it most. Order the FortiAP-23JF today and modernize your edge network with confidence.

Properties

Model FortiAP-23JF
SKU FAP-23JF-A
Product Type Wall Plate Access Point
Wireless Standard Wi-Fi 6 (802.11ax)
Radio Configuration Tri-radio
MIMO Technology 2x2 MU-MIMO
Supported Bands 802.11 b/g/n/ax and 802.11 a/n/ac/ax
Bluetooth BT / BLE
Ethernet Ports 4 x 10/100/1000 RJ45
PoE Input 1 x 802.3at PoE PD
PoE Output 1 x 802.3af PoE PSE
Non-PoE Ports 2 x Gigabit Ethernet
Console Port RJ45
Mounting Type Wall plate
Region Code A

Specifications

Internal Antennas Yes
Wireless Architecture Tri-radio design
PoE Standard Support IEEE 802.3at (PD), IEEE 802.3af (PSE)
Management FortiGate, FortiEdge Cloud, or SASE-managed
Deployment Type Indoor

Accessories

Included Accessories Wall plate mounting kit included in the box
Power Options 802.3at PoE injector GPI-130 or AC adapter SP-FAP23J-PA-10
Optional Accessories Desktop stand FAP-MNT-WJ-20
