High-Density Wireless Coverage with Precision Directionality

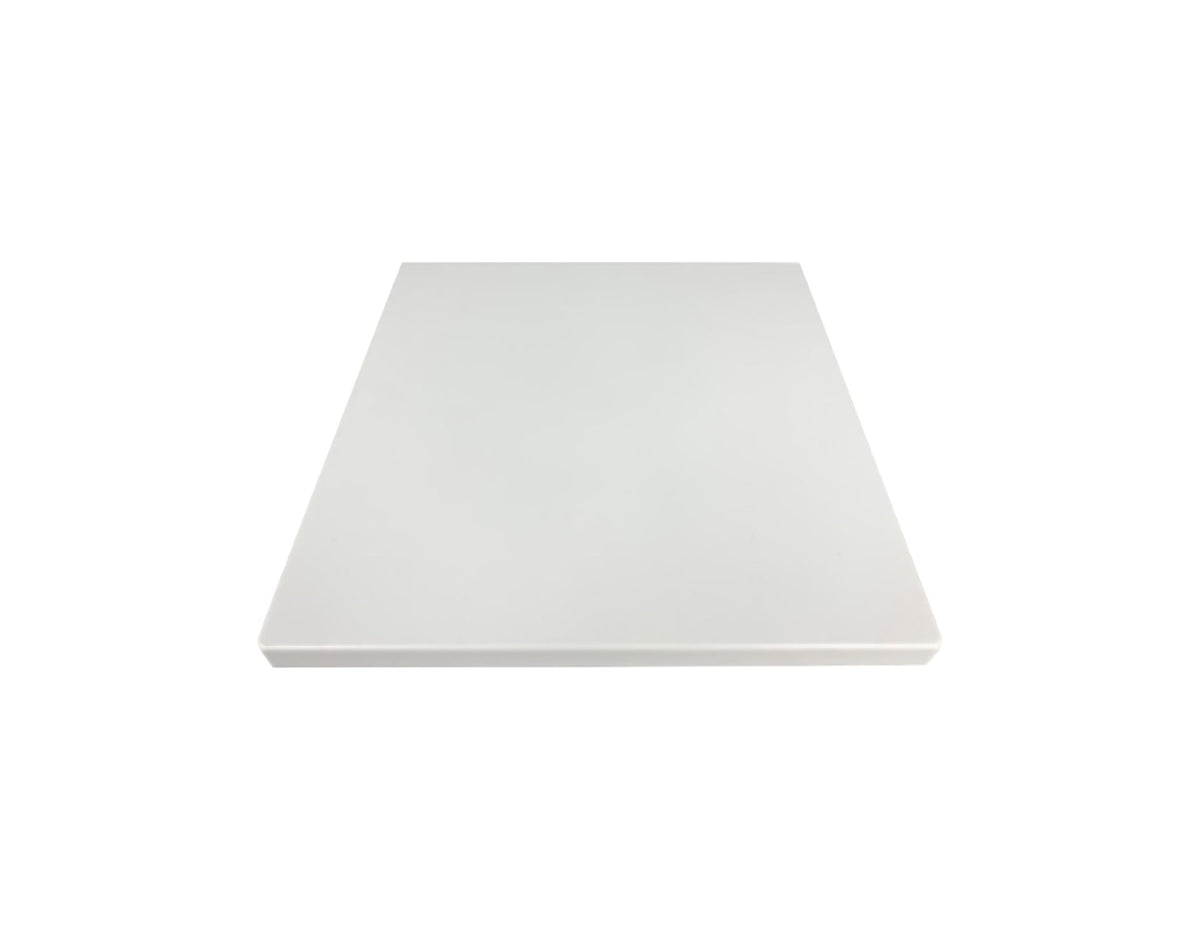

The Fortinet FANT-10ACAX-1213-D-N is a high-gain directional Wi-Fi antenna engineered for environments where coverage precision, signal strength, and interference control are critical. Designed to complement Fortinet FortiAP deployments, this antenna delivers focused RF performance across the 2.4 GHz and 5 GHz bands, making it ideal for dense client environments and long-range coverage scenarios.
With a narrow beam design and dual-band operation, the FANT-10ACAX-1213-D-N enhances signal reach while minimizing co-channel interference. Its rugged construction and articulating mount allow flexible installation in both indoor and outdoor environments, ensuring reliable wireless performance in demanding conditions.
Key Benefits & Features
- High-Gain Directional Performance: Delivers 12 dBi gain at 2.4 GHz and 13 dBi gain at 5 GHz for extended coverage and improved signal quality.
- Dual-Band Optimization: Supports 2.4–2.5 GHz and 5.1–5.9 GHz frequency ranges for modern enterprise Wi-Fi deployments.
- Multi-Port MIMO Support: Equipped with 10 dual-band N-Type connectors to support advanced multi-radio FortiAP configurations.
- Reduced Interference Design: Narrow beamwidth helps limit signal spillover and co-channel interference in high-density installations.
- Flexible Installation: Includes an articulating mount for precise wall or mast positioning indoors or outdoors.
Ideal Use Cases
- Warehouses and logistics centers
- Manufacturing and industrial facilities
- Large public venues and event spaces
- Campus and enterprise outdoor Wi-Fi coverage
- High-density FortiAP deployments
Technical Specifications
- Frequency Range: 2.4–2.5 GHz and 5.1–5.9 GHz
- Antenna Gain: 12 dBi (2.4 GHz), 13 dBi (5 GHz)
- Directivity: Directional
- VSWR: ≤ 2.0
- Connector Type: 10 × N-Type Male
- Impedance: 50 Ohms
- Ingress Protection: IP54
- Form Factor: Wall or mast mount
- Dimensions: 14.6 × 14.6 × 1.5 in (37.1 × 37.1 × 3.81 cm)
- Operating Temperature: −40°F to +140°F (−40°C to +60°C)
Strengthen Your Wireless Coverage Today
Deploy the Fortinet FANT-10ACAX-1213-D-N to achieve focused, high-performance Wi-Fi coverage where it matters most. Order now.
