Focused High-Gain Coverage for Demanding Wireless Environments

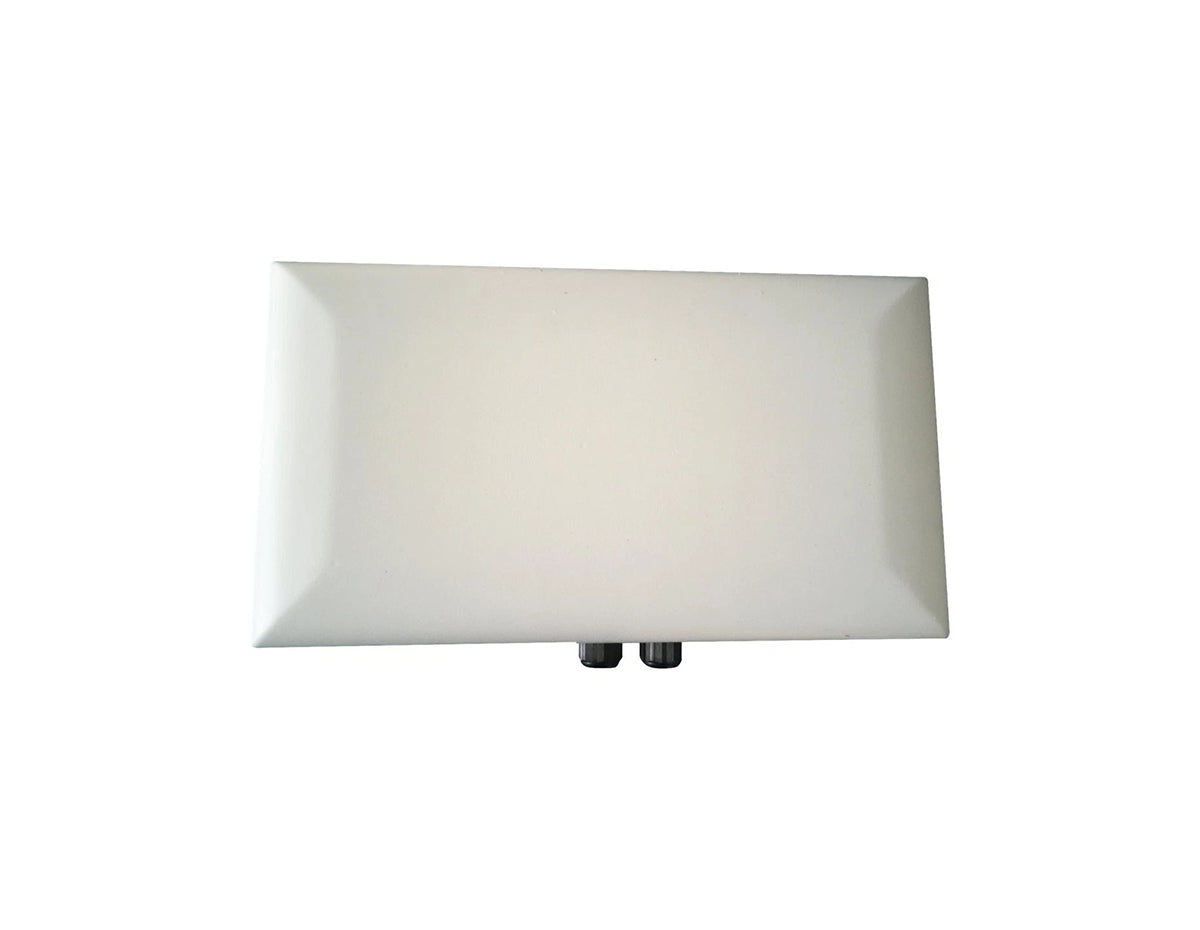

The Fortinet FANT-06ACAX-8509-D-N is a high-performance directional Wi-Fi antenna engineered for precise coverage in challenging indoor and outdoor environments. Designed to complement Fortinet access points, this antenna delivers focused signal strength where omnidirectional coverage is inefficient or insufficient.
With dual-band support and high-gain characteristics, the FANT-06ACAX-8509-D-N helps optimize wireless performance in warehouses, manufacturing floors, and large open facilities where interference control and signal reach are critical.
Key Benefits & Features
- High-Gain Directional Design: Provides 8.5 dBi gain at 2.4 GHz and 9 dBi at 5 GHz for targeted coverage and improved signal penetration.
- Dual-Band Wi-Fi Support: Operates across 2.4–2.5 GHz and 5.15–5.875 GHz to support modern Wi-Fi deployments.
- Six N-Type Connectors: Enables multi-stream MIMO configurations and seamless integration with compatible Fortinet access points.
- Industrial-Grade Construction: IP65 rated enclosure protects against dust and moisture in demanding indoor and outdoor installations.
- Interference Control: Directional beam pattern helps reduce co-channel interference in dense wireless environments.
Ideal Use Cases
- Warehouses and logistics centers requiring focused aisle coverage
- Manufacturing facilities with high RF interference
- Outdoor Wi-Fi deployments exposed to dust and moisture
- High-ceiling indoor environments needing directional signal control
- Enterprise Wi-Fi expansions using Fortinet access points
Technical Specifications
- Frequency Range: 2.4–2.5 GHz and 5.15–5.875 GHz
- Antenna Gain: 8.5 dBi at 2.4 GHz, 9 dBi at 5 GHz
- Polarization: Vertical
- Horizontal Beamwidth: 60° at 2.4 GHz, 65° at 5 GHz
- Vertical Beamwidth: 65° at 2.4 GHz, 70° at 5 GHz
- Connectors: 6 x N-Type Male
- Impedance: 50 ohm
- Ingress Protection: IP65
- Operating Temperature: -40°F to 149°F
- Deployment: Indoor and outdoor
Upgrade Wireless Precision Today
Enhance coverage accuracy and signal performance with the Fortinet FANT-06ACAX-8509-D-N. Order today.
