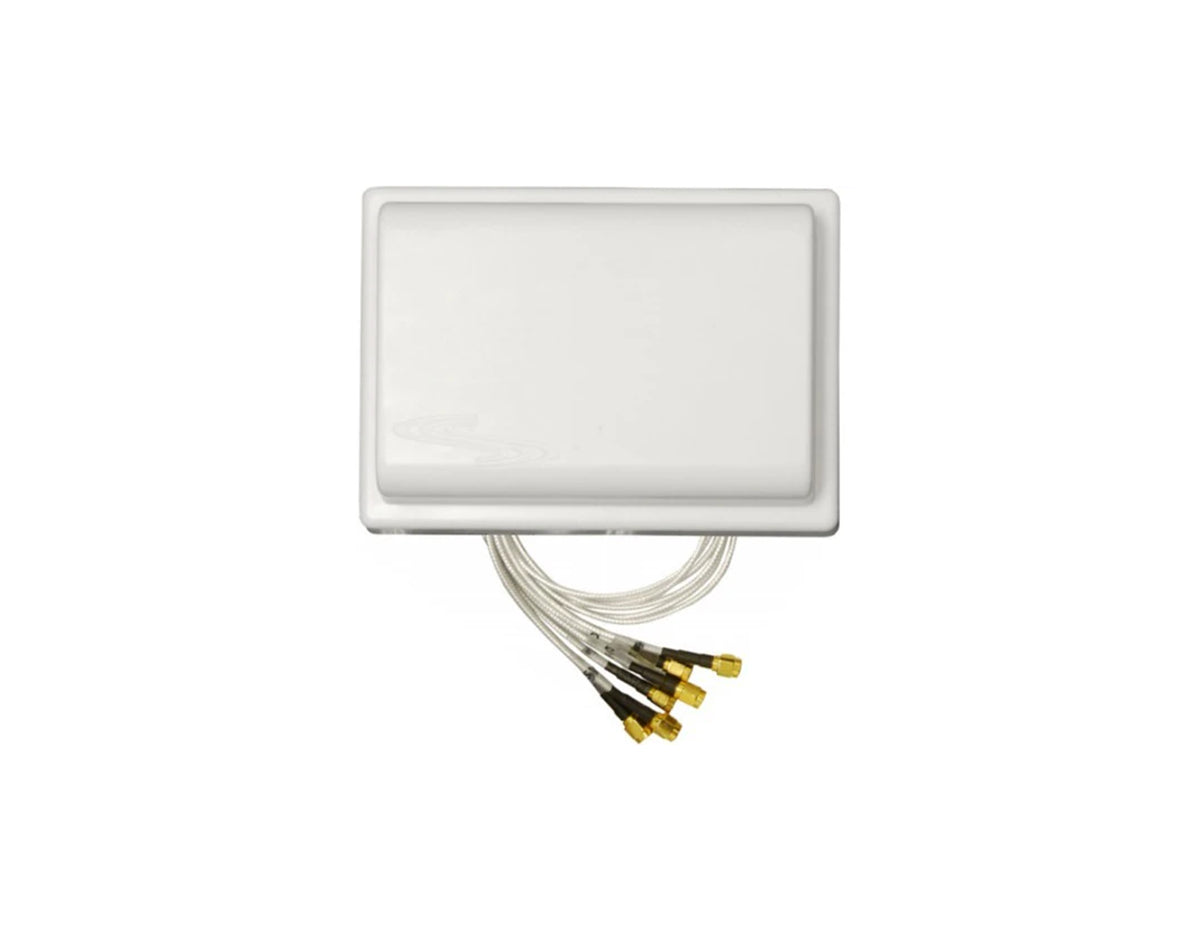

Fortinet FANT-06ABGN-2504-O-R Dual Band Ceiling Mount Omni Antenna

Part Number: FANT-06ABGN-2504-O-R

Technical Details

Dual-band 2.4 and 5 GHz support, 2.5 and 4 dBi gain, 6x RPSMA connectors, ceiling mount design, plenum rated enclosure
$340.00
$289.00
15% OFF
You Save: $51.00
-
+
Product & Solutions Expert

Product & Solutions Expert

Clean Ceiling Coverage for High-Performance Indoor WiFi

The Fortinet FANT-06ABGN-2504-O-R is a dual-band omnidirectional ceiling mount antenna engineered for indoor environments where appearance, signal consistency, and compliance matter. Designed to pair seamlessly with Fortinet FortiAP access points, it delivers balanced 360-degree coverage across both 2.4 GHz and 5 GHz bands while maintaining a low-profile, professional finish.

With six integrated dual-band pigtails and RPSMA male connectors, this antenna fully supports modern multi-stream MIMO deployments, making it ideal for enterprise offices, healthcare facilities, and commercial buildings requiring reliable wireless performance without visual clutter.

Key Benefits & Features

  • Dual-Band Omni Coverage: Operates across 2400–2483 MHz and 5150–5850 MHz to support legacy and high-throughput WiFi clients with uniform 360-degree signal distribution.
  • Optimized MIMO Support: Six dual-band antenna leads enable efficient multi-radio connectivity for FortiAP models requiring multiple RF chains.
  • Low-Profile Ceiling Design: Purpose-built for ceiling installations where aesthetics and discreet placement are critical.
  • Plenum Rated Construction: Certified for installation in air-handling spaces, ensuring compliance with commercial building standards.
  • Enterprise-Grade Reliability: Rated for up to 50 W input power with stable performance across a wide operating temperature range.

Ideal Use Cases

  • Corporate offices and enterprise campuses
  • Hospitals, clinics, and healthcare facilities
  • Hotels, conference centers, and meeting rooms
  • Retail spaces requiring clean ceiling aesthetics
  • Educational institutions and training centers

Technical Specifications

  • Frequency Range: 2400–2483 MHz and 5150–5850 MHz
  • Antenna Gain: 2.5 dBi at 2.4 GHz, 4 dBi at 5 GHz
  • Horizontal Beamwidth: 360 degrees
  • Vertical Beamwidth: 55 degrees at 2.4 GHz, 60 degrees at 5 GHz
  • Polarization: Vertical
  • Connectors: 6x RPSMA Male
  • Pigtail Length: 36 inches with connector
  • Mounting Type: Ceiling mount
  • Environment: Indoor, Plenum rated

Upgrade Your Indoor Wireless Coverage Today

Deploy clean, consistent WiFi coverage with Fortinet-grade reliability. Order the FANT-06ABGN-2504-O-R today.

Properties

Model FANT-06ABGN-2504-O-R
Product Type Ceiling Mount Omnidirectional Antenna
Frequency Range 2400–2483 MHz / 5150–5850 MHz
Gain 2.5 dBi (2.4 GHz) / 4 dBi (5 GHz)
Antenna Pattern Omnidirectional
Polarization Vertical
Number of Ports 6
Connector Type RPSMA Male
Pigtail Length 36 in. (91.44 cm) with connector
Environment Indoor – Plenum Rated
Mounting Method Ceiling Mount

Specifications

Bandwidth 83 MHz (2.4 GHz) / 700 MHz (5 GHz)
Vertical Beamwidth 55° (2.4 GHz) / 60° (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz & 5 GHz)
VSWR ≤ 2.0 (2.4 GHz) / ≤ 2.5 (5 GHz)
Nominal Impedance 50 Ohms
Maximum Input Power 50 Watts
Dimensions (L x W x H) 7.1 x 5.1 x 1.9 in. (18.03 x 12.95 x 4.83 cm)
Weight 0.68 lb (0.31 kg)
Operating Temperature -40°F to +158°F (-40°C to +70°C)
