Focused Wi Fi Coverage for High Density Outdoor Deployments

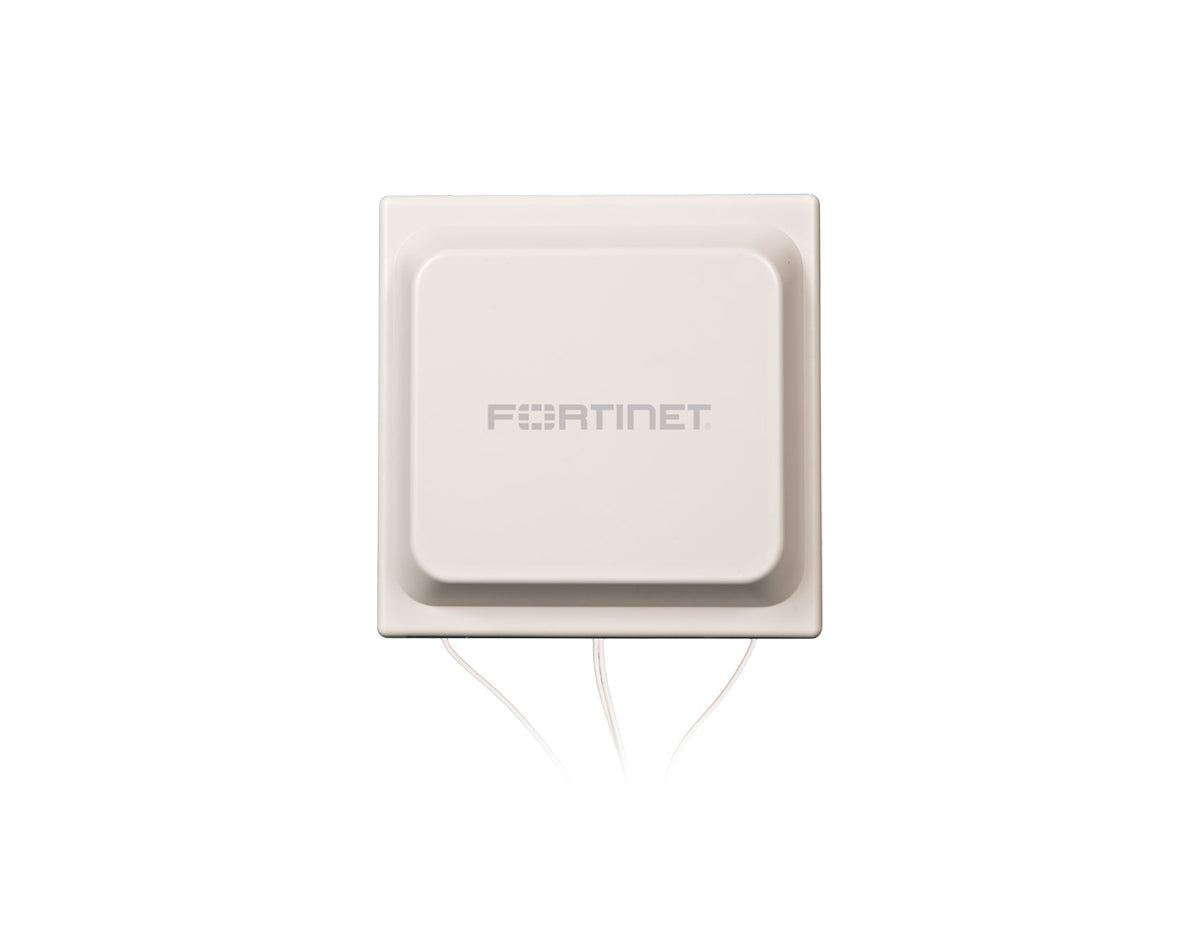

The Fortinet FANT-04ACAX-0606-D-R is a high performance dual band sector antenna designed to deliver controlled and reliable wireless coverage in outdoor and semi outdoor environments. Engineered for seamless compatibility with Fortinet FortiAP platforms, this antenna enables precise RF planning while minimizing co channel interference.
With its narrow 60 degree radiation pattern and integrated 4x4 MIMO architecture, the FANT-04ACAX-0606-D-R is ideal for targeted coverage areas where signal focus and stability are critical. It combines professional grade construction with optimized RF characteristics to support demanding enterprise Wi Fi deployments.
Key Benefits & Features
- Directional sector coverage: 60 degree beamwidth delivers focused signal distribution for aisles, perimeters, and controlled outdoor zones.
- 4x4 MIMO architecture: Supports modern Fortinet access points to improve throughput, reliability, and client capacity.
- Dual band performance: Operates across 2.4 to 2.5 GHz and 5.15 to 5.875 GHz within a single antenna radome.
- 6 dBi gain optimization: Balances coverage reach and signal clarity for medium range directional deployments.
- Professional mounting flexibility: Compatible with optional wall and pole mounting accessories for precise positioning.
Ideal Use Cases
- Outdoor enterprise Wi Fi coverage zones
- Warehouse aisles and logistics facilities
- Campus walkways and building perimeters
- Industrial environments requiring directional RF control
- High density areas where interference reduction is critical
Technical Specifications
- Product Model: FANT-04ACAX-0606-D-R
- Antenna Type: Directional sector panel antenna
- Frequency Range: 2.4 to 2.5 GHz and 5.15 to 5.875 GHz
- Antenna Gain: 6 dBi
- MIMO Configuration: 4x4
- Beamwidth: 60 degrees
- Connector Type: Four RP-SMA connectors
- Cable Length: 75 cm integrated leads
- Form Factor: Sector panel
- Deployment: Outdoor wireless data networks
Upgrade Your Wireless Coverage with Precision
Choose the Fortinet FANT-04ACAX-0606-D-R to achieve targeted, high efficiency Wi Fi coverage built for enterprise and industrial environments. Order today.
