Precision Wi-Fi Coverage for Demanding Environments

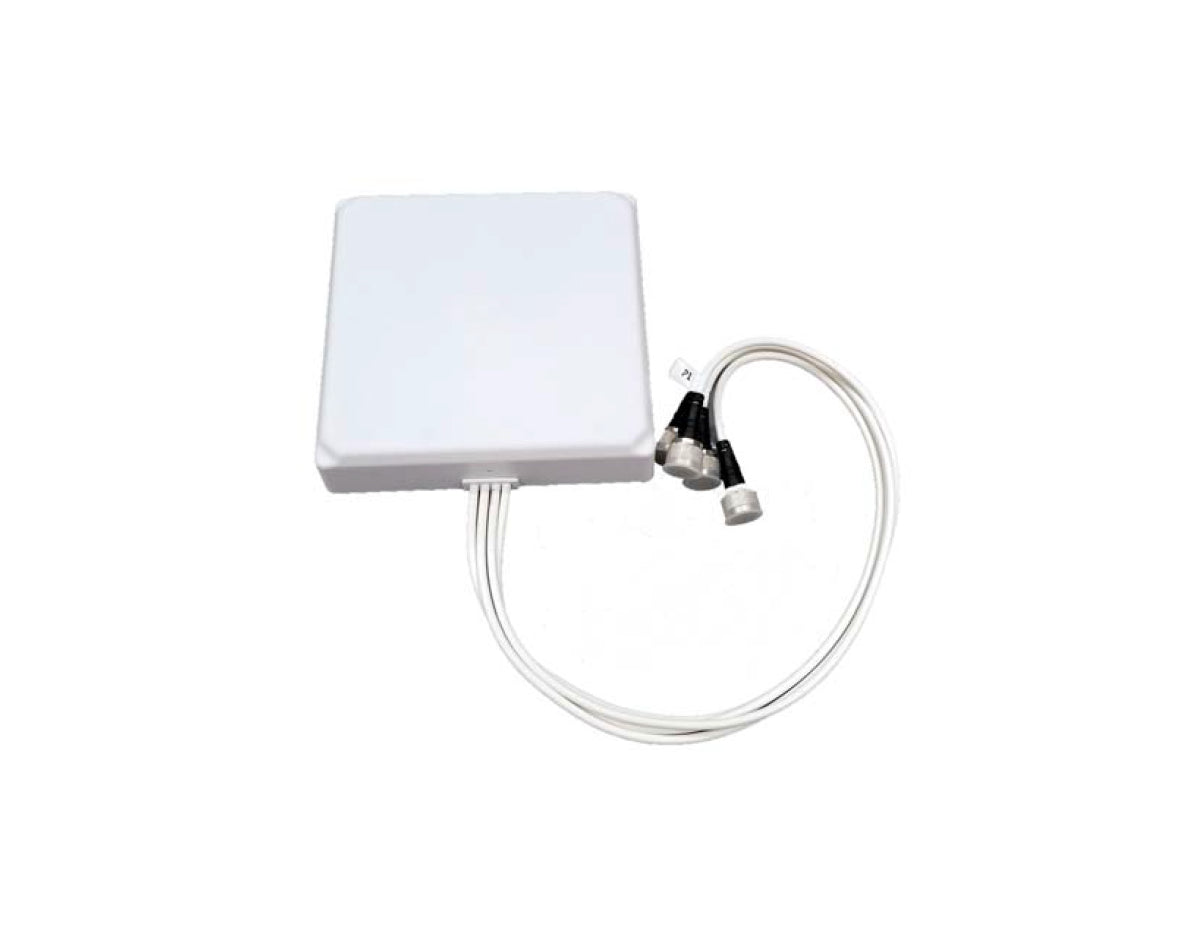

The Fortinet FANT-04ABGN-8065-P-N is a high-performance dual-band patch antenna engineered for controlled Wi-Fi coverage in challenging indoor and outdoor deployments. Designed to complement Fortinet FortiAP access points, this antenna delivers focused signal distribution that improves coverage efficiency while reducing interference in dense or industrial environments.
With optimized beamwidths and a dual-polarized design, the FANT-04ABGN-8065-P-N enables accurate RF planning for warehouses, manufacturing floors, and outdoor installations where predictable signal behavior is critical.
Key Benefits & Features
- Directional patch antenna design: Enables targeted Wi-Fi coverage, ideal for aisles, zones, and controlled coverage areas.
- Dual-band performance: Supports 2.4 GHz and 5 GHz bands with 8 dBi gain at 2.4 GHz and 6.5 dBi gain at 5 GHz for balanced coverage.
- Optimized beamwidth: Horizontal beamwidths of 60° and 65° with vertical beamwidths of 65° and 70° simplify RF coverage planning.
- Industrial-grade construction: IP66-rated enclosure protects against dust and moisture in demanding indoor or outdoor environments.
- Professional connectivity: Four N-Type male connectors with integrated pigtails support reliable multi-antenna access point configurations.
Ideal Use Cases
- Warehouses and logistics centers requiring focused aisle coverage
- Manufacturing facilities with controlled Wi-Fi zones
- Outdoor Wi-Fi deployments exposed to dust and moisture
- High-density enterprise wireless networks using FortiAP access points
- Installations where precise RF control and reduced co-channel interference are required
Technical Specifications
- Frequency range: 2.4–2.5 GHz and 5.1–5.9 GHz
- Antenna gain: 8 dBi at 2.4 GHz, 6.5 dBi at 5 GHz
- Antenna type: Directional patch
- Beamwidth (horizontal): 60° at 2.4 GHz, 65° at 5 GHz
- Beamwidth (vertical): 65° at 2.4 GHz, 70° at 5 GHz
- Connectors: 4 x N-Type male
- Impedance: 50 ohms
- Ingress protection: IP66 compliant
- Operating temperature: -40°F to 140°F (-40°C to 60°C)
- Dimensions: 7.5 x 7.5 x 1.5 inches
Deploy Smarter Wi-Fi Coverage Today
Enhance wireless performance with controlled coverage using the Fortinet FANT-04ABGN-8065-P-N. Order today and optimize your Wi-Fi deployment with confidence.
