High-Precision Directional Coverage for Demanding Wi-Fi Deployments

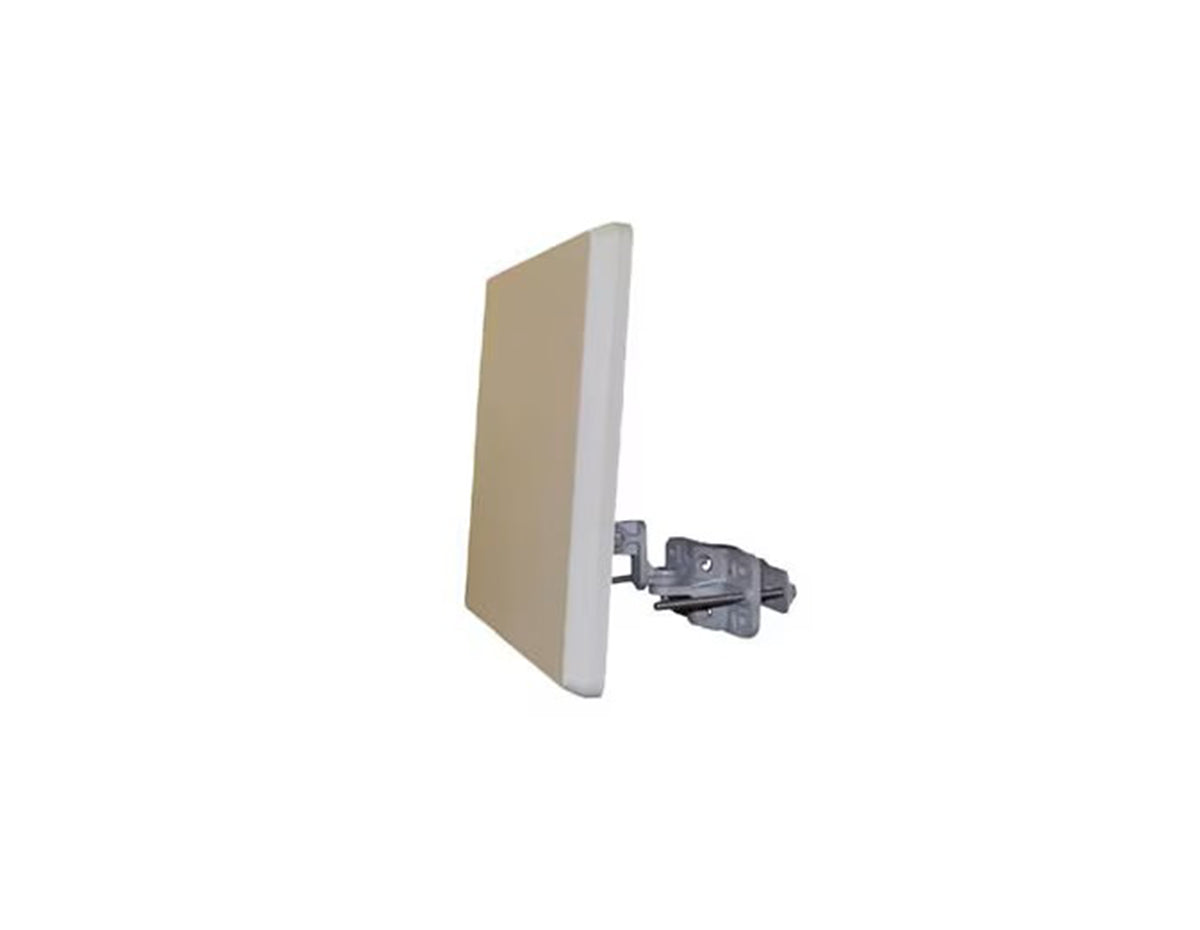

The Fortinet FANT-04ABGN-1414-P-N is a high-density, dual-band Wi-Fi patch antenna engineered for environments where controlled coverage and interference reduction are critical. Designed to operate across both 2.4 GHz and 5 GHz bands, this antenna delivers a powerful 14 dBi gain with a focused 35-degree beamwidth, making it ideal for targeted wireless coverage.
Built for compatibility with Fortinet FortiAP access points and other enterprise Wi-Fi platforms using N-Type connectors, this antenna enables precise RF planning in challenging indoor and outdoor environments such as warehouses, factories, and large industrial spaces.
Key Benefits & Features
- 14 dBi High-Gain Performance: Extends wireless reach while maintaining signal integrity in dense or reflective environments.
- Narrow 35° Beamwidth: Minimizes co-channel interference and enables accurate directional coverage planning.
- Dual-Band 2.4/5 GHz Support: Optimized for modern enterprise Wi-Fi networks requiring flexibility and performance.
- N-Type Female Connectors: Four rear-mounted connectors support professional-grade RF cabling and installations.
- Industrial-Grade Construction: Rated for indoor and outdoor use with wide operating temperature tolerance.
Ideal Use Cases
- Warehouse and logistics facility Wi-Fi coverage
- Manufacturing floors and industrial environments
- High-density enterprise wireless deployments
- Targeted aisle or zone-based coverage designs
- Outdoor point-to-area Wi-Fi extensions
Technical Specifications
- Frequency Range: 2400–2500 MHz and 5150–5850 MHz
- Antenna Gain: 14 dBi (2.4 GHz and 5 GHz)
- Beamwidth: 35° horizontal and vertical
- Polarization: Vertical / Linear
- Impedance: 50 Ohms
- Maximum Input Power: 50 W
- Connectors: Four N-Type female connectors
- Mounting Method: Mast mounting
- Dimensions: 14.96 × 14.96 × 1.3 inches
- Operating Temperature: -30°C to +70°C
Upgrade Your Wireless Coverage with Confidence
Engineer precise, high-performance Wi-Fi coverage with the Fortinet FANT-04ABGN-1414-P-N. Order today and optimize your wireless deployment with enterprise-grade accuracy.
