Targeted Dual-Band Coverage for Demanding Wireless Environments

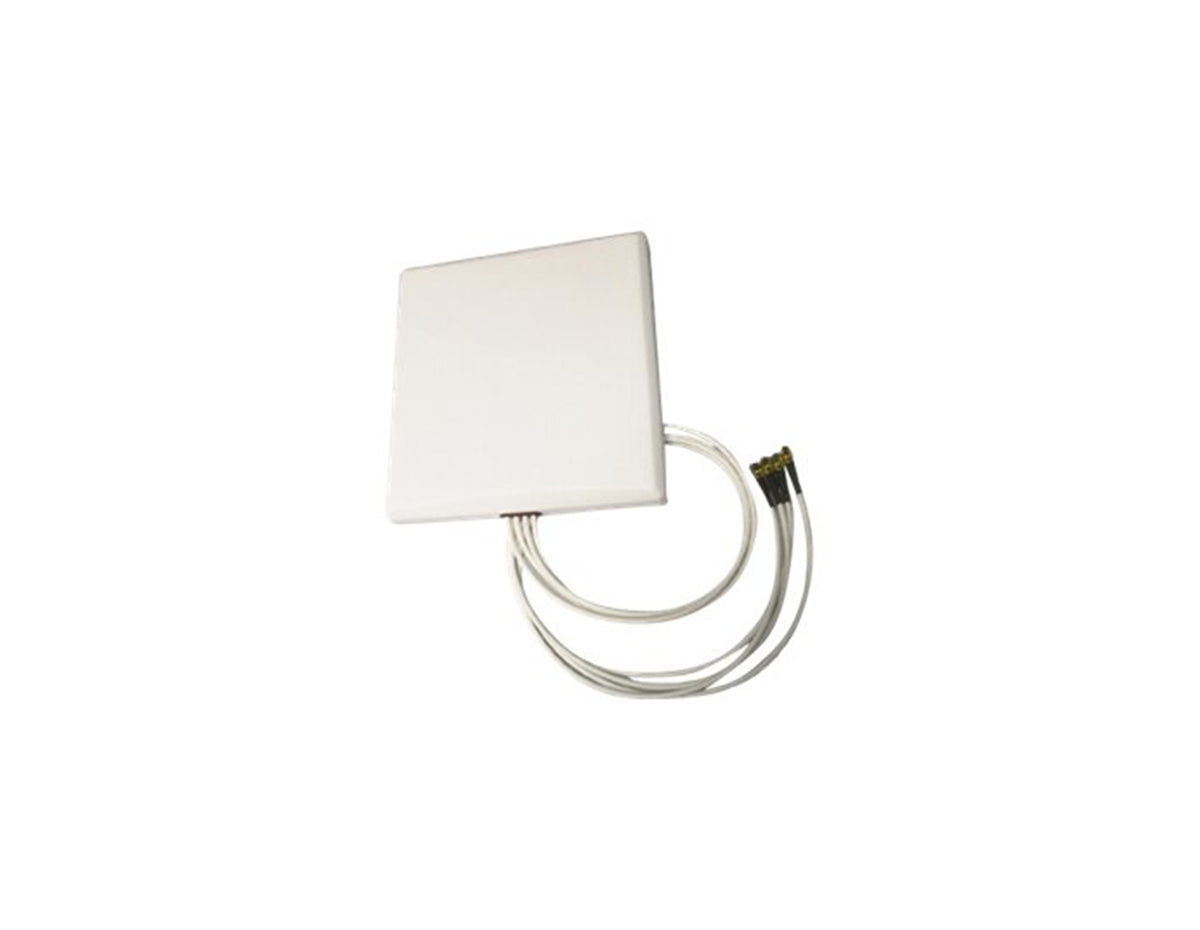

The Fortinet FANT-04ABGN-0606-P-R is a high-performance 6 dBi dual-band Wi-Fi patch antenna designed to deliver focused, reliable coverage in environments where signal control matters. Built for compatibility with Fortinet FortiAP platforms, this directional antenna helps optimize RF performance while minimizing co-channel interference in both indoor and outdoor deployments.
With a rugged design rated for harsh conditions and an included articulating mount, the FANT-04ABGN-0606-P-R allows precise antenna alignment for warehouses, manufacturing floors, and outdoor installations that demand consistent wireless coverage.
Key Benefits & Features
- Directional 6 dBi gain: Concentrates RF energy to extend coverage and improve signal quality in targeted areas.
- Dual-band operation: Supports both 2.4 GHz and 5 GHz frequencies for modern Wi-Fi deployments.
- Four RP-SMA connectors: Designed for multi-radio FortiAP access points with dual-band antenna leads.
- Indoor and outdoor rated: Built to withstand moisture, dust, and temperature extremes.
- Articulating mount included: Enables flexible wall or mast installation with precise positioning.
Ideal Use Cases
- Warehouses requiring focused aisle or zone coverage
- Manufacturing facilities with challenging RF conditions
- Outdoor Wi-Fi extensions for yards or loading areas
- High-interference environments needing controlled signal patterns
- Fortinet FortiAP deployments requiring directional antennas
Technical Specifications
- Frequency range: 2400–2500 MHz and 5150–5850 MHz
- Antenna gain: 6 dBi at 2.4 GHz and 5 GHz
- Directivity: Directional patch antenna
- Polarization: Vertical
- Connectors: 4 × RP-SMA male
- Pigtail length: 36 inches (91.44 cm)
- Impedance: 50 ohms
- Maximum power: 100 W
- Operating temperature: −40°F to +140°F (−40°C to +60°C)
- Mounting: Wall or mast/pole mounting
Upgrade Your Wireless Coverage with Confidence
Deploy the Fortinet FANT-04ABGN-0606-P-R to achieve precise, high-performance Wi-Fi coverage where it matters most. Order today.
