Consistent Omnidirectional Coverage for Demanding Environments

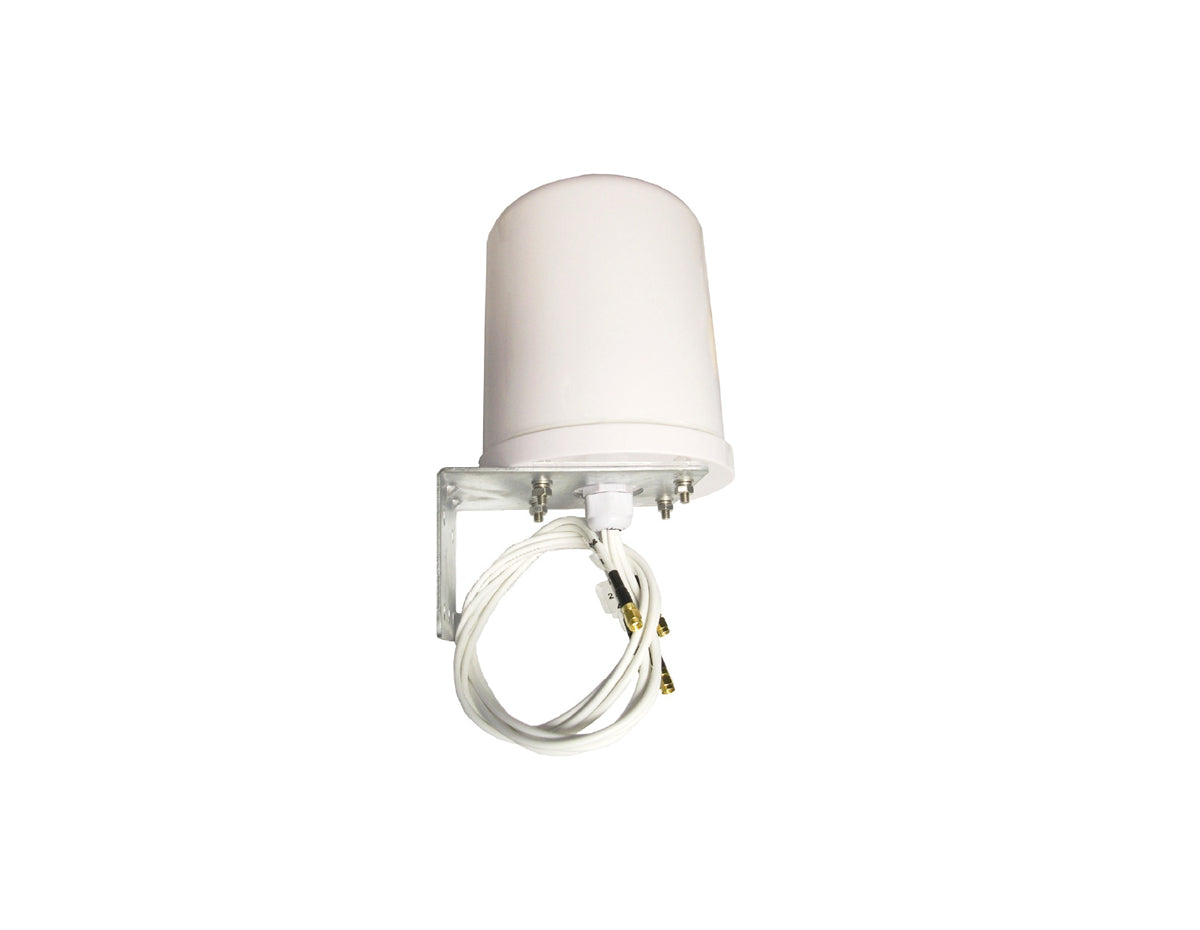

The Fortinet FANT-04ABGN-0606-O-R is a ruggedized dual band Wi-Fi omnidirectional antenna designed to extend and stabilize wireless coverage in challenging indoor and outdoor environments. Optimized for Fortinet FortiAP access points, this antenna delivers uniform 360 degree signal distribution while maintaining strong performance in areas exposed to dust, moisture, and temperature extremes.
With a 6 dBi gain across both 2.4 GHz and 5 GHz bands, the FANT-04ABGN-0606-O-R improves signal reach and reliability for warehouses, manufacturing floors, campuses, and outdoor installations where standard internal antennas fall short.
Key Benefits & Features
- 6 dBi Omnidirectional Gain: Enhances Wi-Fi coverage radius while maintaining even signal distribution across large open spaces.
- Dual Band Operation: Supports both 2.4 GHz and 5 GHz frequencies for modern enterprise wireless networks.
- Industrial Grade Design: Built to withstand harsh environments including dust, moisture, and wide temperature ranges.
- Four RP-SMA Connectors: Designed for multi-radio FortiAP deployments with flexible port mapping.
- Flexible Mounting Options: Includes L-bracket for mast or wall mounting to support diverse installation scenarios.
Ideal Use Cases
- Warehouses and logistics centers
- Manufacturing and industrial facilities
- Outdoor Wi-Fi coverage zones
- Large open indoor spaces
- Enterprise FortiAP deployments requiring external antennas
Technical Specifications
- Frequency Range: 2400–2500 MHz and 5150–5850 MHz
- Antenna Gain: 6 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 360 degrees
- Vertical Beamwidth: 20 degrees at 2.4 GHz, 45 degrees at 5 GHz
- Connectors: 4 × RP-SMA male
- Pigtail Length: 36 inches
- Operating Temperature: −40°F to 158°F (−40°C to 70°C)
- Mounting: Mast or wall mount with included L-bracket
