Precision Directional Coverage for High-Density Wi-Fi Deployments

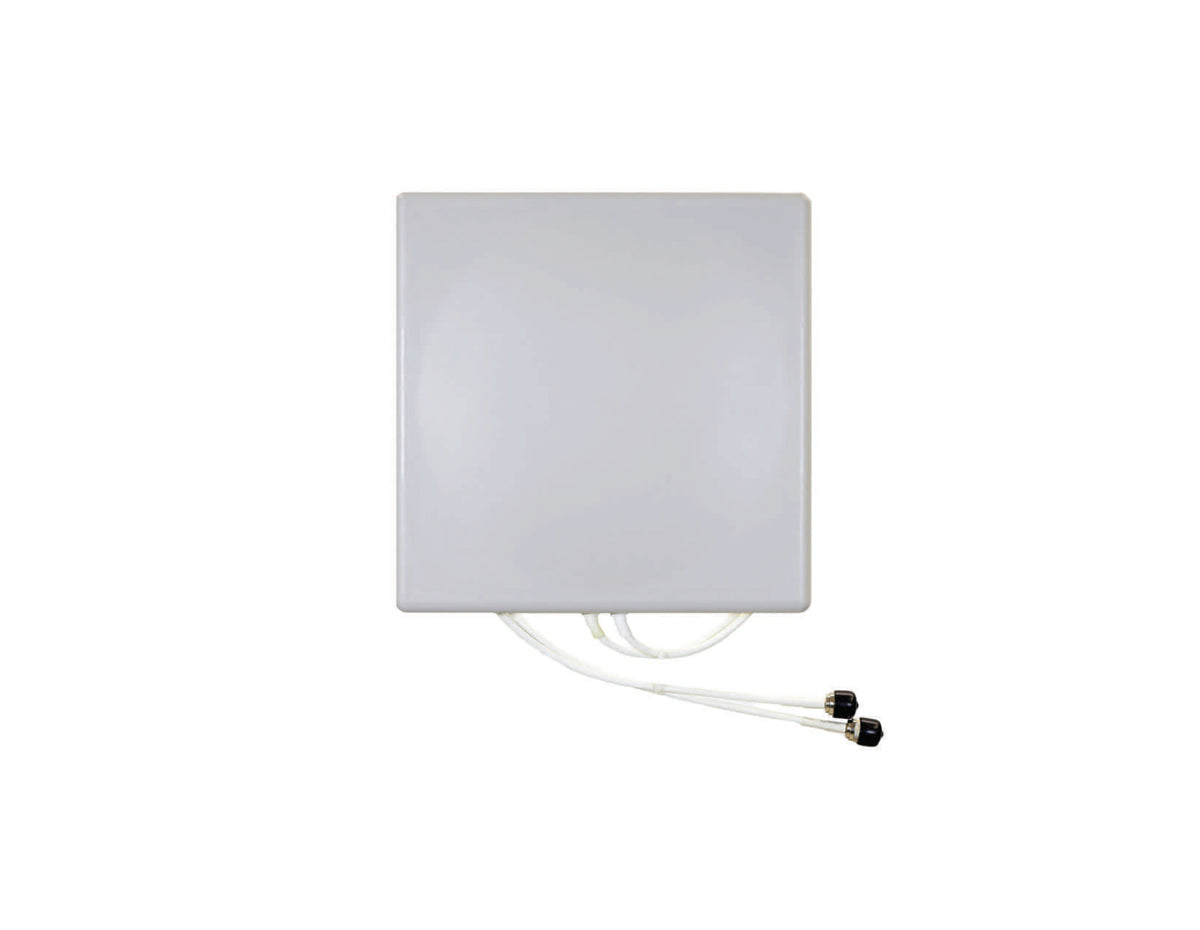

The Fortinet FANT-02ACAX-0606-P-R is a dual-band 6 dBi MIMO patch antenna engineered to deliver focused, reliable wireless coverage in demanding indoor and outdoor environments. Designed to pair seamlessly with Fortinet FortiAP access points, this low-profile antenna enables controlled signal direction to reduce interference and improve overall network efficiency.
With optimized beamwidths across both frequency bands, the FANT-02ACAX-0606-P-R is ideal for high-density installations where predictable coverage patterns and consistent performance are essential.
Key Benefits & Features
- Dual-Band Directional Design: Operates across 2.4 GHz and 5 GHz bands, delivering targeted signal distribution for optimized Wi-Fi planning.
- 6 dBi Gain for Focused Coverage: Balanced gain performance enhances signal reach while minimizing co-channel interference.
- MIMO-Optimized Architecture: Two RP-SMA connectors support 2x2 MIMO configurations for improved throughput and reliability.
- Low-Profile Patch Form Factor: Compact panel design integrates cleanly into professional environments without visual clutter.
- Indoor and Outdoor Rated: Built to withstand exposure in warehouses, manufacturing facilities, and covered outdoor deployments.
Ideal Use Cases
- Warehouse aisles and logistics facilities
- Manufacturing floors with controlled coverage zones
- Retail and shopping center corridors
- Campus buildings and high-density indoor spaces
- Targeted outdoor Wi-Fi coverage areas
Technical Specifications
- Frequency Range: 2.4–2.5 GHz, 5.1–5.9 GHz
- Antenna Gain: 6 dBi (2.4 GHz), 6 dBi (5 GHz)
- Beamwidth: Optimized Directional (Patch)
- Polarization: Linear
- Connector Type: 2x RP-SMA
- Maximum Input Power: 20 W
- Mounting: Mast or wall mount capable
- Operating Environment: Indoor and outdoor
Upgrade Your Wi-Fi Coverage with Confidence
Deploy precise, high-performance wireless coverage with the Fortinet FANT-02ACAX-0606-P-R. Order today.
