[accessories]
| Compatible Accessories | Eaton Environmental Monitoring Probe (EMP) Gen 2 (EMPDT1H1C2), supporting temperature, humidity and dry-contact monitoring; daisy-chainable up to 3 per host |
[/accessories]
Secure Gigabit UPS Connectivity and Control

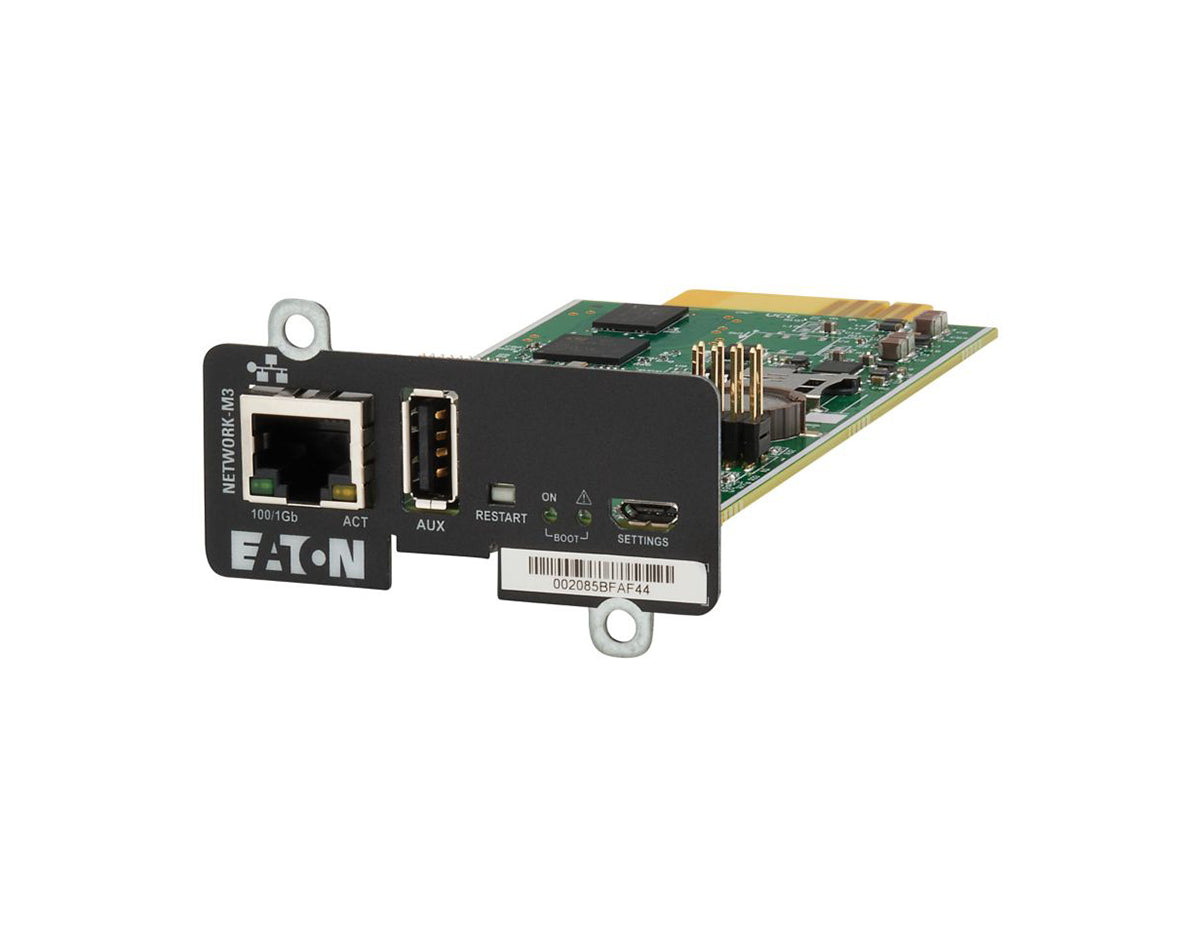

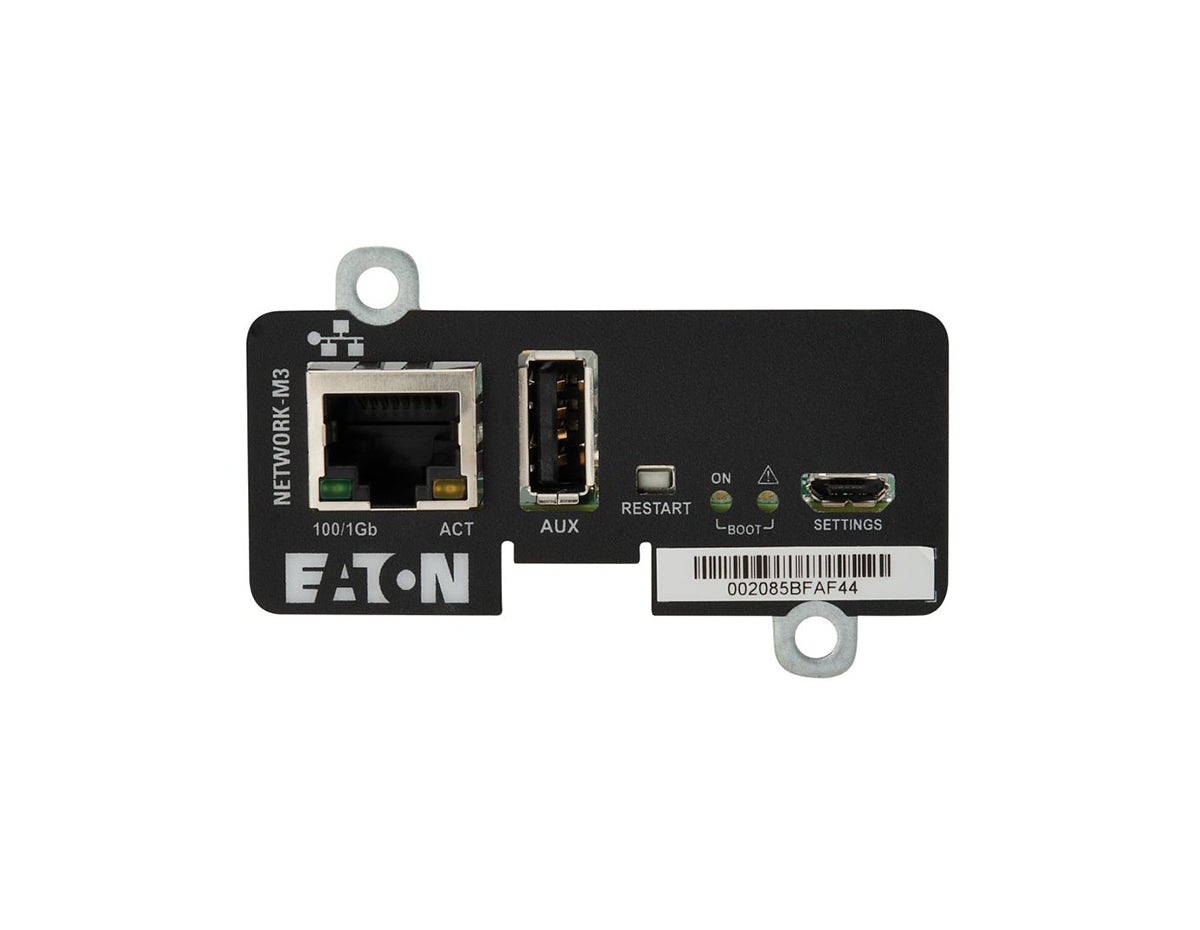

The Eaton Network-M3 Gigabit Network Card adds network-based monitoring, management, and control to compatible Eaton UPS and PDU systems. Built for medium-sized and enterprise IT environments, it combines Web/SNMP communications with a zero-trust architecture, user-configurable firewall, and hardware root of trust. Support for Eaton Brightlayer Data Centers software enables centralized visibility, remote response, and automated actions during power events.
Key Benefits and Features
- Zero-Trust Architecture: Supports secure boot and a complete chain of trust to reduce cybersecurity vulnerabilities.
- Zero-Touch Provisioning: Accelerates network card configuration across large-scale deployments.
- User-Configurable Firewall: Helps reduce the attackable surface area and address specific network or security requirements.
- REST API Support: Simplifies integration with native systems and automation of machine-to-machine interactions.
- Brightlayer Integration: Brightlayer Data Centers software can monitor card fleets and trigger actions such as graceful shutdown or virtual machine reallocation.
Ideal Use Cases
- Remote monitoring and control of compatible Eaton UPS systems.
- Enterprise and distributed IT power management deployments.
- Automated response workflows for power events and business continuity.
- Integration with network management, authentication, and logging services.
Technical Specifications
- Catalog Number: NETWORK-M3
- Function: Web/SNMP communications
- Hardware Compatibility: Eaton 5P, 5PX, 5PX G2, 5SC Rack, 9PX, 9PXM, 9SX, 9130, FERRUPS FX, 9E, 93PS with firmware 2.50 or later, 91PS, 91PS Monoblock, 93E 15-80 EMEA with firmware 8.00.01 or later, 93E G2 EMEA with firmware 4.0.20 or later; EATS115, EATS120 and EATS220 PDUs
- UPS Slot Type: Mini-slot
- Common Connectors: Ethernet 10/100/1000BaseT, USB for accessories, USB configuration port
- Network Compatibility: IPv4/IPv6, TLS 1.2, HTTP(S) 1.1, NTP, SMTP(S), BOOTP/DHCP, SSH, Syslog(S), LDAP, AD and RADIUS
- Protocol Support: HTTPS 1.1, MQTTS, TLS 1.2, SNMPv1, SNMPv3, NTP, SMTPS, BOOTP/DHCP, CLI, SSH, ARP and Syslog
- Power Input and Consumption: 5 V to 12 V; 500/1000 mA maximum depending on UPS
- Operating Environment: 32 to 104°F (0 to 40°C); 90% RH maximum without condensation
- Dimensions and Weight: 5.2 x 2.6 x 1.7 in. (132.08 x 66.04 x 43.18 mm); 2.3 oz. (65 g)
Deploy Secure Eaton UPS Network Management
Choose the Eaton Network-M3 to add Gigabit network connectivity, centralized power visibility, and automation capabilities to supported Eaton equipment. Confirm hardware and firmware compatibility for your UPS or PDU model before ordering.
