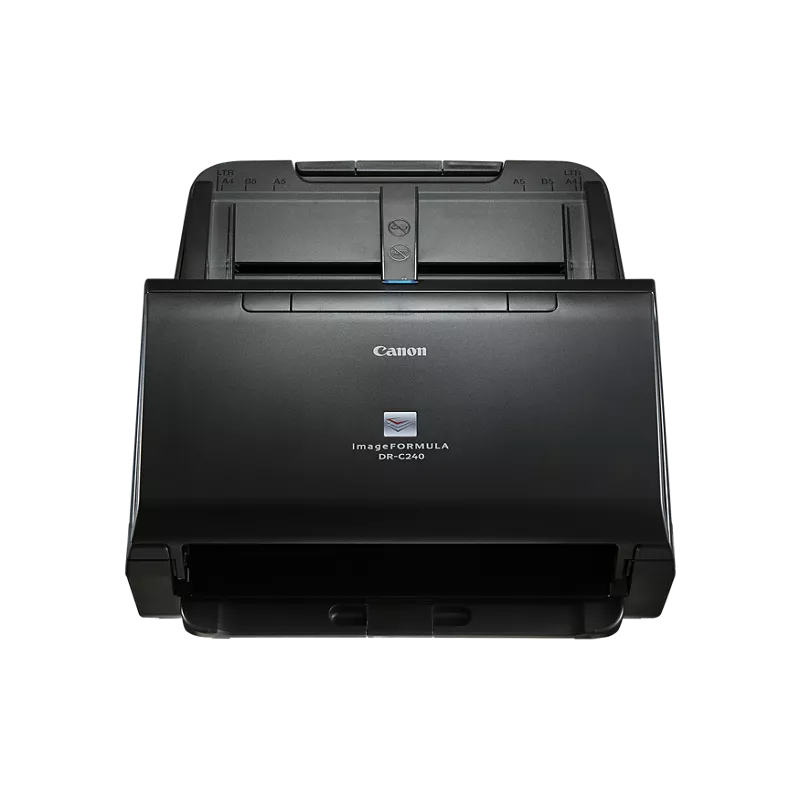

Canon imageFORMULA DR-C240 Desktop Duplex Document Scanner (DR-C240)

High-Volume Duplex Scanning in a Desktop Footprint

The Canon imageFORMULA DR-C240 (DR-C240) is a desktop sheet-fed document scanner that captures both sides of a page in a single pass at speeds up to 45 ppm / 90 ipm in black and white and 30 ppm / 60 ipm in colour. Equipped with a 60-sheet feeder and a suggested daily duty cycle of 3,500 to 6,000 scans, it supports departmental batch scanning operations. It handles media weights from 27 to 209 g/m², long documents up to 3,000 mm, business cards, plastic and embossed cards, and passports using a carrier sheet. Software integration is supported via ISIS/TWAIN drivers and Canon CaptureOnTouch software.

Key Benefits and Features

• Fast Duplex Throughput: Delivers single-pass duplex scanning speeds up to 90 ipm in black and white and 60 ipm in colour on A4 documents.
• Versatile Media Handling: Feeds paper weights from 27 to 209 g/m², plastic and embossed cards up to 1.4 mm thick, and passports up to 4 mm thick via a carrier sheet.
• Automated Batch Separation: Features batch separation using blank sheets or patch codes, combined with barcode and 2D code recognition.
• Reliable Paper Feeding: Double-feed detection with a double-feed release function.
• Advanced Image Processing: Incorporates automatic page size detection, deskew, colour correction, colour dropout, and blank page skipping.

Ideal Use Cases

• Departments and workgroups digitizing daily document batches
• Front offices and reception desks scanning documents, business cards, and plastic cards
• Document management capture workflows utilizing barcode or patch code batch separation
• Customer service desks scanning passports with a carrier sheet

Technical Specifications

• Type: Desktop sheet-fed document scanner
• Scanning Element: CMOS contact image sensor (CIS), 1-line, RGB LED light source
• Optical Resolution: 600 dpi
• Scanning Speed (A4): B&W 45 ppm / 90 ipm; colour 30 ppm / 60 ipm
• Feeder Capacity: 60 sheets (80 g/m²)
• Document Size: 50.8 to 216 mm wide, 54 to 356 mm long; long document mode up to 3,000 mm
• Interface: Hi-Speed USB 2.0
• Suggested Daily Duty Cycle: 3,500 to 6,000 scans/day
• Power Consumption: 19 W or less scanning, 1.4 W or less sleep
• Dimensions and Weight: 291 x 253 x 231 mm (trays closed), approx. 2.8 kg

Order the Canon imageFORMULA DR-C240 Document Scanner

Contact our technical sales team for pricing, availability, and volume orders of the Canon imageFORMULA DR-C240 (DR-C240) document scanner.
