MIKROTIK CRS504-4XQ-OUT SWITCH
| Model: | CRS504-4XQ-OUT |
| Detail: | Ultra-fast 100 Gigabit QSFP28 Ports, IP66 Weatherproof Enclosure, Silent, Fanless Operation, Dual Boot System (RouterOS or SwOS), Power Redundancy (DC jack, 2-pin terminal, 802.3bt PoE-in), Outdoor, |
| Price: | $735.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

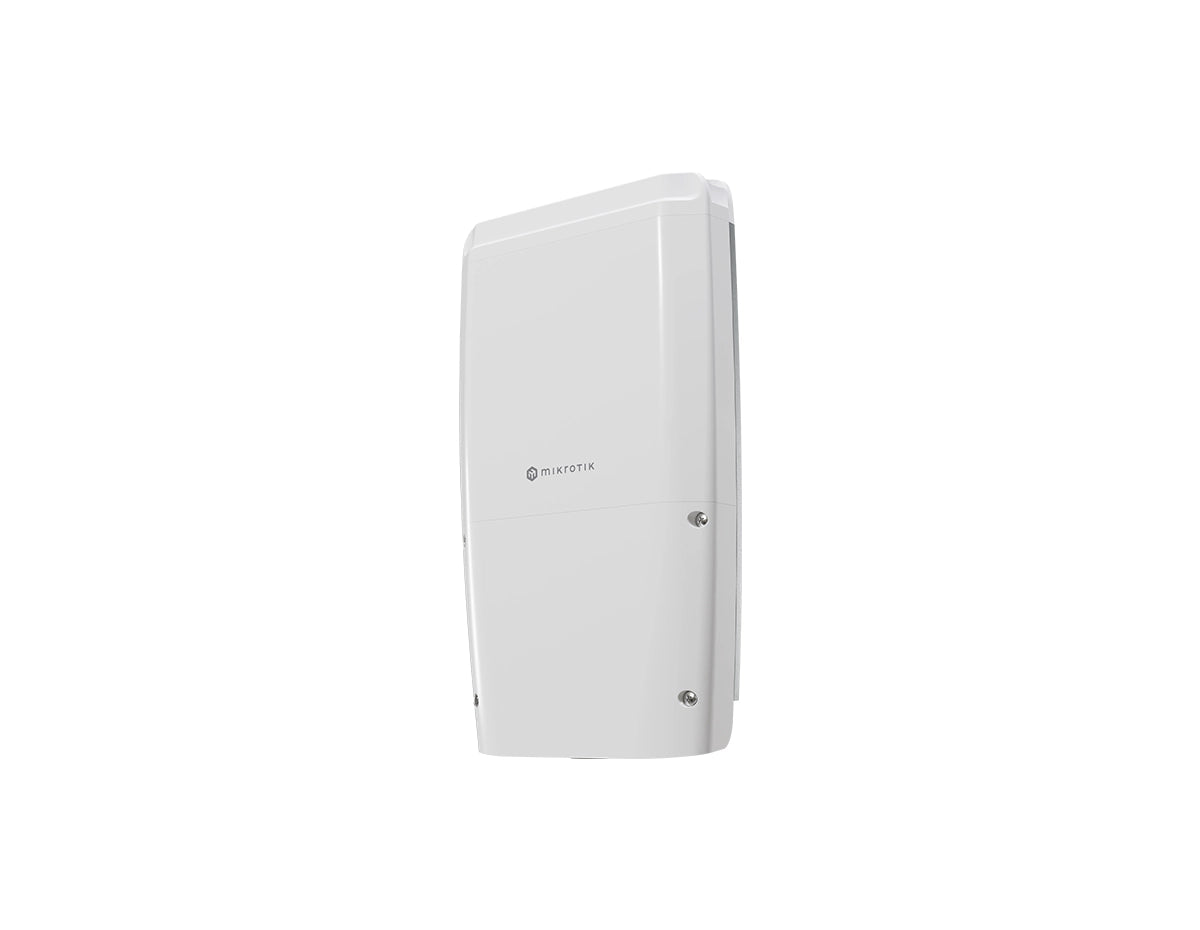

MikroTik CRS504-4XQ-OUT Switch
The MikroTik CRS504-4XQ-OUT switch offers 100 Gigabit connectivity suitable for outdoor environments, catering to both remote and urban settings. This high-speed connectivity is essential for industries requiring fast data transfers for real-time monitoring and video conferencing. It is housed in a durable IP66-rated weatherproof enclosure, the switch is impervious to dust and capable of withstanding strong jets of water from any direction. It is well-suited for use in extreme heat or heavy rain, ensuring a stable connection.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- 4x 100G QSFP28 uplink ports
- QCA9531, 1 core, 650MHz
- 128MB RAM
Please see the related tabs for the CRS504-4XQ-OUT datasheet and compatible accessories.
Accessories
| Accessories | |
| 48 V 0.95 A power adapter | |
| Hose clamp 2 | |
| Screw set | |
| Gigabit PoE injector | |
| Fastening set | |
Specifications
| Specifications | CRS504-4XQ-OUT |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9531 650 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX4310 |
| OS | RouterOS (v7 only) |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP66 |
Properties
| Properties | MikroTik CRS504-4XQ-OUT |
| Description | Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100 Ethernet ports | 1 |
| 100G QSFP+ | 4 |
| Serial console port | 1 RJ45 |
| Extras | CPU temperature monitor PCB temperature monitor Voltage Monitor |
| Dimensions | 320 x 185 x 44 mm |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 36-57 V |
| 2-pin terminal input Voltage | 36-57 V |
| Frequency (Hz) | 47-63 |
| Max power consumption | 41 W |
| Max power consumption without attachments | 25 W |
| Cooling type | 2 fans |
| PoE in input Voltage | 43-57 V Passive poe or 802.3bt Class 6 |
