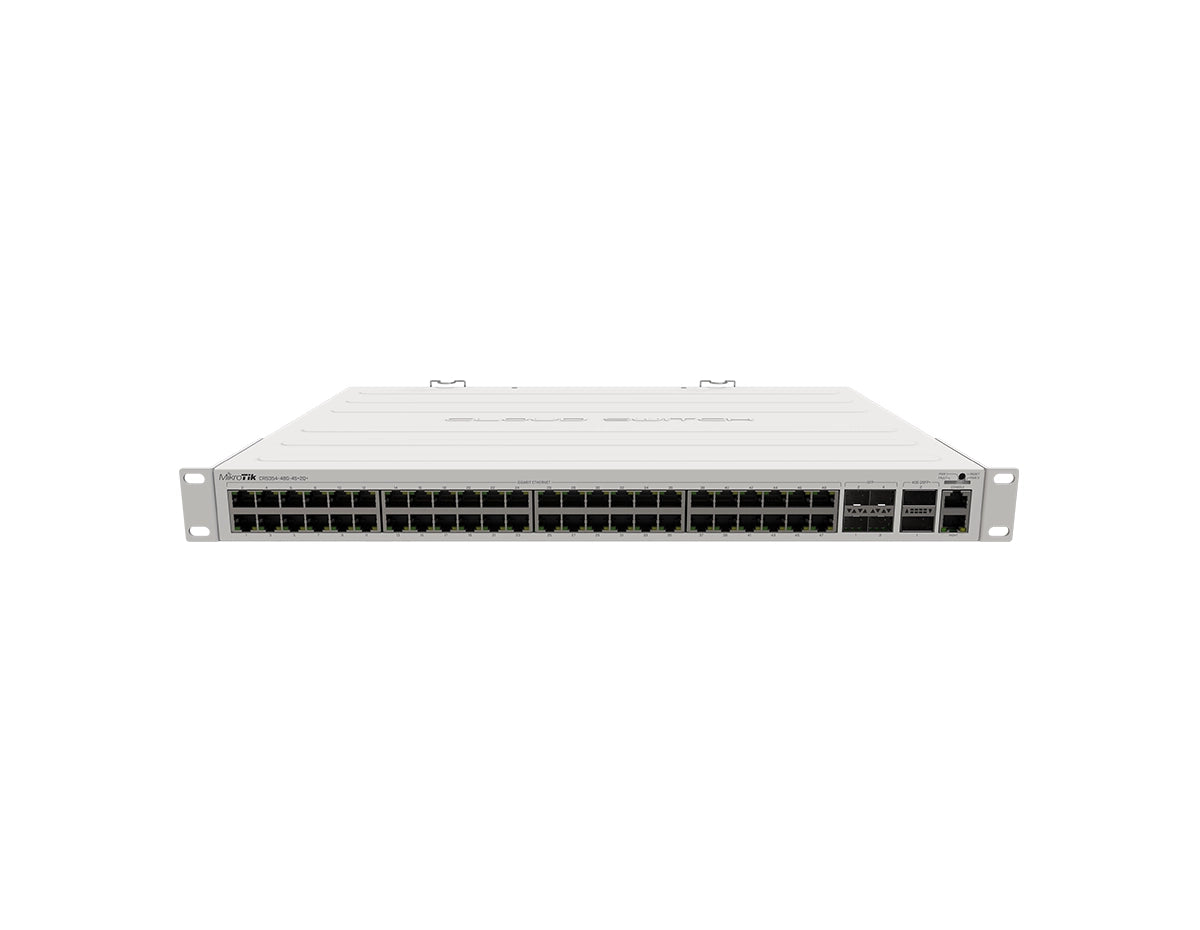

MIKROTIK CRS354-48G-4S+2Q+RM SWITCH
| Model: | CRS354-48G-4S-2Q-RM |
| Detail: |
|
| List Price: | |
| Price: | $494.00 |
| You Save: | $5.00 (1% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar get more features while spending way less! < This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Accessories
| Accessories |
| 2x IEC cords |
| Cable managment brackets |
| Rackmount ears (CRS354) |
| K-48 fastening set |
Specifications
| Specifications | CRS354-48G-4S+2Q+RM |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9531 650 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX3257 |
| OS | RouterOS / SwitchOS |
| Non-blocking throughput | 168 Gbps |
| Switching capacity | 336 Gbps |
| Forwarding rate | 235 Mpps |
| Ethernet test results | |
| Bridging | |
| 64 byte | |
| none (fast path) | kpps: 119,8 Mbps: 61,3 |
| 25 bridge filter rules | kpps: 44,9 Mbps: 23 |
| 512 byte | |
| none (fast path) | kpps: 58,5 Mbps: 239,6 |
| 25 bridge filter rules | kpps: 42,9 Mbps: 175,7 |
| 1518 byte | |
| none (fast path) | kpps: 34,9 Mbps: 423,8 |
| 25 bridge filter rules | kpps: 26,5 Mbps: 321,8 |
| Routing | |
| 64 byte | |
| none (fast path) | kpps: 116,8 Mbps: 59,8 |
| 25 simple queues | kpps: 57,5 Mbps: 29,4 |
| 25 ip filter rules | kpps: 31,4 Mbps: 16,1 |
| 512 byte | |
| none (fast path) | kpps: 61,8 Mbps: 253,1 |
| 25 simple queues | kpps: 46,8 Mbps: 191,7 |
| 25 ip filter rules | kpps: 30,1 Mbps: 123,3 |
| 1518 byte | |
| none (fast path) | kpps: 35,4 Mbps: 429,9 |
| 25 simple queues | kpps: 33,7 Mbps: 409,3 |
| 25 ip filter rules | kpps: 23,7 Mbps: 287,8 |
| Switching results | |
| 64 byte | |
| Non blocking Layer 2 throughput | kpps: 235114,7 Gbps: 120,379 |
| Non blocking Layer 2 capacity | kpps: 235114,7 Gbps: 240,758 |
| Non blocking Layer 1 throughput | kpps: 235114,7 Gbps: 120,379 |
| Non blocking Layer 1 capacity | kpps: 235114,7 Gbps: 240,758 |
| 512 byte | |
| Non blocking Layer 2 throughput | kpps: 38533,8 Gbps: 157,834 |
| Non blocking Layer 2 capacity | kpps: 38533,8 Gbps: 315,669 |
| Non blocking Layer 1 throughput | kpps: 38533,8 Gbps: 168 |
| Non blocking Layer 1 capacity | kpps: 38533,8 Gbps: 336 |
| 1518 byte | |
| Non blocking Layer 2 throughput | kpps: 13329 Gbps: 161,867 |
| Non blocking Layer 2 capacity | kpps: 13329 Gbps: 323,735 |
| Non blocking Layer 1 throughput | kpps: 13329 Gbps: 168 |
| Non blocking Layer 1 capacity | kpps: 13329 Gbps: 336 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -20°C to 60°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Properties
| Properties | MikroTik CRS354-48G-4S+2Q+RM |
| Description | Cloud Router Switch with 48 Gigabit Ethernet ports, four SFP+ ports and two QSFP+ ports in a 1U rackmount case. Includes SwOS/RouterOS dual boot and passive PoE output on port 1. |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
| SFP+ | 4 |
| 40G QSFP+ | 2 |
| Serial console port | 1 RJ45 |
| Extras | CPU temperature monitor PCB temperature monitor Voltage Monitor |
| Dimensions | 297 x 443 x 44 mm |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| Max power consumption without attachments | 50 W |
| Cooling type | 3 fans |
