MIKROTIK CRS317-1G-16S+RM SWITCH
| Model: | CRS317-1G-16S-RM |
| Detail: |
|
| Price: | $415.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

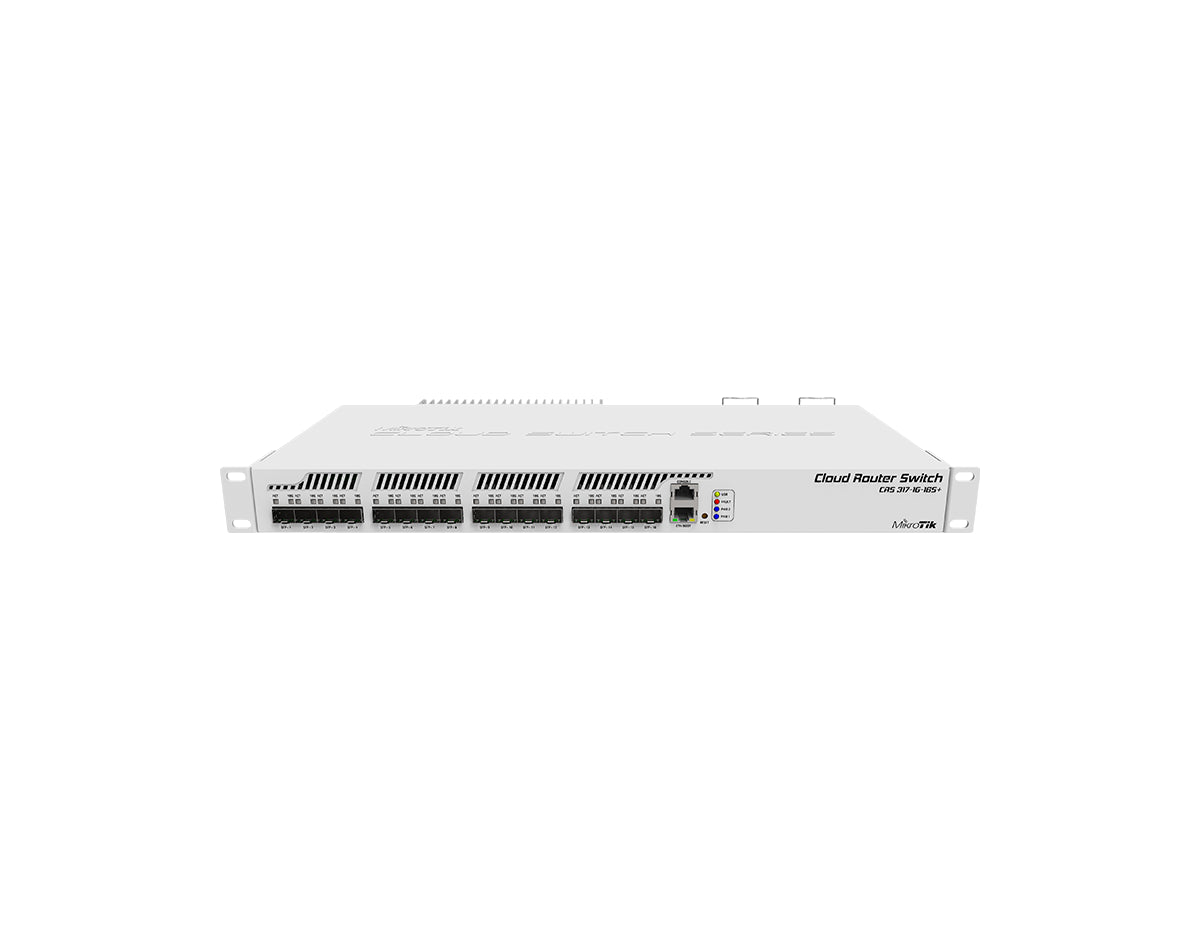

MikroTik CRS317-1G-16S+RM Switch
The CRS 317-1G-16S+RM is a rack-mountable switch that can be managed and includes Layer 3 capabilities. It is equipped with 16 SFP+ ports to facilitate high-performance 10GbE connectivity, along with a 1GbE copper port designated for management purposes. This device has dual redundant power supplies, which is common in harsh environments such as data centers and medical facilities. Its dependability is enhanced by the presence of two independent power sources. If one source fails, the second ensures the system continues functioning normally.
Quick Specs:
- 1x 10/100/1000 Gigabit Ethernet ports
- 16x 10G SFP+ ports uplink
- Non-blocking Layer 2 switching capacity
- Boot option for SwOS or RouterOS
Please see the related tabs for the CRS317-1G-16S+RM datasheet and compatible accessories.
Accessories
| Accessories |
| K10 screw kit |
| Rack ears |
| 2x IEC cords |
Specifications
| Specifications | CRS317-1G-16S+RM |
| Memory | 1 GB |
| Flash Storage size | 16 MB |
| CPU | 98DX8216 800 MHz |
| CPU core count | 2 |
| Switch chip model | 98DX8216 |
| OS | RouterOS / SwitchOS |
| Ethernet test results | |
| Bridging | |
| 64 byte | |
| none (fast path) | kpps: 355.2 Mbps: 181.9 |
| 25 bridge filter rules | kpps: 98 Mbps: 50.2 |
| 512 byte | |
| none (fast path) | kpps: 361.2 Mbps: 1479.5 |
| 25 bridge filter rules | kpps: 98.6 Mbps: 403.9 |
| 1518 byte | |
| none (fast path) | kpps: 268.3 Mbps: 3258.2 |
| 25 bridge filter rules | kpps: 98.4 Mbps: 1195.0 |
| Routing | |
| 64 byte | |
| none (fast path) | kpps: 315.4 Mbps: 161.5 |
| 25 simple queues | kpps: 104.6 Mbps: 53.6 |
| 25 ip filter rules | kpps: 103.9 Mbps: 53.2 |
| 512 byte | |
| none (fast path) | kpps: 309.8 Mbps: 1268.9 |
| 25 simple queues | kpps: 104.4 Mbps: 427.6 |
| 25 ip filter rules | kpps: 103.4 Mbps: 423.5 |
| 1518 byte | |
| none (fast path) | kpps: 254.4 Mbps: 3089.4 |
| 25 simple queues | kpps: 104.6 Mbps: 1270.3 |
| 25 ip filter rules | kpps: 104.6 Mbps: 1270.3 |
| Switching results | |
| 64 byte | |
| Non blocking Layer 2 throughput | kpps: 239,583.3 Mbps: 122,666.7 |
| Non blocking Layer 2 capacity | kpps: 239,583.3 Mbps: 245,333.3 |
| Non blocking Layer 1 throughput | kpps: 239,583.3 Mbps: 161,000.0 |
| Non blocking Layer 1 capacity | kpps: 239,583.3 Mbps: 322,000.0 |
| 512 byte | |
| Non blocking Layer 2 throughput | kpps: 37,828.9 Mbps: 154,947.4 |
| Non blocking Layer 2 capacity | kpps: 37,828.9 Mbps: 309,894.7 |
| Non blocking Layer 1 throughput | kpps: 37,828.9 Mbps: 161,000.0 |
| Non blocking Layer 1 capacity | kpps: 37,828.9 Mbps: 322,000.0 |
| 1518 byte | |
| Non blocking Layer 2 throughput | kpps: 13,085.2 Mbps: 158,906.4 |
| Non blocking Layer 2 capacity | kpps: 13,085.2 Mbps: 317,812.7 |
| Non blocking Layer 1 throughput | kpps: 13,085.2 Mbps: 161,000.0 |
| Non blocking Layer 1 capacity | kpps: 13,085.2 Mbps: 322,000.0 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -20°C to 60°C tested |
| Certification | CE, EAC, ROHS |
Properties
| Properties | MikroTik CRS317-1G-16S+RM |
| Description | Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Quick Features | Boot option for SwOS or RouterOS Non-blocking Layer 2 switching capacity 128K host table IEEE 802.1Q VLAN Supports up to 4K simultaneous VLANs Port isolation and Port security MSTP HW MPLS forwarding SFP 1.25 and SFP+ 10Gbit module support 800 MHz dual core CPU Dual power supplies Broadcast storm control Port mirroring of ingress/egress traffic Rapid Spanning Tree Protocol (RSTP) Link Aggregation (LACP) Access Control List MikroTik neighbour discovery SNMP v2/v3 Rackmount and tabletop Supports -20 to +60 C ambient temperatures Passive cooling with automatic fan for high temperatures |
| Ports | |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ | 16 (supports both 1.25 Gb SFP and 10 Gb SFP+ modules; modules are not included), DDMI support |
| Serial port | 1 RJ45 |
| Extras | CPU temperature monitor Beeper |
| Dimensions | 443 x 224 x 44 mm |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 44 W |
| Cooling type | 2 fans |
