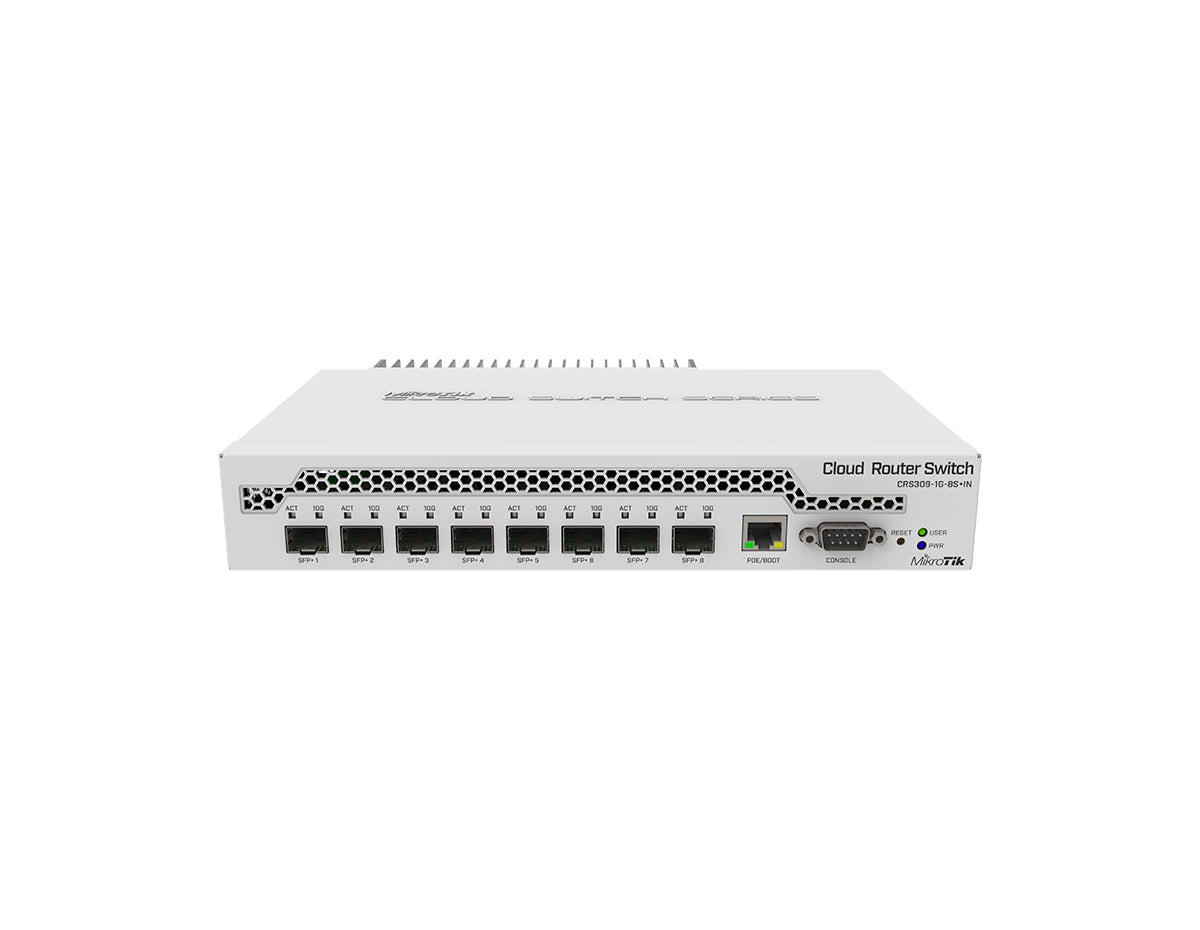

Mikrotik CRS309-1G-8S+IN Switch

Name: Mikrotik CRS309-1G-8S+IN Switch
Brand: Mikrotik
Price: 240.00 USD
Availability: OutOfStock

Part Number: CRS309-1G-8S-IN

Technical Details

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

$240.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik CRS309-1G-8S+IN Switch

The CRS309-1G-8S+IN is a highly efficient networking switch with a small form factor. It is equipped with eight SFP+ slots, allowing for the installation of 10 Gbit modules in each slot. This configuration enables a total switching capacity of 162 Gbps and a non-blocking throughput of 81 Gbps. The device is equipped with a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal, and supports dual boot functionality, allowing users to select their preferred operating system between RouterOS and SwOS.

Quick Specs:

1 Gigabit Ethernet ports
8x 10G SFP ports
Passive PoE and 802.3 af/at compliant

Please see the related tabs for the CRS309-1G-8S+ datasheet and compatible accessories.

Properties

Properties	MikroTik CRS309-1G-8S+IN
Description	Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
Product Family	CRS Series
Product Type	Ethernet Switch
Ports
10/100/1000 Ethernet ports	1
10G SFP+ ports	8
Serial port	RS232
Extras	CPU temperature monitor, Beeper
Dimensions	272 x 191 x 44 mm
PoE in	Yes, Passive POE and 802.3af/at compliant
Number of DC inputs	1
DC jack input Voltage	12 - 57 V
Cooling type	Passive
Max power consumption	23 W / 17 W (without attachemnts)
PoE in input Voltage	18-57 V

Specifications

Specifications	CRS309-1G-8S+IN
Memory	512 MB
Flash Storage size	16 MB
CPU	98DX3236 800 MHz
CPU core count	2
Switch chip model	98DX8208
OS	RouterOS / SwitchOS
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

Accessories

Power adapter 24 V 1.2 A

Screw kit

Rack ears
