Mikrotik CRS305-1G-4S+IN Switch

Name: Mikrotik CRS305-1G-4S+IN Switch
Brand: Mikrotik
SKU: CRS305-1G-4S+IN-NEW
Price: 143.00 USD
Availability: InStock

Part Number: CRS305-1G-4S-IN

Technical Details

Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports

$178.75

$143.00

20% OFF

You Save: $35.75

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

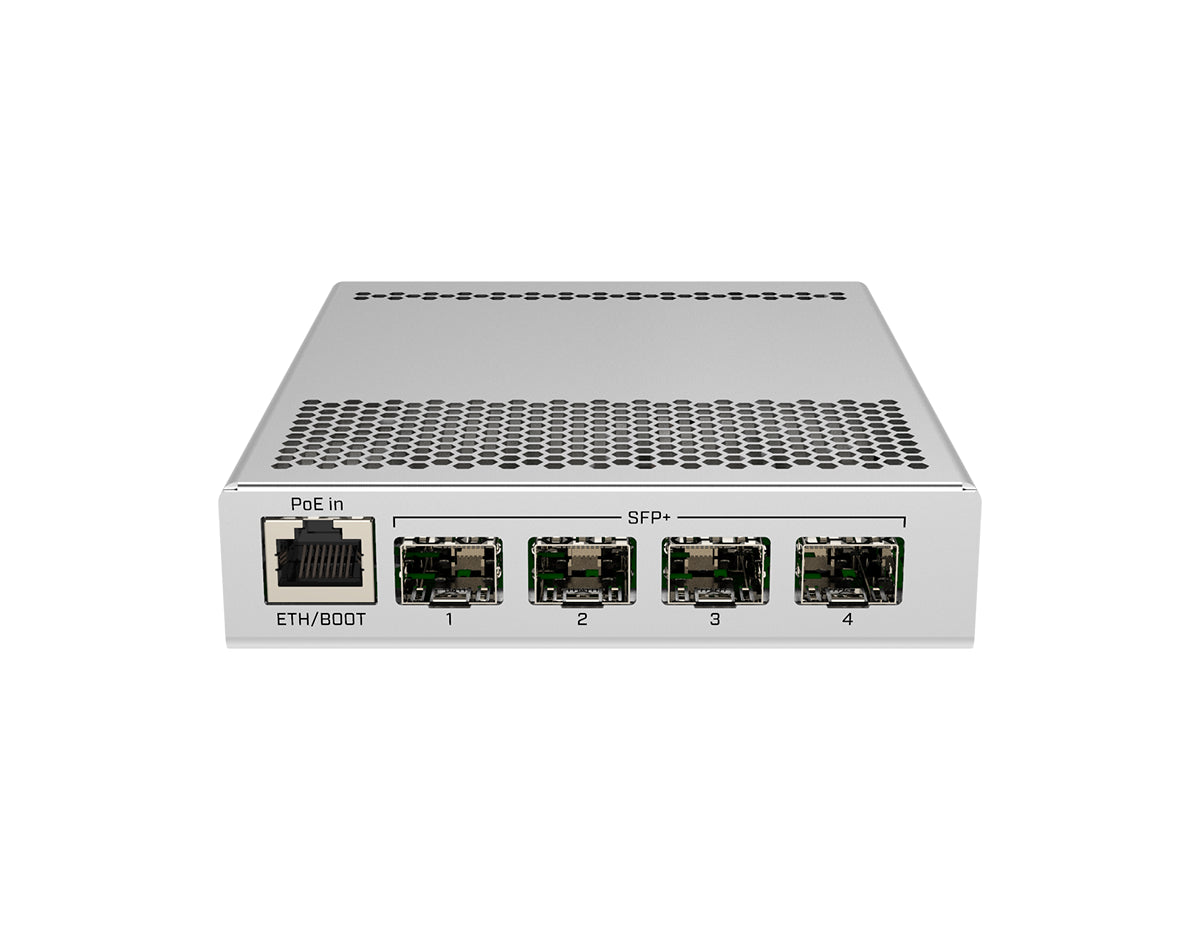

MikroTik CRS305-1G-4S+IN Switch

The CRS305-1G-4S+IN enhances your ability to connect, facilitating smooth data transmission and effective network administration. Its dependable construction guarantees continuous functionality, reducing downtime and enhancing network reliability. The device is housed in a sleek and compact metallic case, operating silently without any fans. Additionally, it offers a "Dual boot" feature, enabling users to select between two operating systems - RouterOS or SwOS.

Quick Specs:

1x 10/100/1000 Ethernet ports
4 SFP+ ports uplink
Non-blocking throughput: 41 Gbps
Switching capacity: 82 Gbps

Please see the related tabs for the CRS305-1G-4S+IN datasheet and compatible accessories.

Properties

Properties	MikroTik CRS305-1G-4S+IN
Description	Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports
Product Family	CRS Series
Product Type	Ethernet Switch
Quick specifications	4 SFP+ ports 1 Gigabit Ethernet ports Non-Blocking throughput: 41 Gbps Switching capacity: 82 Gbps Forwarding rate: 61 Mpps 2 DC jack for redundancy Maximum power consumption: 12 W (with attachments 18 W) Supports PoE+ IEEE 802.3at/af and passive PoE 12-57 V Metal enclosure Fanless
Ports
10/100/1000 Ethernet ports	1
SFP+ cages	4
PoE in	802.3af/at
Extras	CPU temperature monitor
Dimensions	141 x 115 x 28 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Cooling type	Passive
Max power consumption	12 W
PoE in input Voltage	12-57 V
Power options	8-28V, 24V 1.2A PSU included

Specifications

Specifications	CRS305-1G-4S+IN
Memory	512 MB
Flash Storage size	16 MB
CPU	98DX3236 800 MHz
CPU core count	1
Switch chip model	98DX3236
OS	SwOS / RouterOS (Dual boot)
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

Accessories

24V 0.8A power adapter
